Home >> Daewoo >> 1999 >> Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Instrument Panel Bulb >> Testing and Inspection

Instrument Panel Bulb: Testing and Inspection

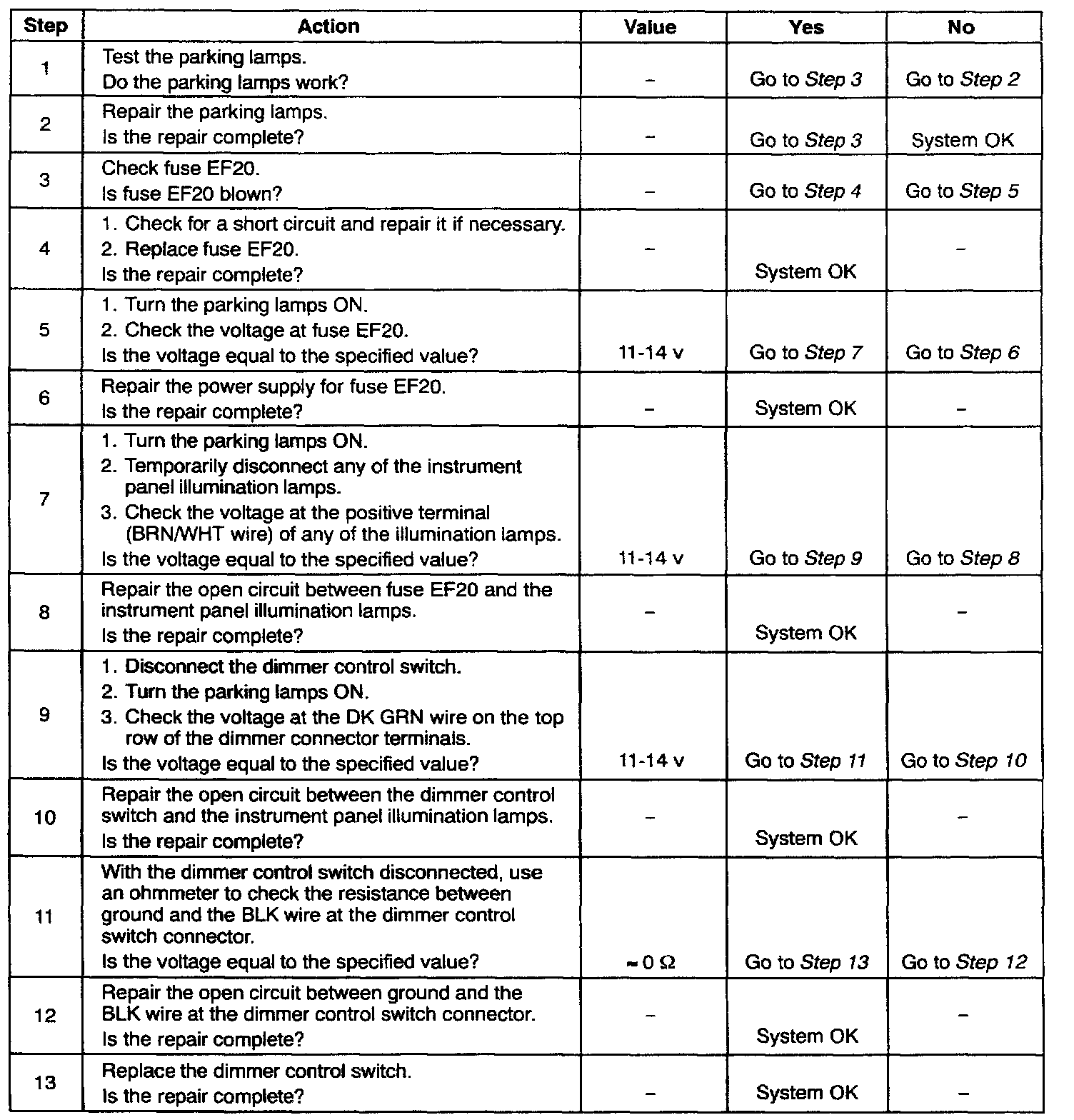

Steps 1 Thru 13:




Instrument Panel Illumination Does Not Work
