Clock: Service and Repair

Removal Procedure
1. Disconnect the negative battery cable.

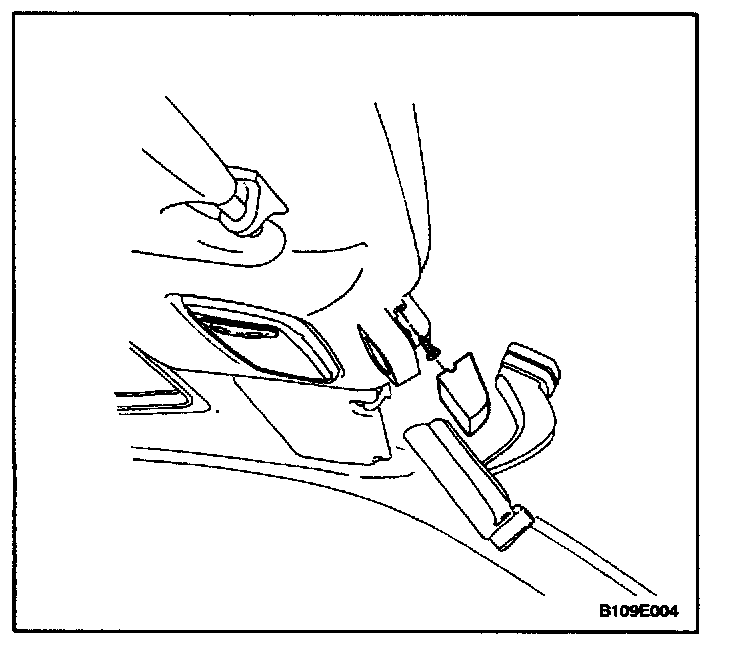

2. Remove the plastic cover to reveal the screws.
3. Remove the screws and the digital clock.
4. Disconnect the electrical connector.




Installation Procedure
1. Connect the electrical connector.
2. Install the digital clock with the screws.

Tighten
Tighten the digital clock screws to 4 Nm (35 lb.in).

3. Install the plastic cover.
4. Connect the negative battery cable.
