Cigarette Lighter: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the screws and the glove box.




3. Remove the screw and driver/passenger knee bolster.
4. Remove the screws and the audio system trim plate.

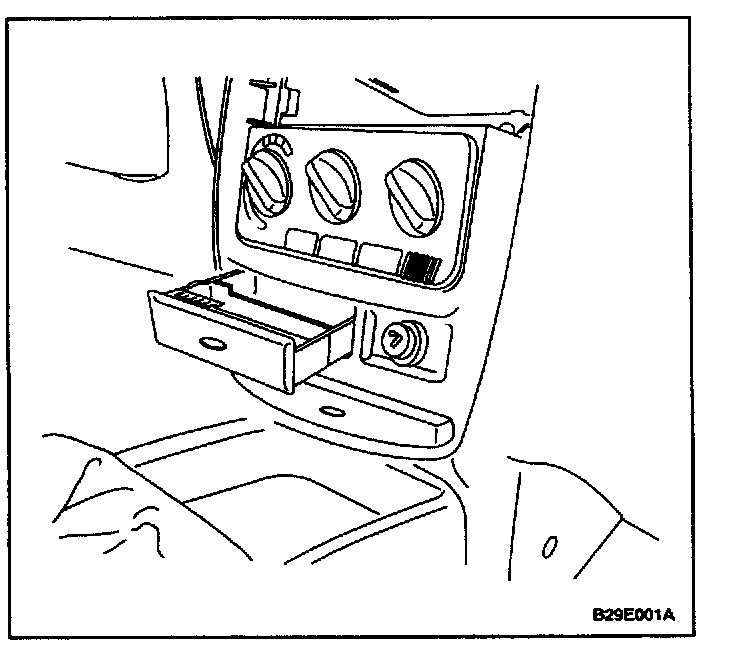

5. Disconnect the cigar lighter electrical connector.

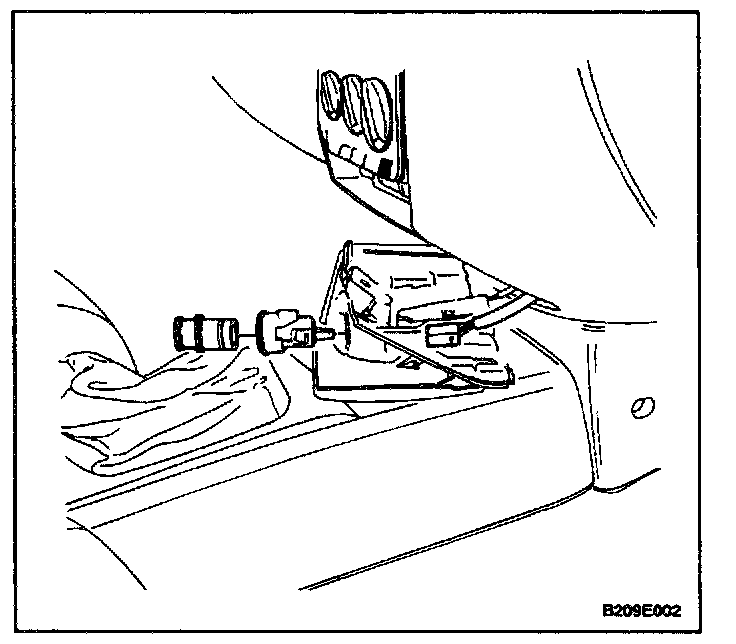

6. Remove the cigar lighter from the cigar lighter housing.
7. Remove the cigar lighter housing from the ashtray housing.

Installation Procedure




1. Install the cigar lighter housing in the ashtray housing.
2. Install the cigar lighter in the cigar lighter housing.
3. Connect the cigar lighter electrical connector.




4. Install the ashtray housing with the screw.

Tighten
Tighten the ashtray housing screw to 2.5 Nm (22 lb.in).




5. Install the audio system trim plate with the screws.
6. Install glove box, driver/passenger knee bolster with the screws.
7. Connect the negative battery cable.
