Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Heater System
>>
Insufficient Heating or Defrosting
Insufficient Heating or Defrosting

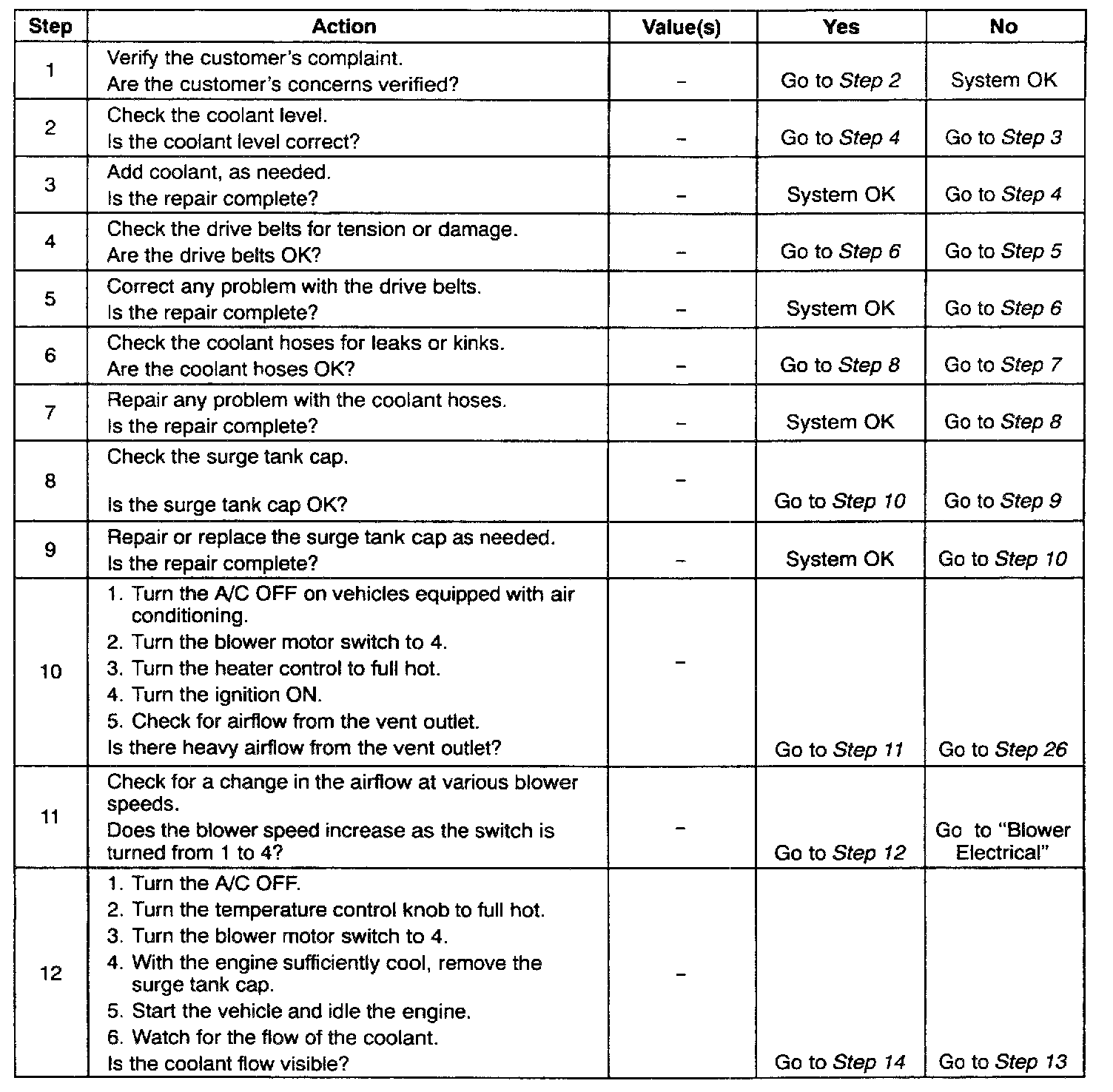

Steps 1 Thru 12:

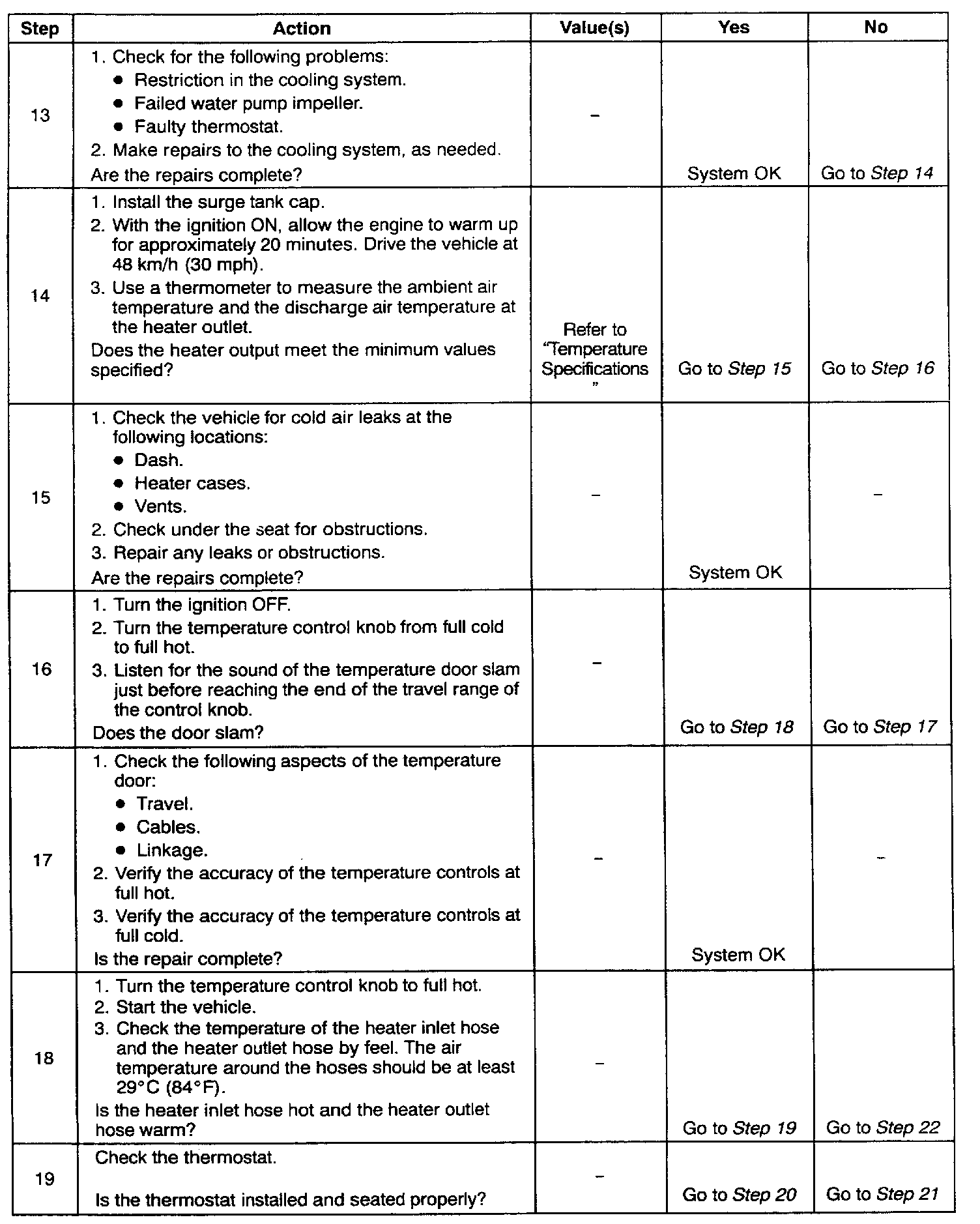

Steps 13 Thru 19:

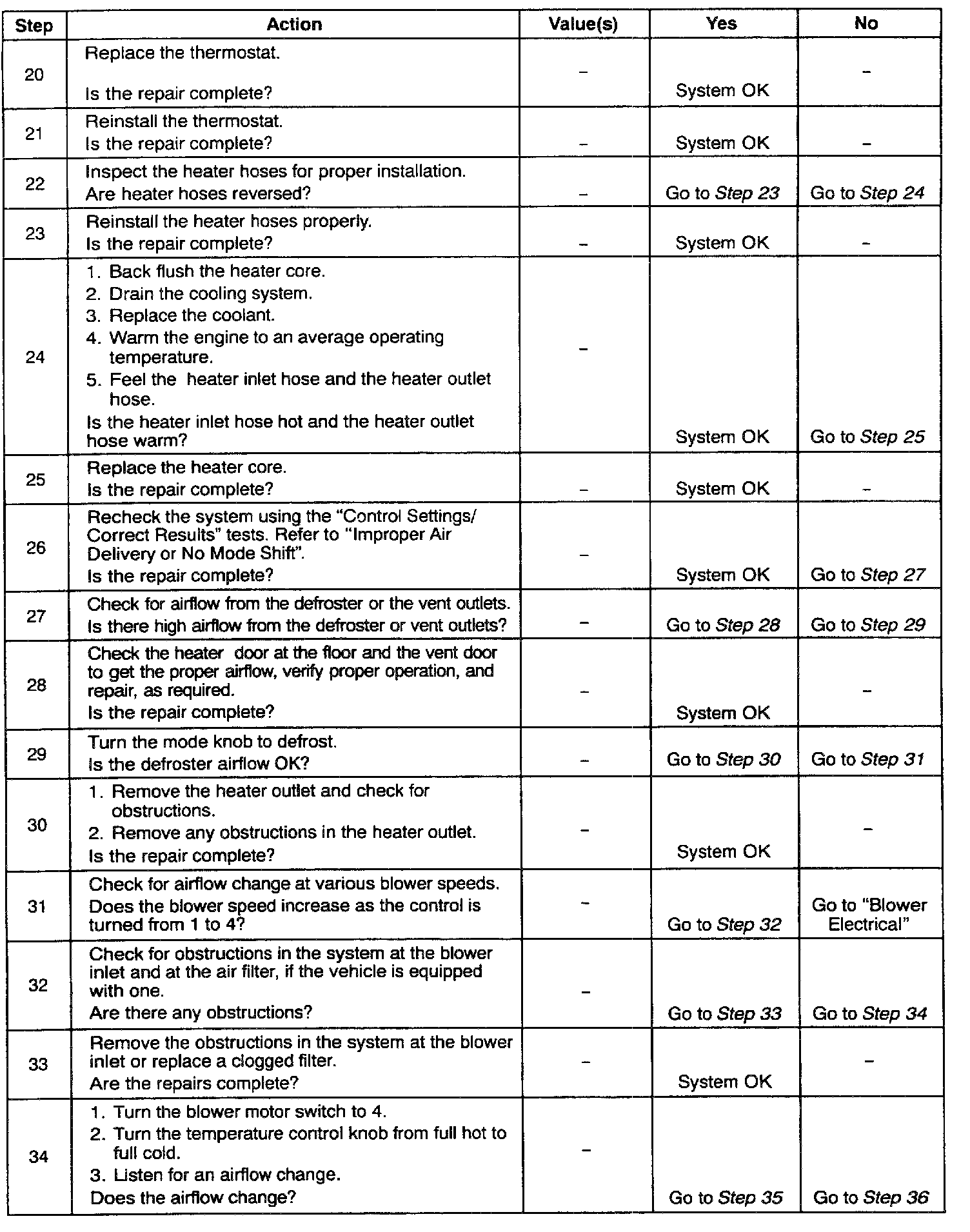

Steps 20 Thru 34:

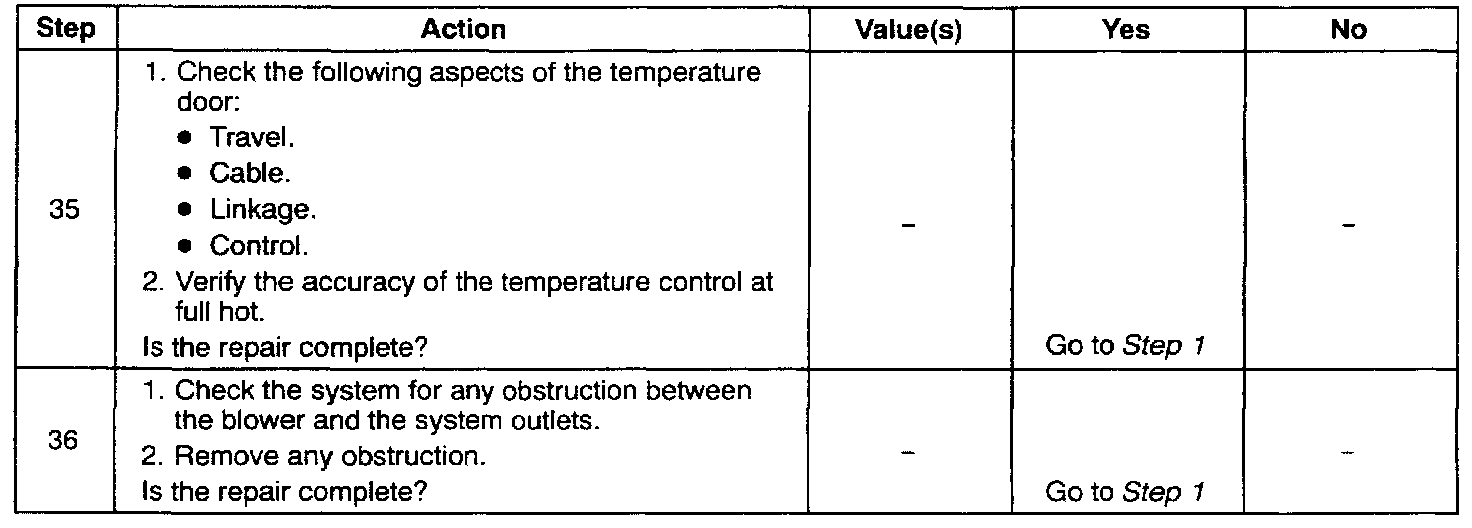

Steps 35 Thru 36:
CAUTION:
The cooling system is pressurized when hot. Injury can result from removing the surge tank cap before the engine is sufficiently cool.
