Home >> Daewoo >> 1999 >> Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Heater System >> Blower Electrical

Blower Electrical

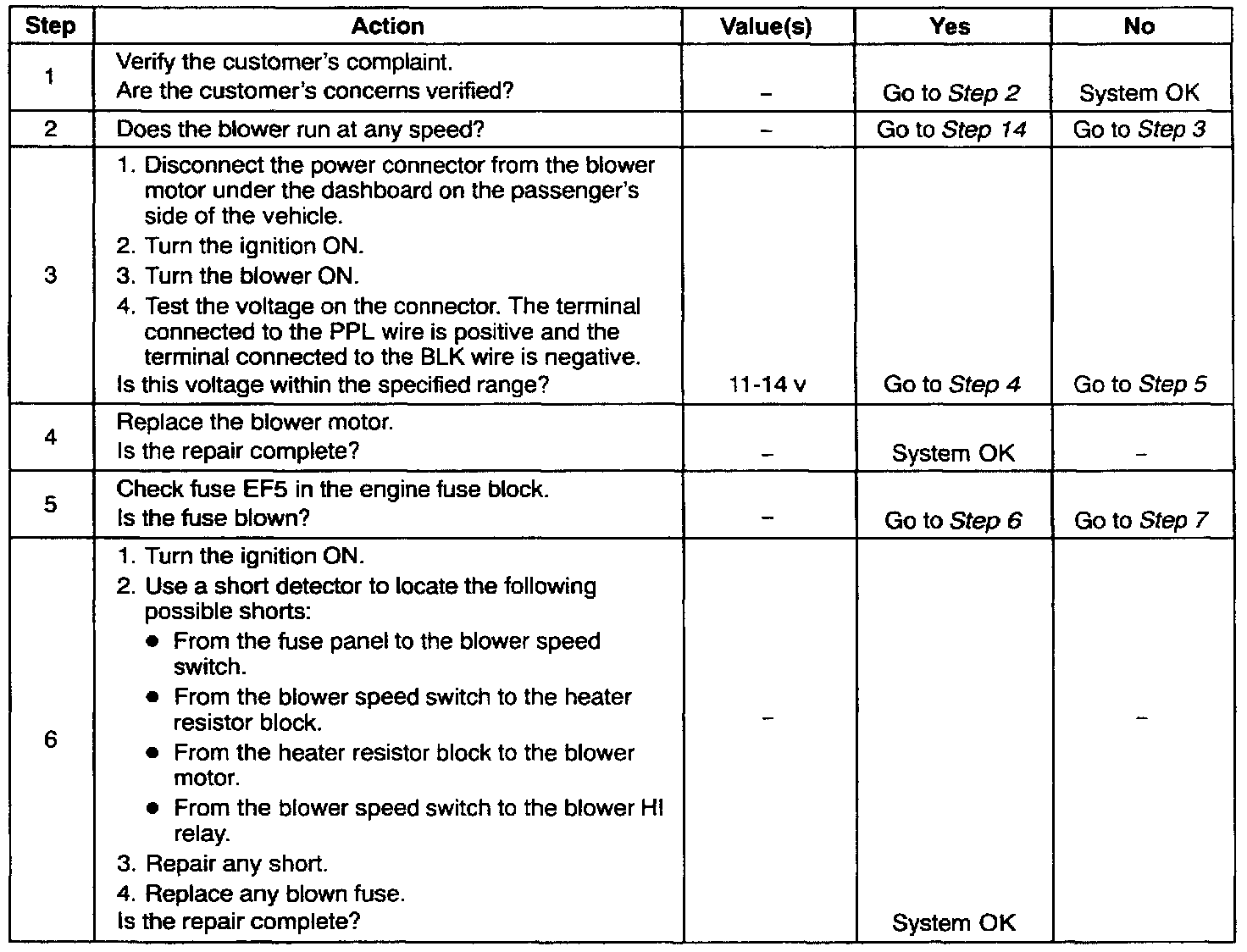

Steps 1 Thru 6:

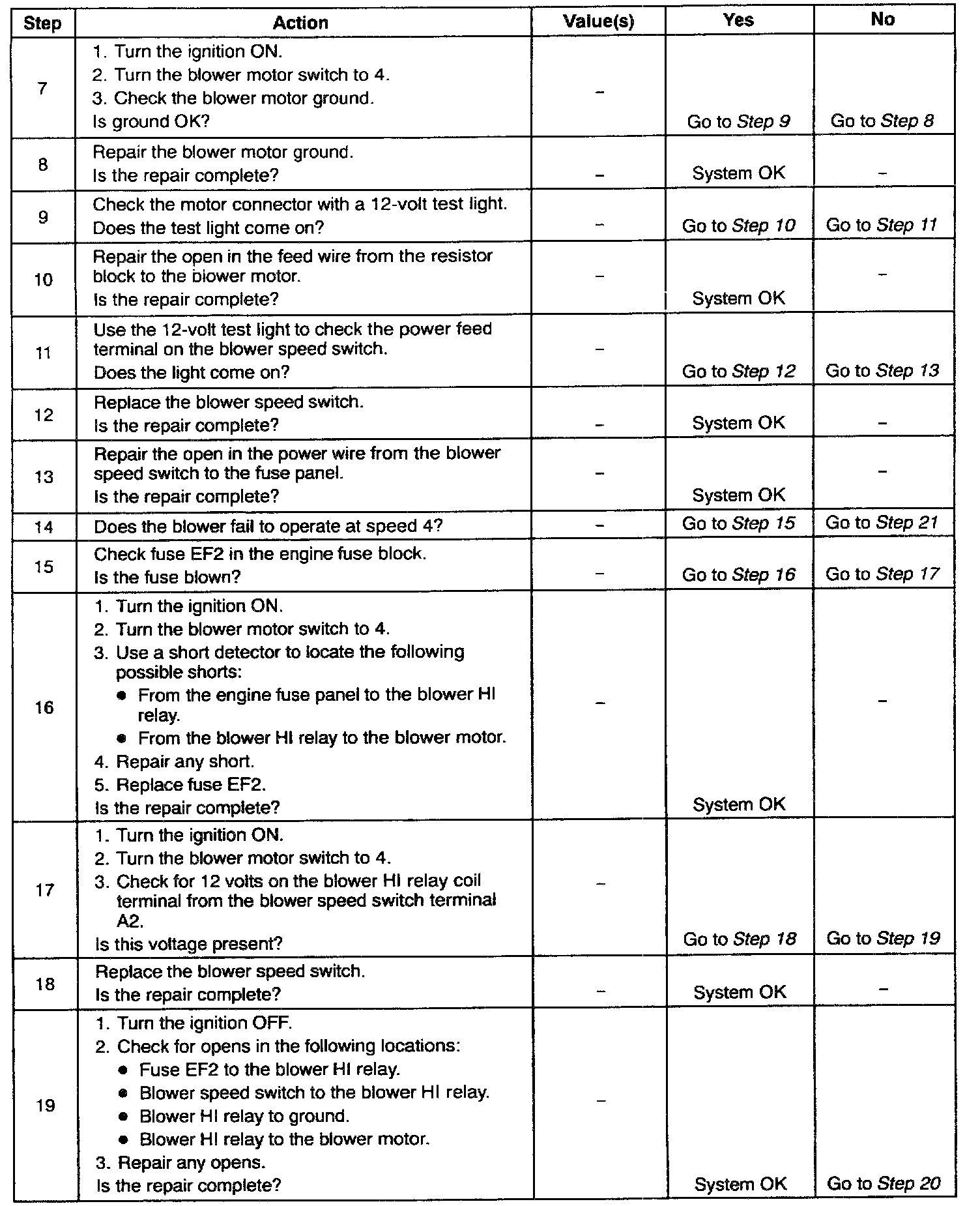

Steps 7 Thru 19:

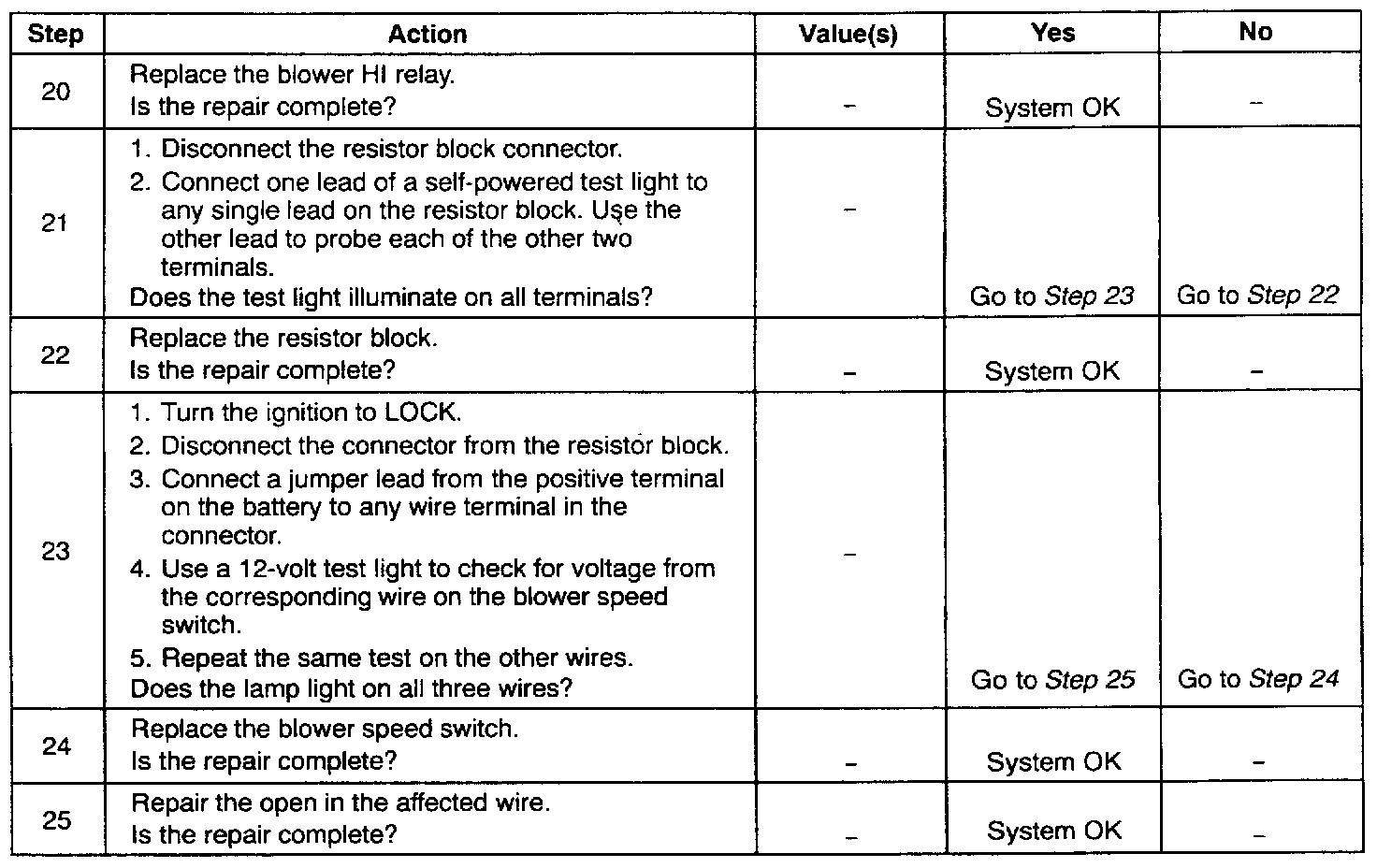

Steps 20 Thru 25:
