Home >> Daewoo >> 1999 >> Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Air Conditioning System >> Pressure Test Chart (R-134A System)

Pressure Test Chart (R-134A System)

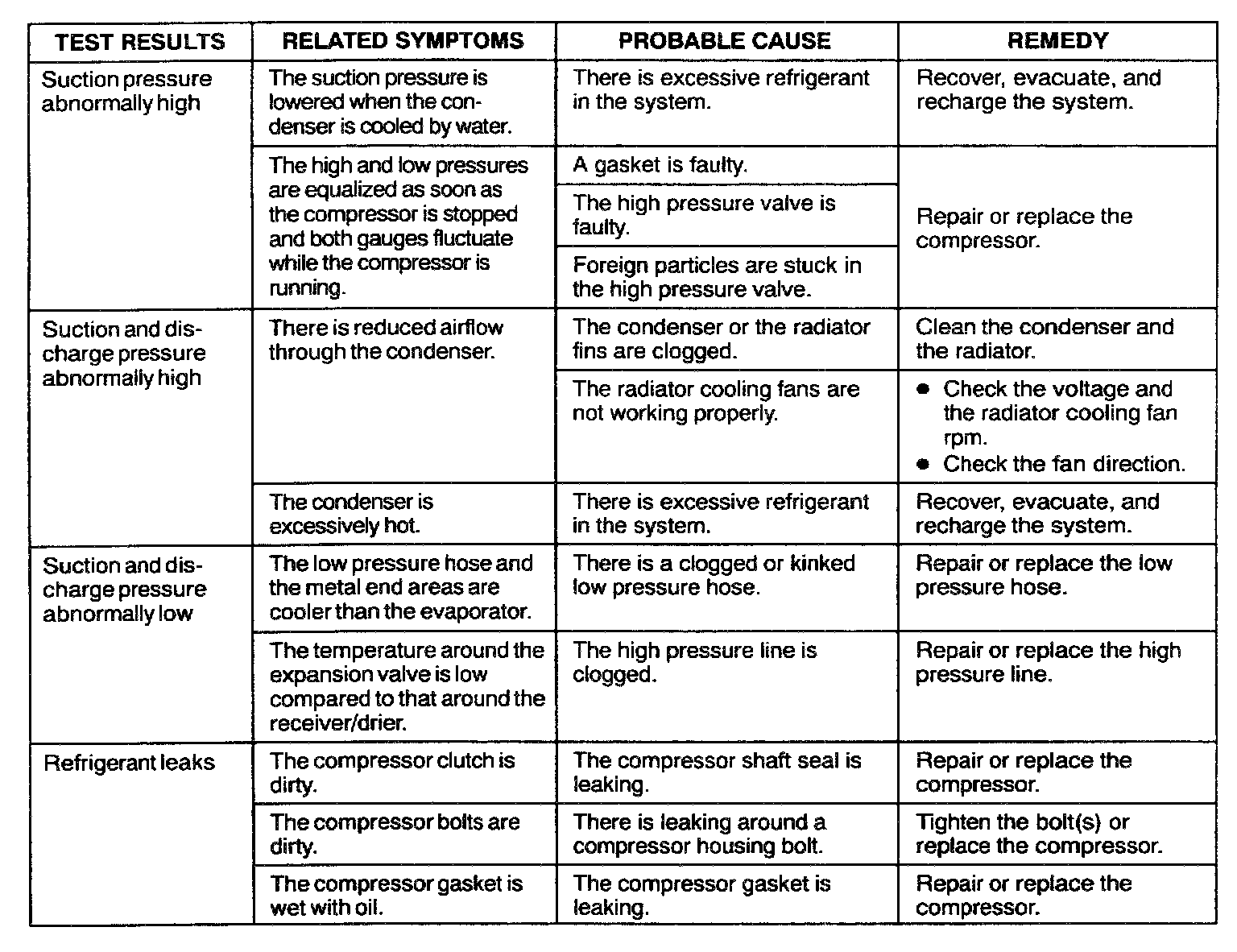

Part 1 Of 2:

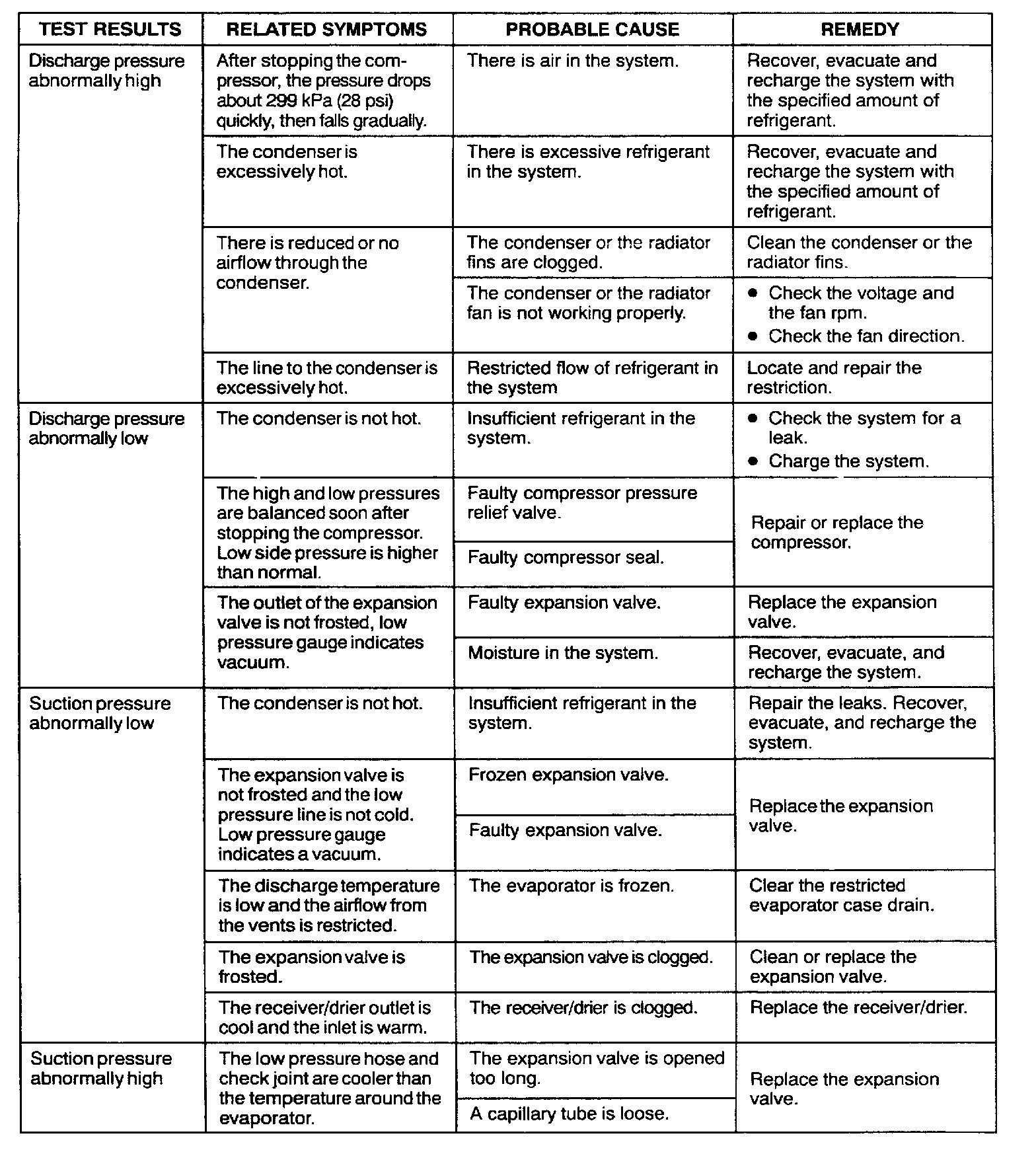

Part 2 Of 2:
