Home >> Daewoo >> 1999 >> Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Clutch >> Diagrams >> Electrical Diagrams

Electrical Diagrams

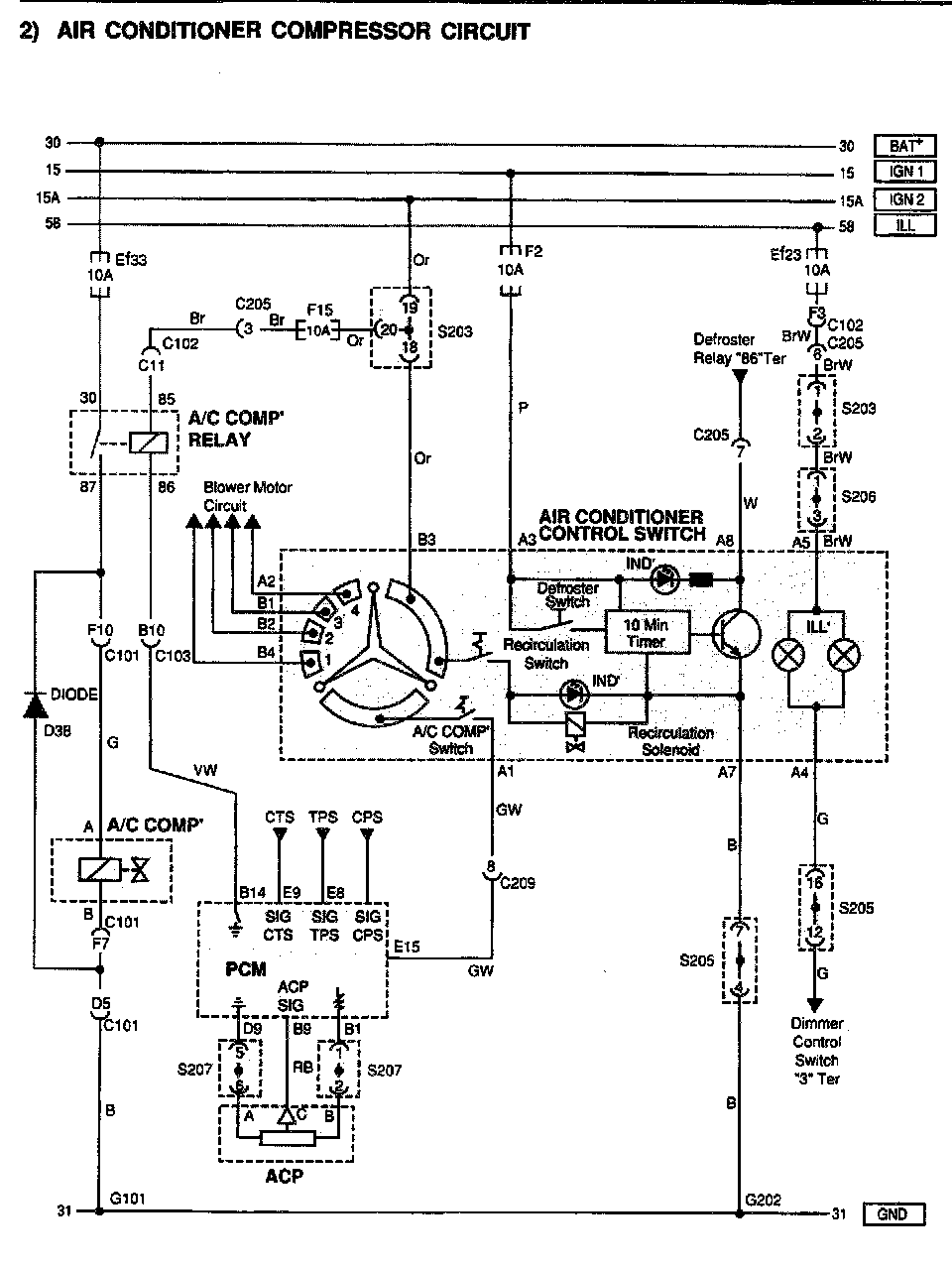

PCM/ECM Wiring Diagram A/C Compressor Clutch Circuit:

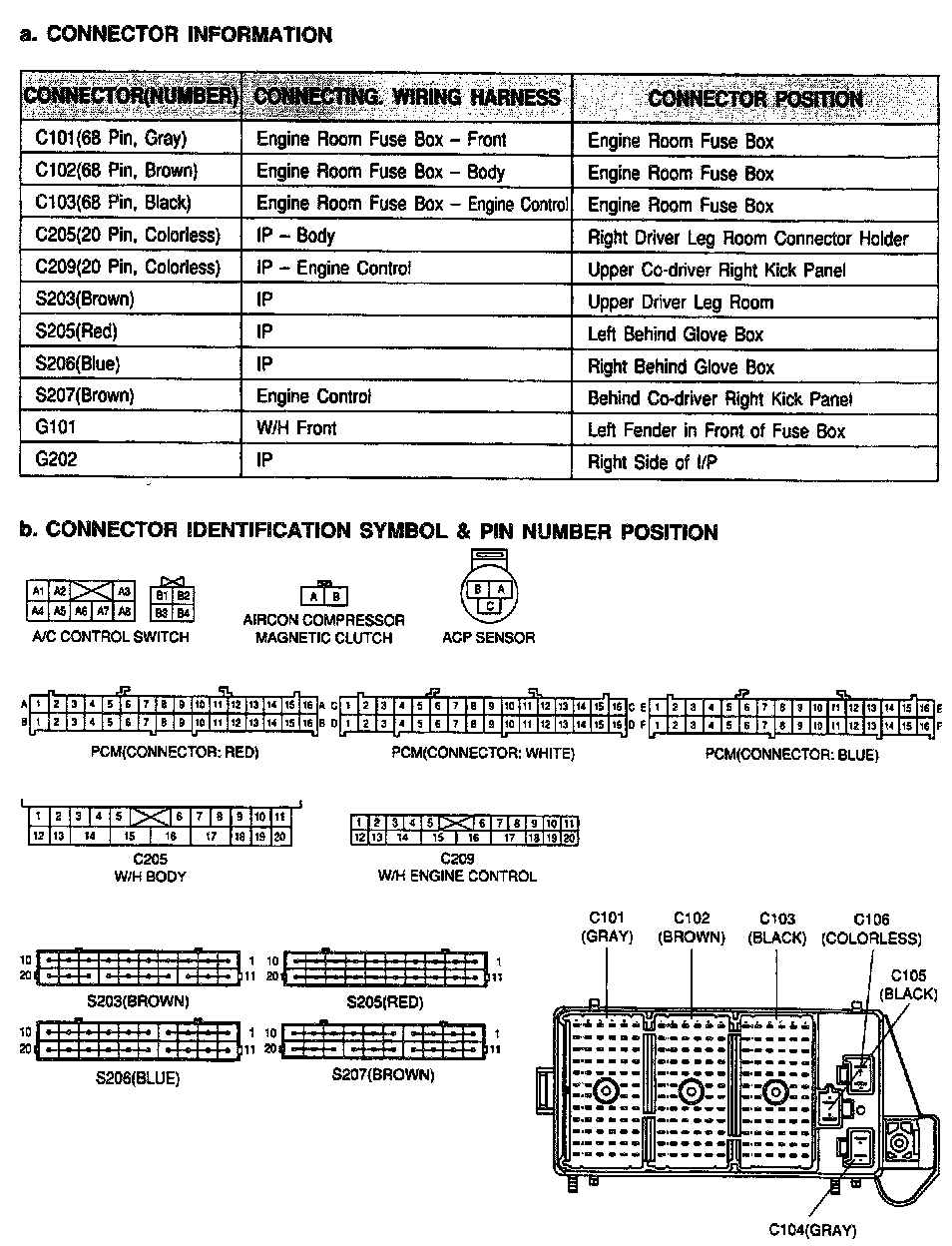

Connector Information:
