Air Door Cable: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the glove box.

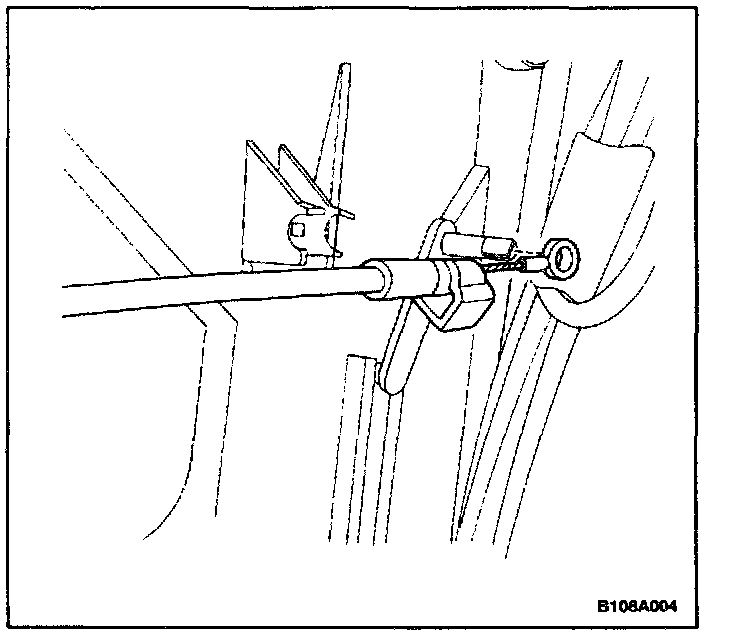

3. Slide the cable eyelet off the post on the temperature door lever.

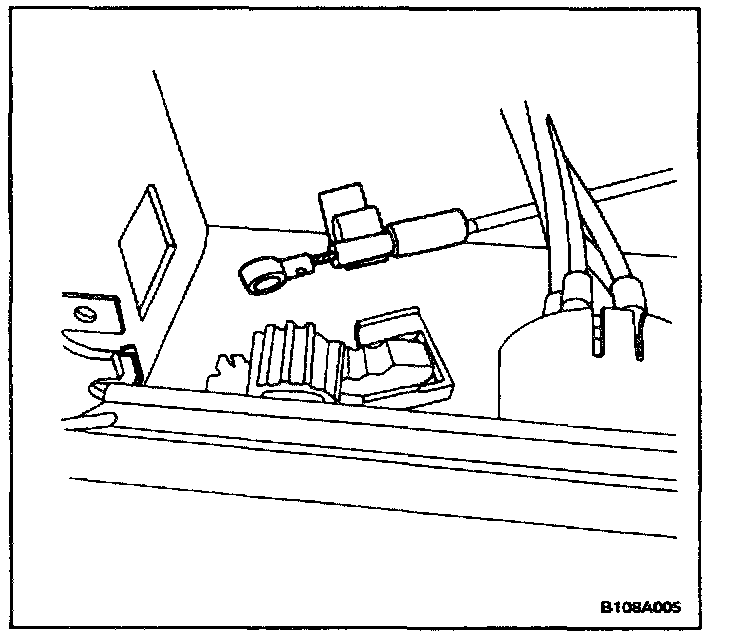

4. Disconnect the cable retainer from the blower housing.




5. Remove the audio system trim plate.
6. Remove the four controller retaining screws.
7. Pull out the controller to provide clearance for removal of the temperature control cable.
8. Disconnect the temperature control cable eyelet from the post on the controller.
9. Snap the cable housing connector out of the slide position on the controller.

Installation Procedure




1. Install the temperature control cable eyelet to the post on the controller.
2. Snap the cable housing connector to the slide position on the controller.




3. Gently insert the controller into position on the center console.
4. Install the four controller retaining screws.

Tighten
Tighten the HVAC controller retaining screws to 2 Nm (18 lb.in).

5. Install the temperature control cable eyelet to the post on the temperature door lever.
6. Snap the cable retainer to the blower housing.




7. Move the temperature control to verify the smooth operation and function of the door and the cable.
8. Install the audio system trim plate.
9. Connect the negative battery cable.
10. Operate the heating and cooling systems to verify proper function.
11. Install the glove box.
