FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Daewoo
>>
1999
>>
Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
Manual Transmission/Transaxle
Part 1 Of 2:
Part 2 Of 2:

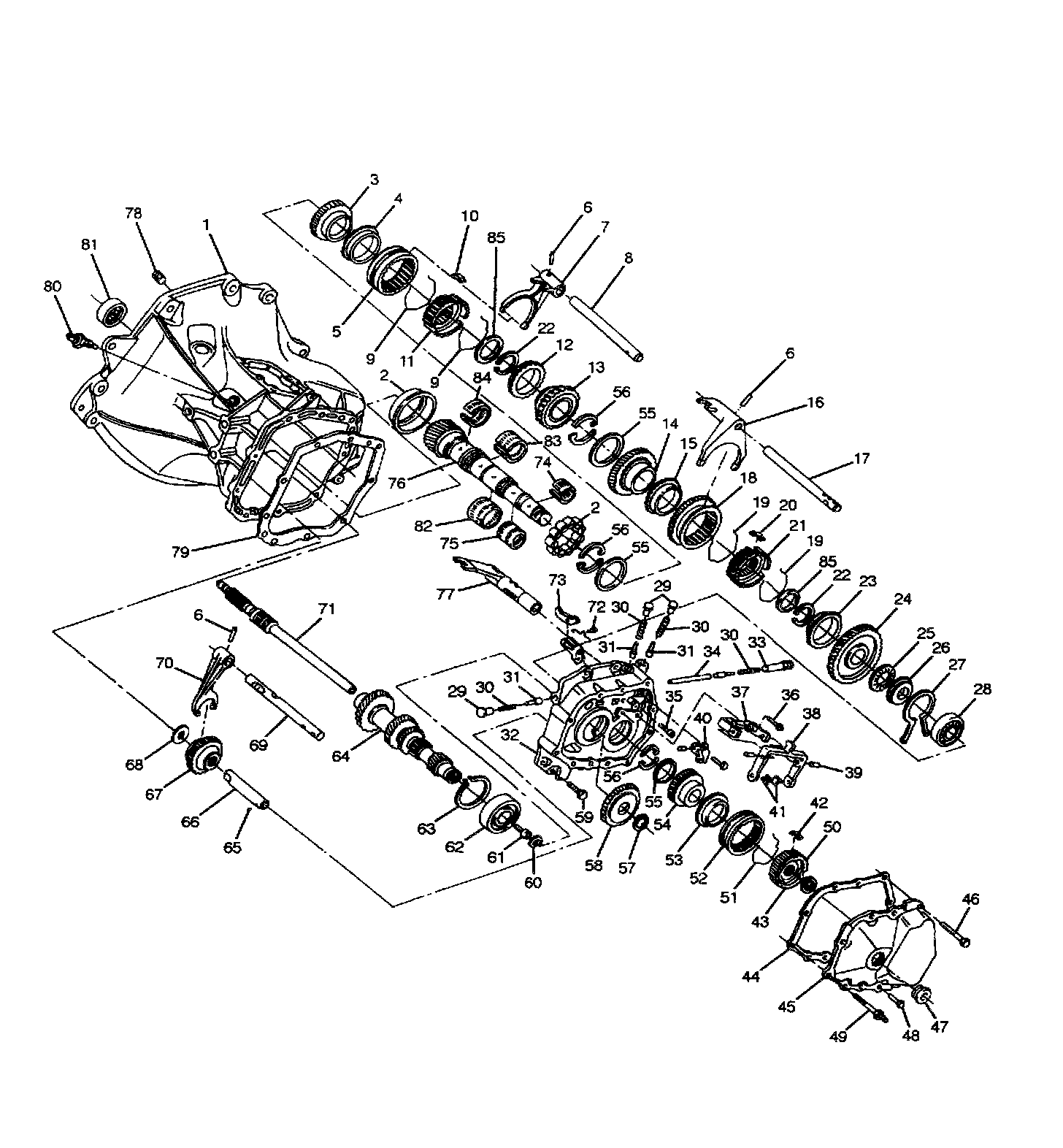

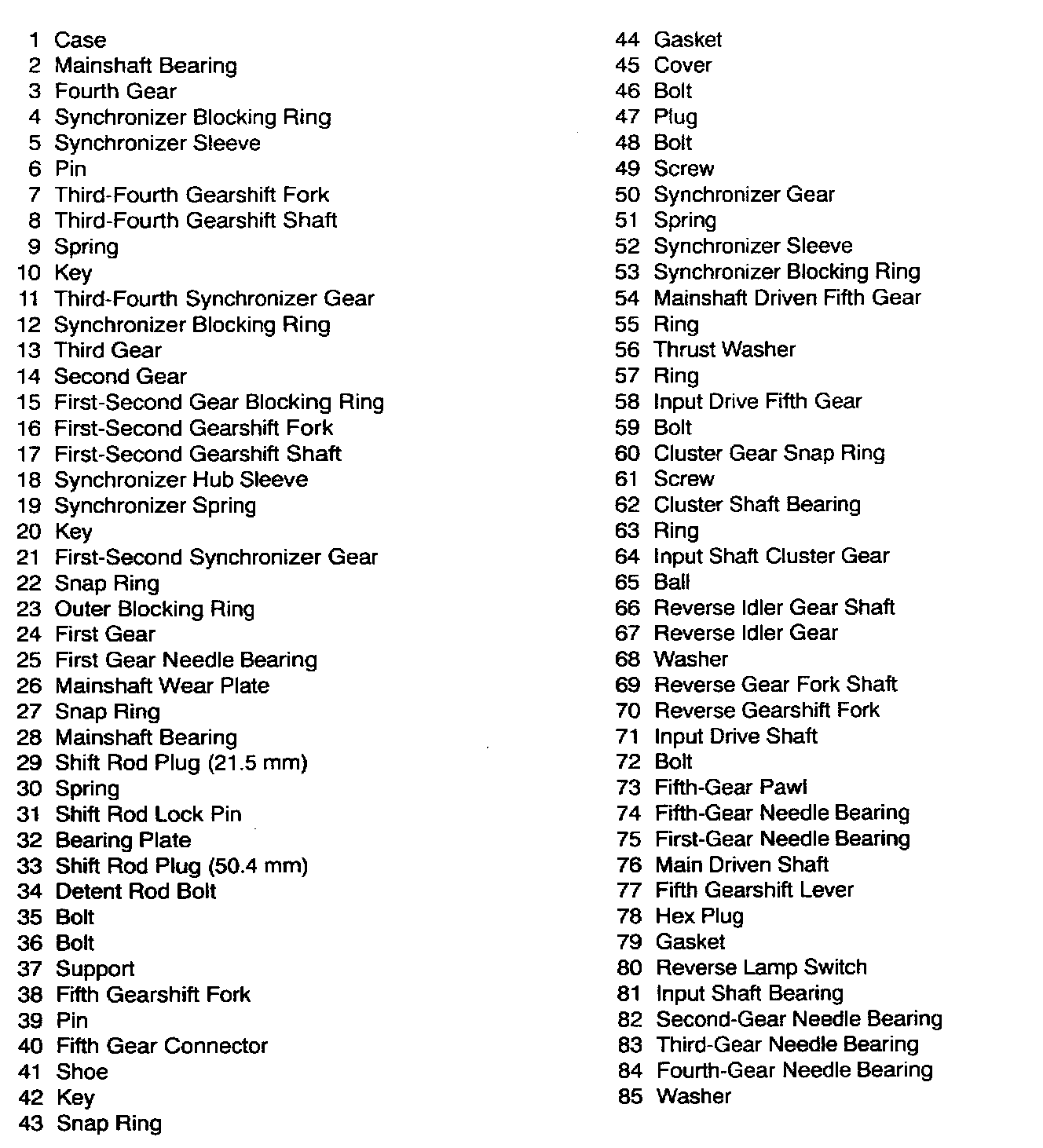

GEARS AND CASE
Part 1 Of 2:
Part 2 Of 2:

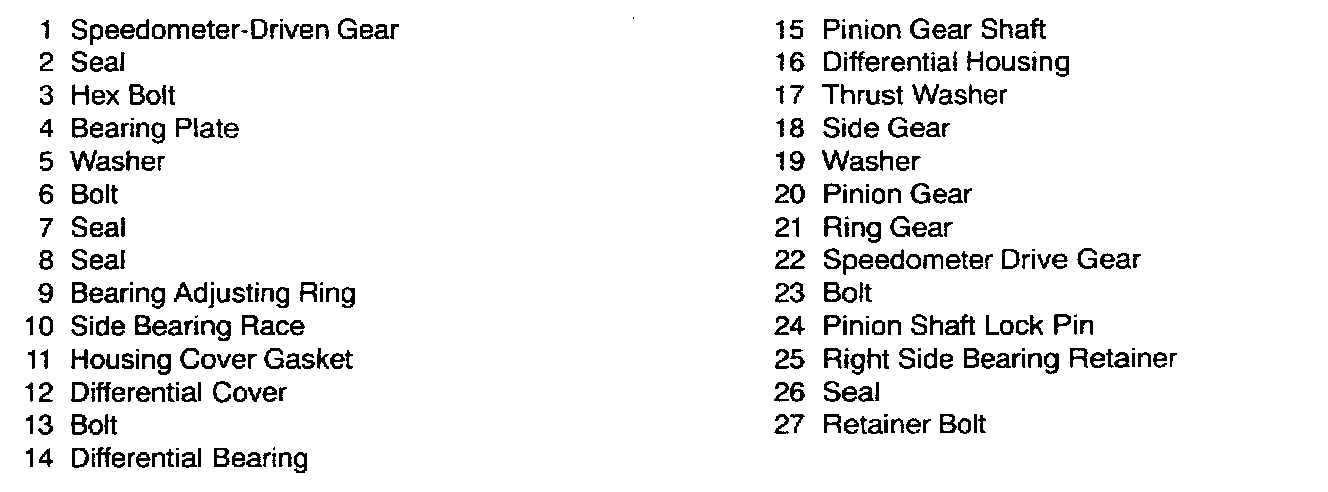

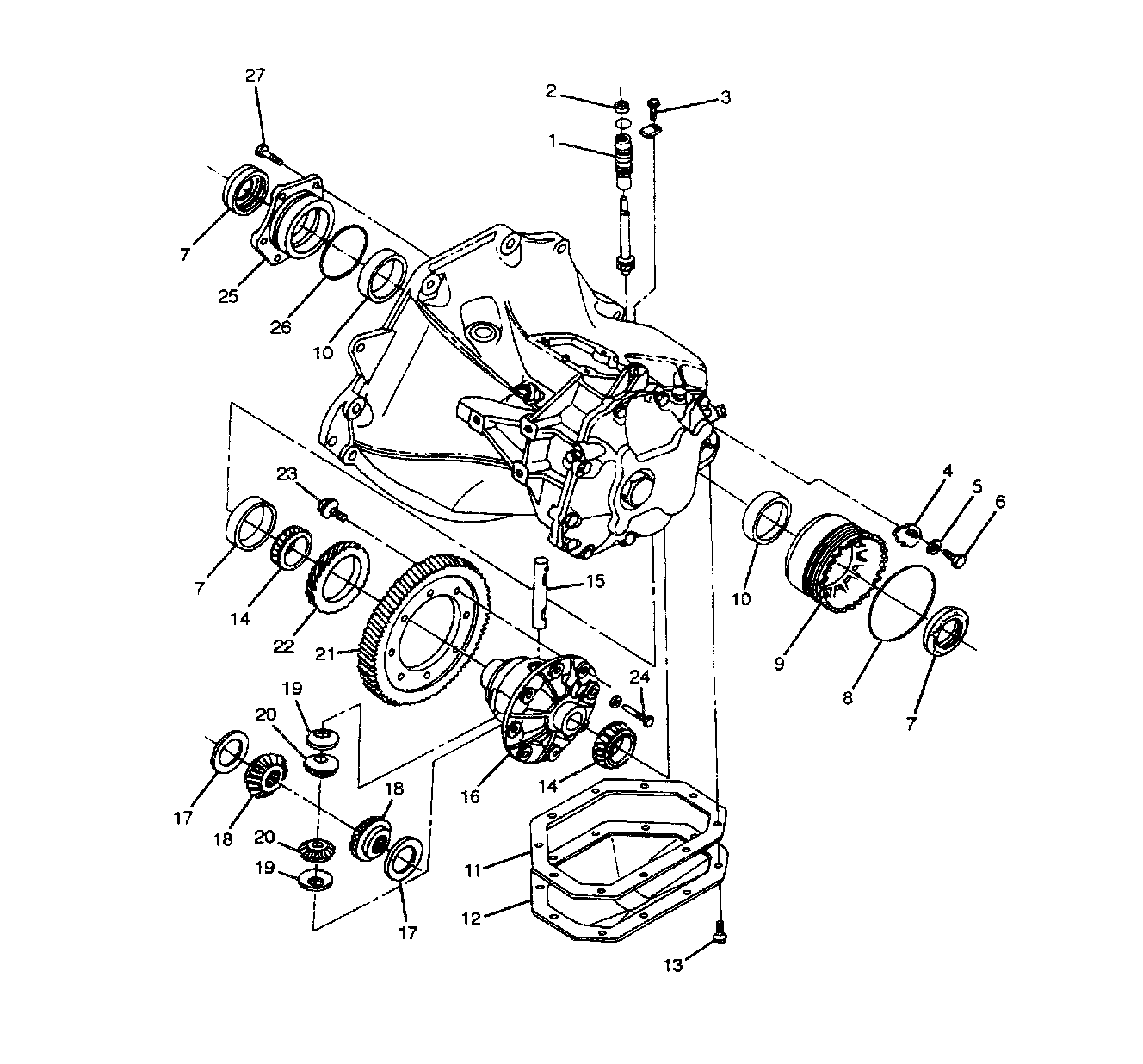

DIFFERENTIAL AND CASE
