Home >> Daewoo >> 1999 >> Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiring Diagrams For Power Supplies >> Passenger Room Fuse Box >> 15 TER, IGN 1 Power Supply Circuit

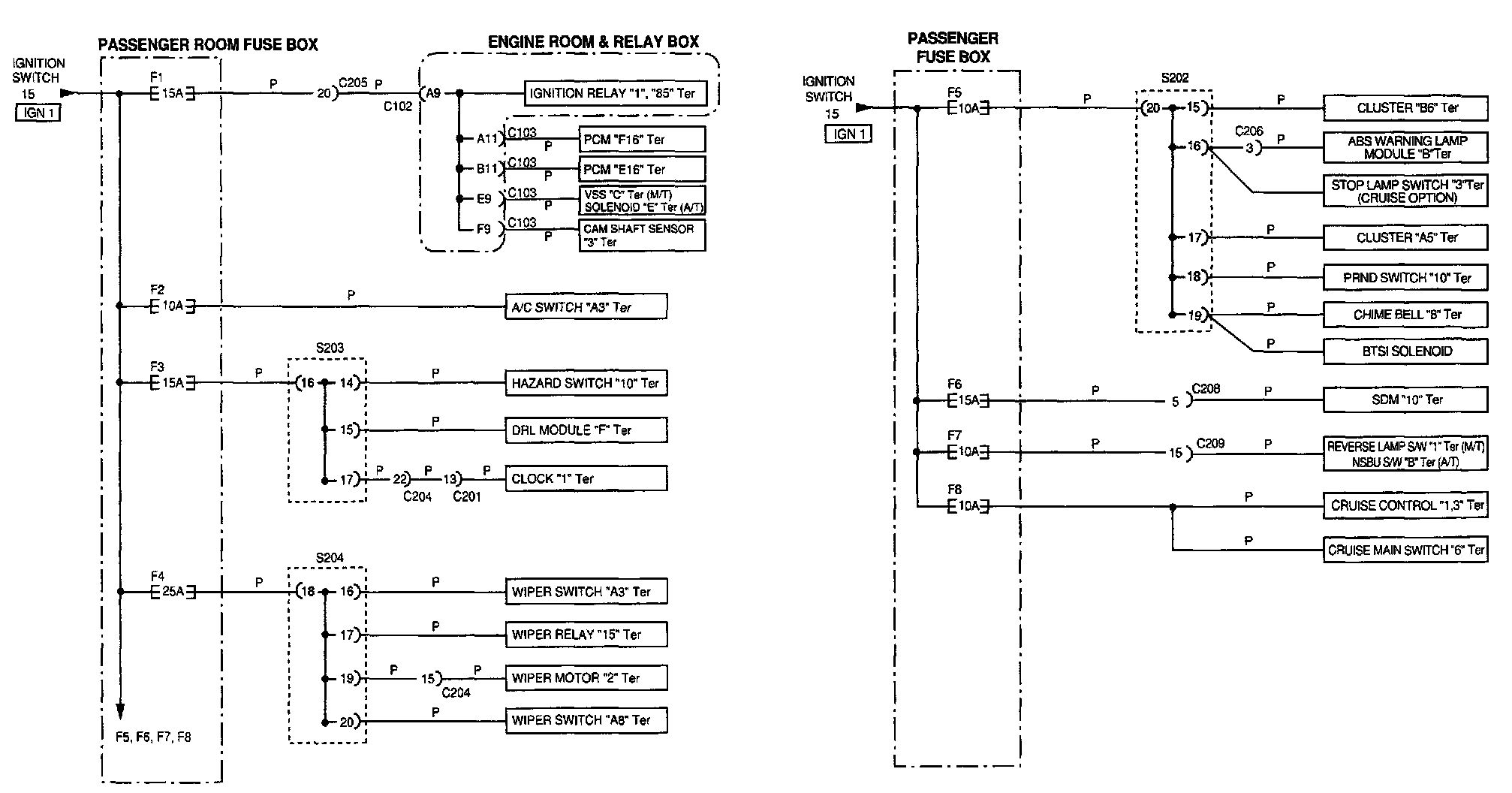

15 TER, IGN 1 Power Supply Circuit
