Radiator Cooling Fan Motor
>>

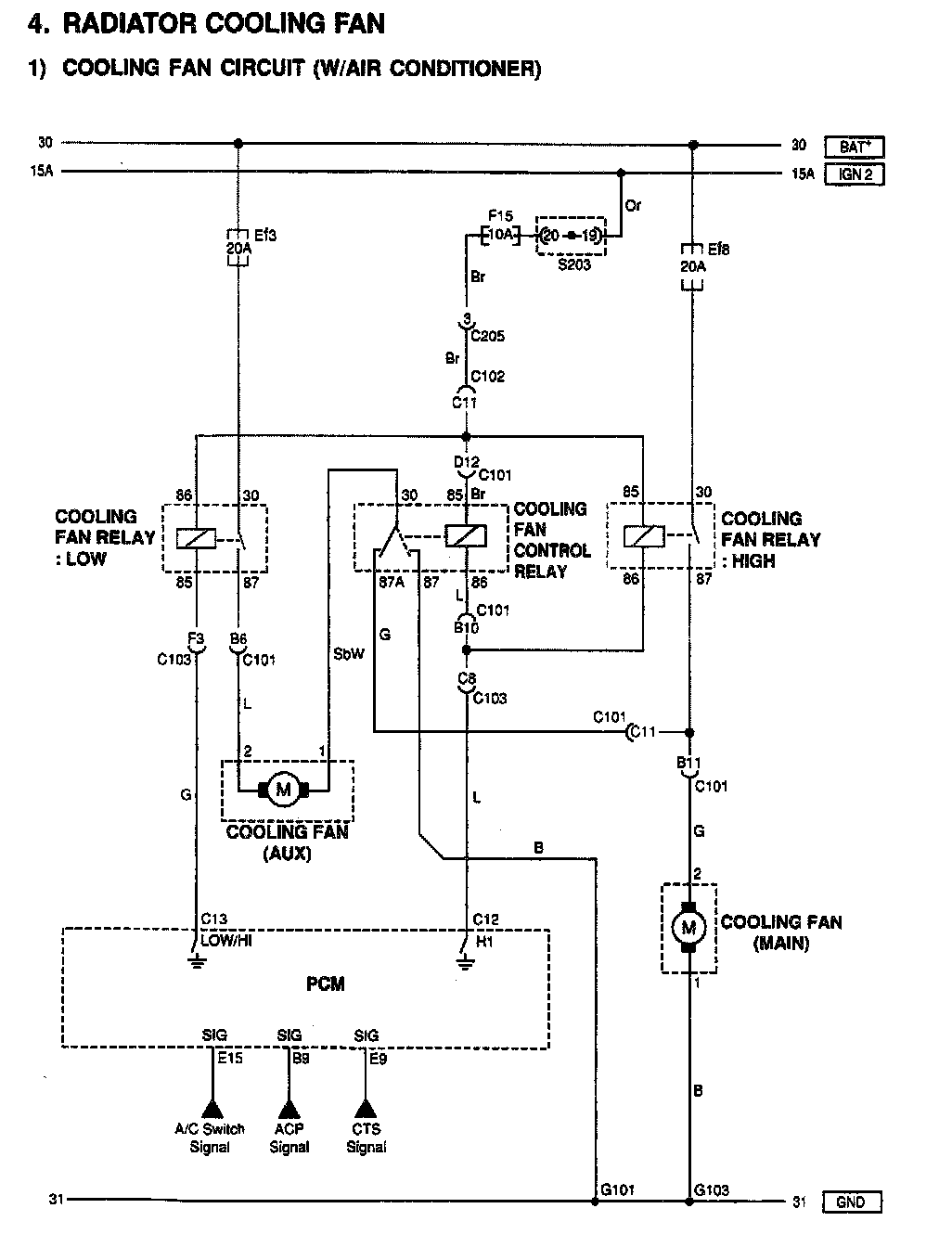

PCM/ECM Wiring Diagram/Cooling Fan Circuit with AC
PCM/ECM Wiring Diagram/Cooling Fan Circuit with AC
PCM/ECM Wiring Diagram/Cooling Fan Circuit with AC:
Connector Information:
