Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radiator Cooling Fan Motor
>>

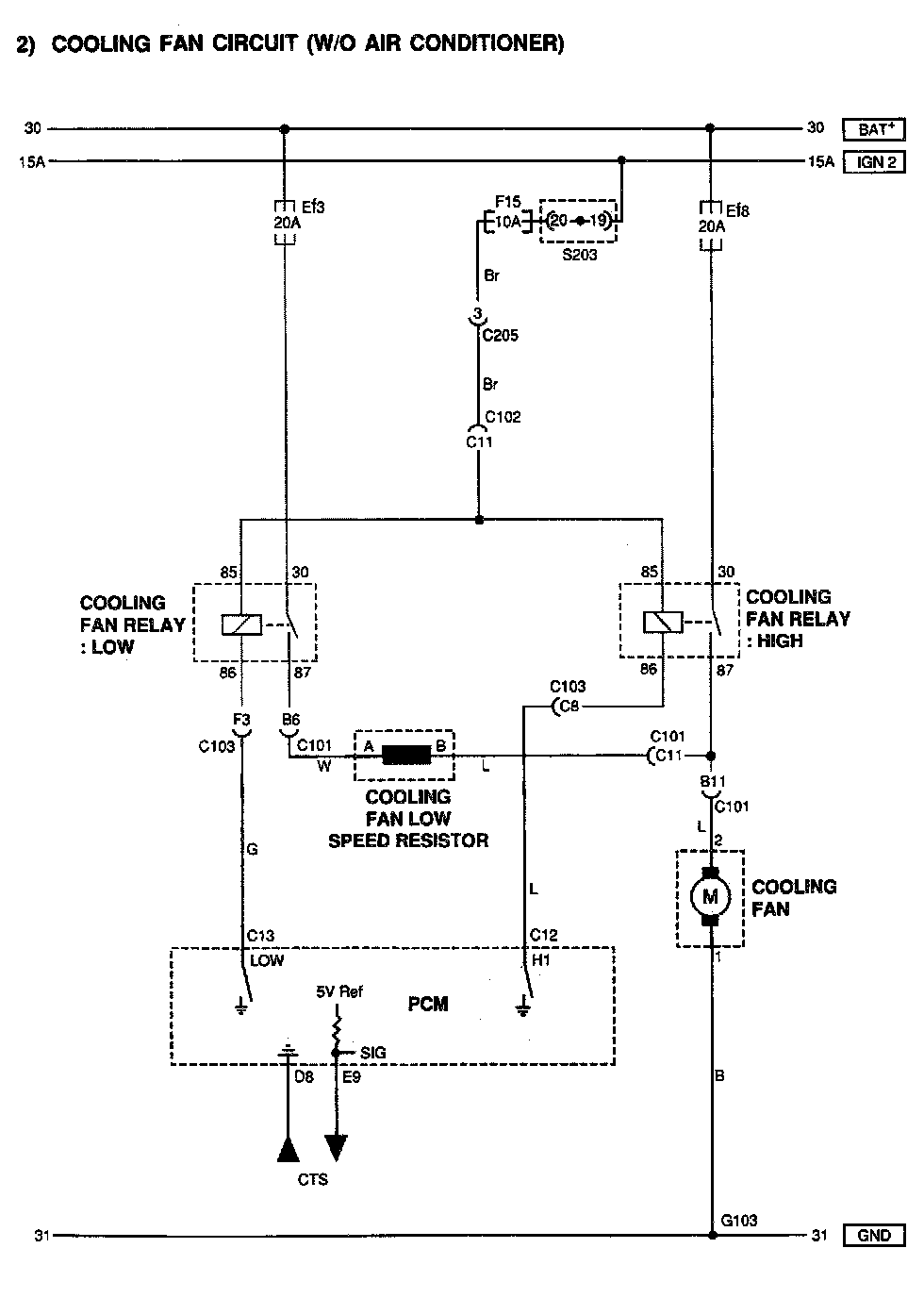

PCM/ECM Wiring Diagram/Cooling Fan Circuit W/O AC
PCM/ECM Wiring Diagram/Cooling Fan Circuit W/O AC
PCM/ECM Wiring Diagram/Cooling Fan Circuit W/O AC:

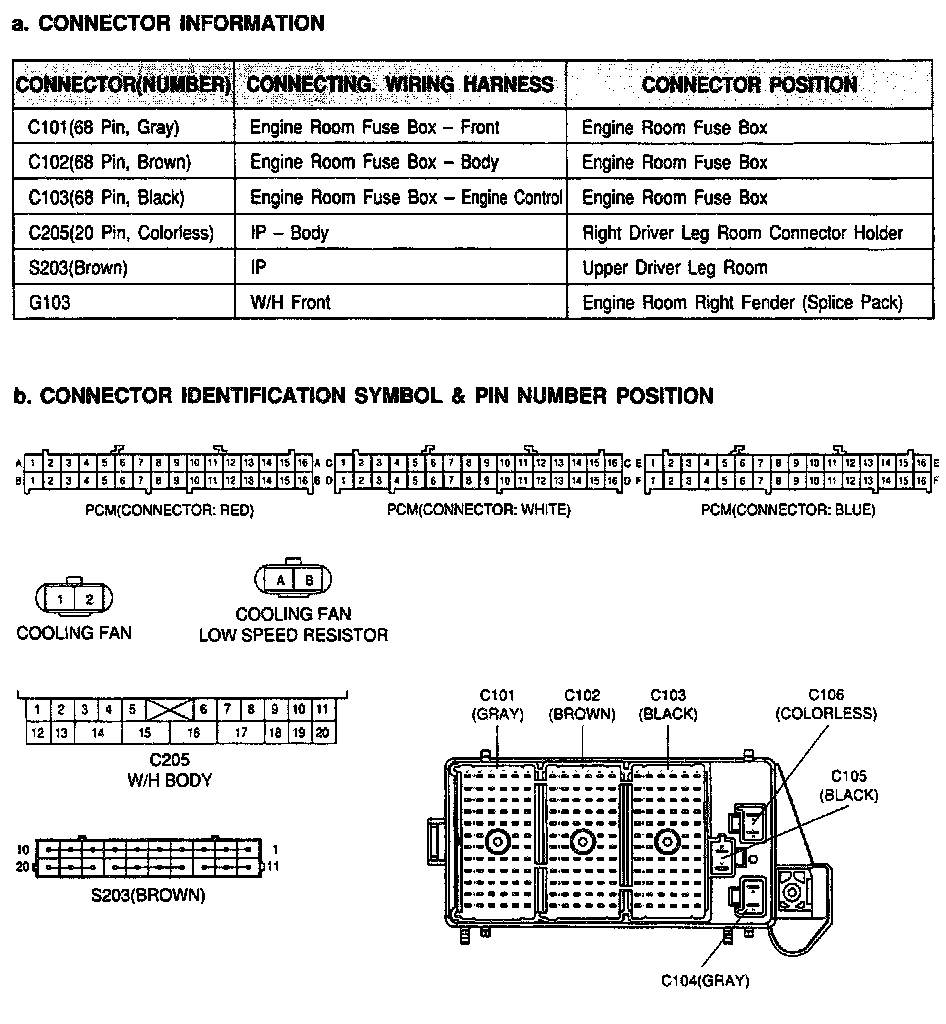

Connector Information:
