Engine Control Module

PCM/ECM Wiring Diagram (1 of 8):

PCM/ECM Wiring Diagram (2 of 8):

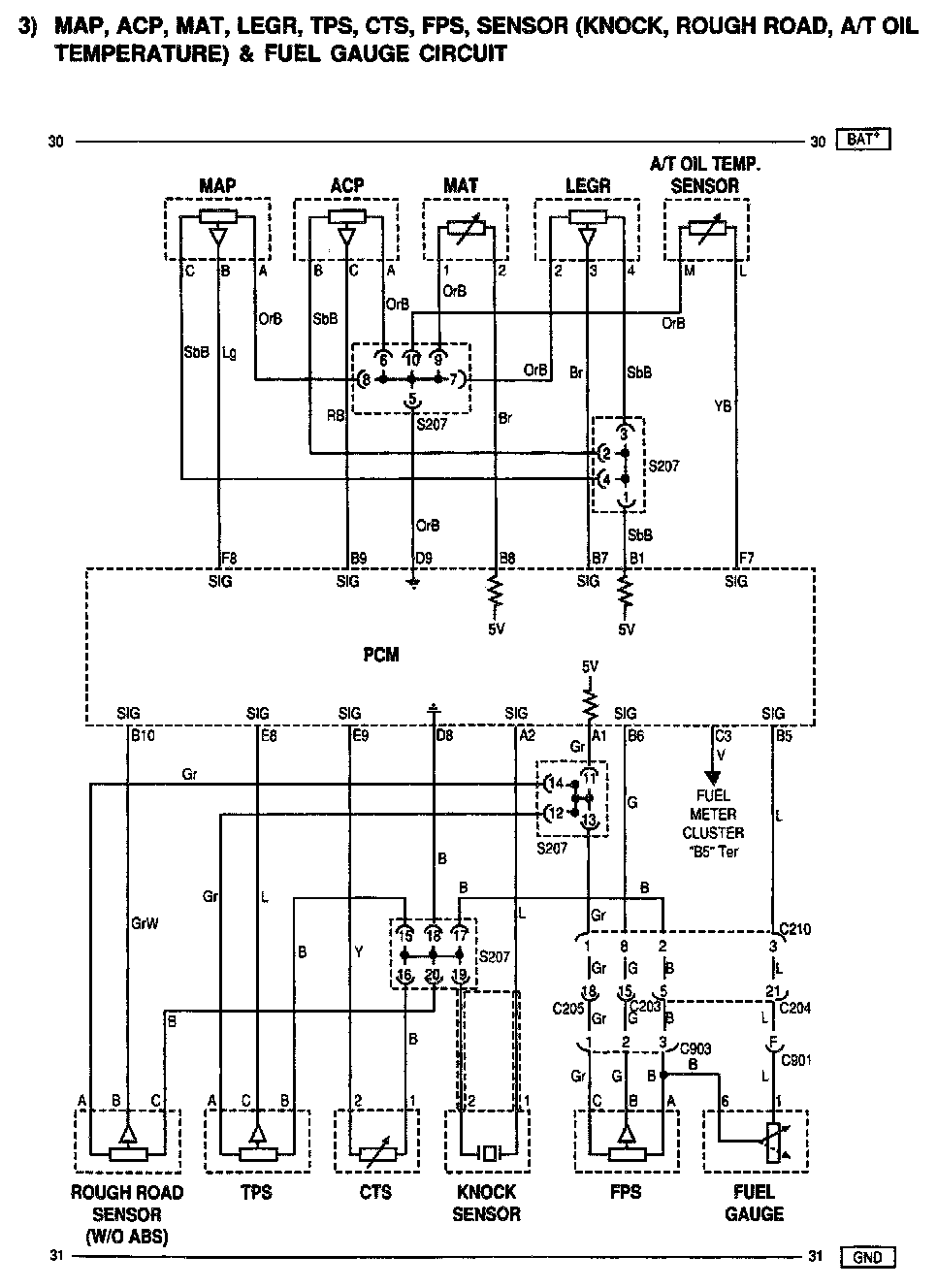

PCM/ECM Wiring Diagram (3 of 8):

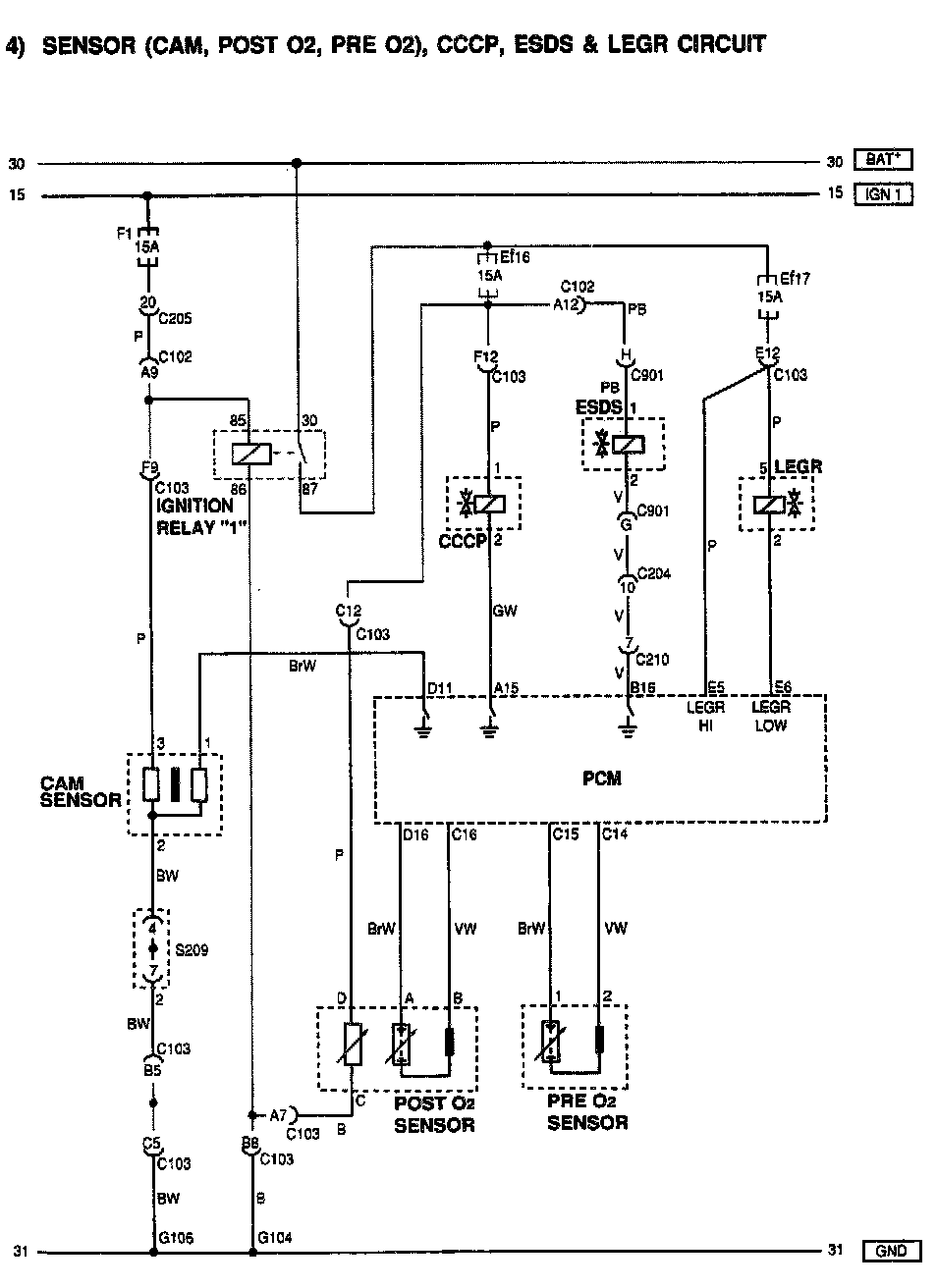

PCM/ECM Wiring Diagram (4 of 8):

PCM/ECM Wiring Diagram (5 of 8):

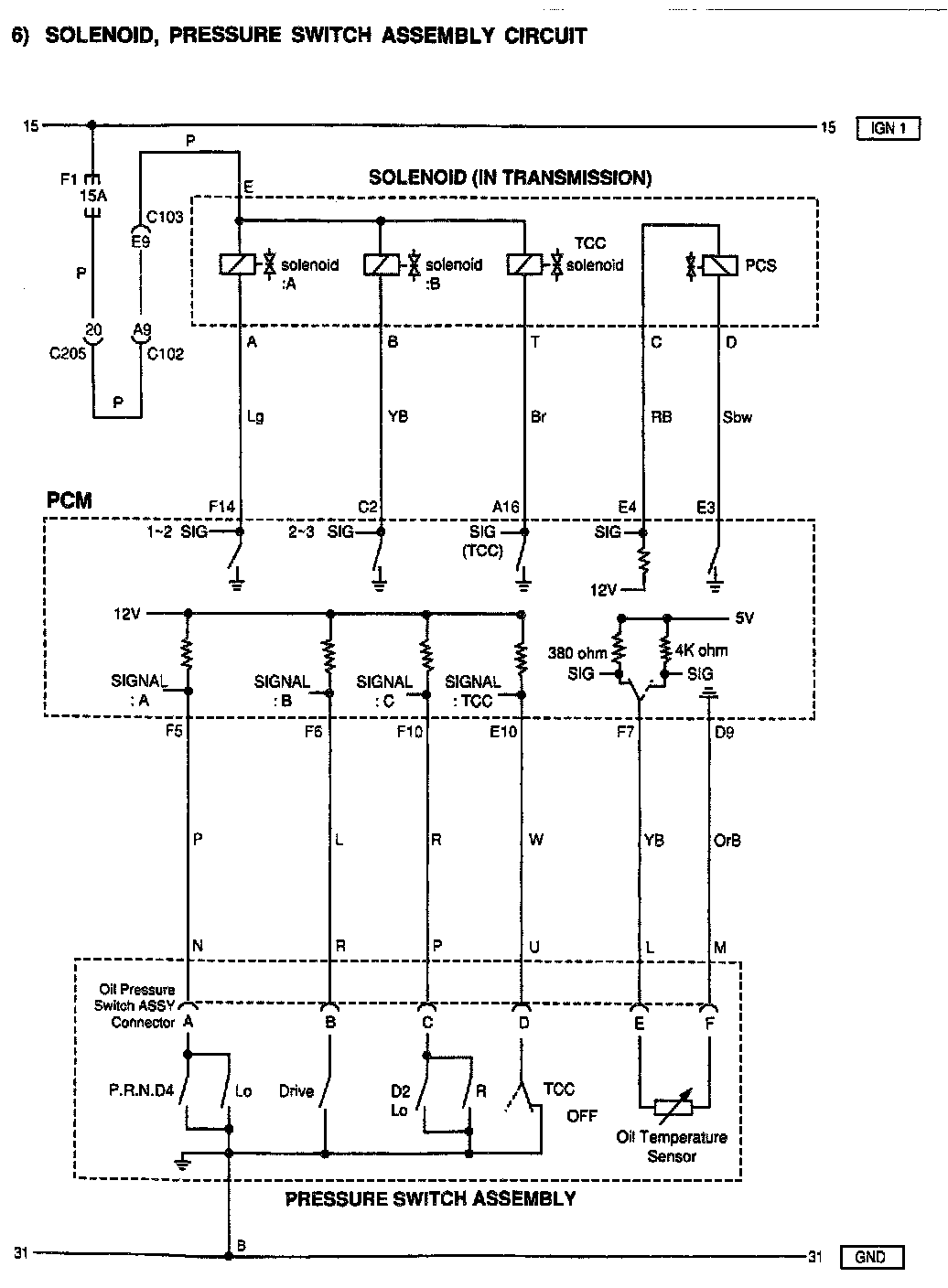

PCM/ECM Wiring Diagram (6 of 8):

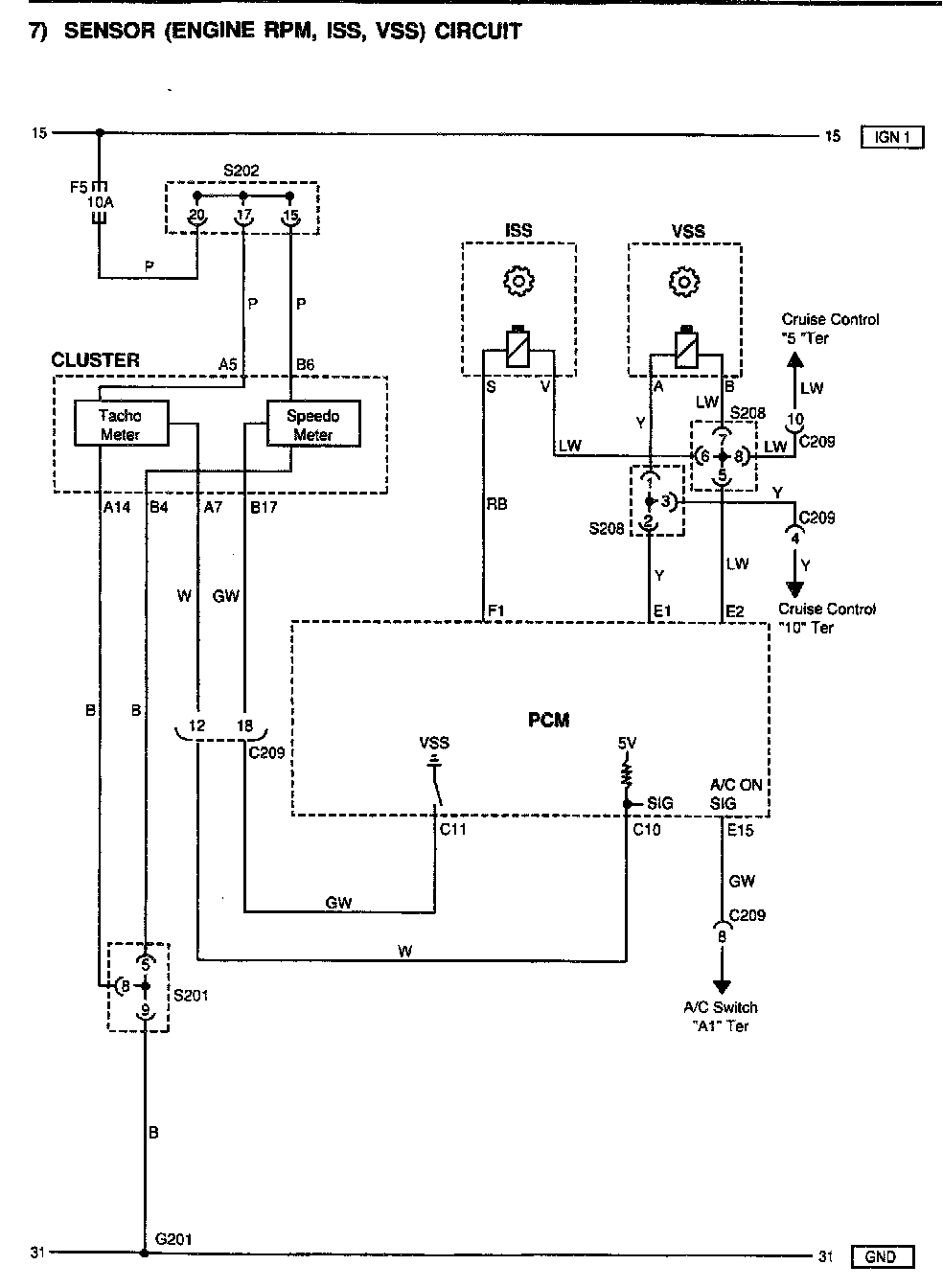

PCM/ECM Wiring Diagram (7 of 8):

PCM/ECM Wiring Diagram (8 of 8):
