Home >> Daewoo >> 1999 >> Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Electrical Wiring Diagrams >> Air Bag (SDM: Sensing & Diagnostic Module) >> Position of Connectors and Grounds

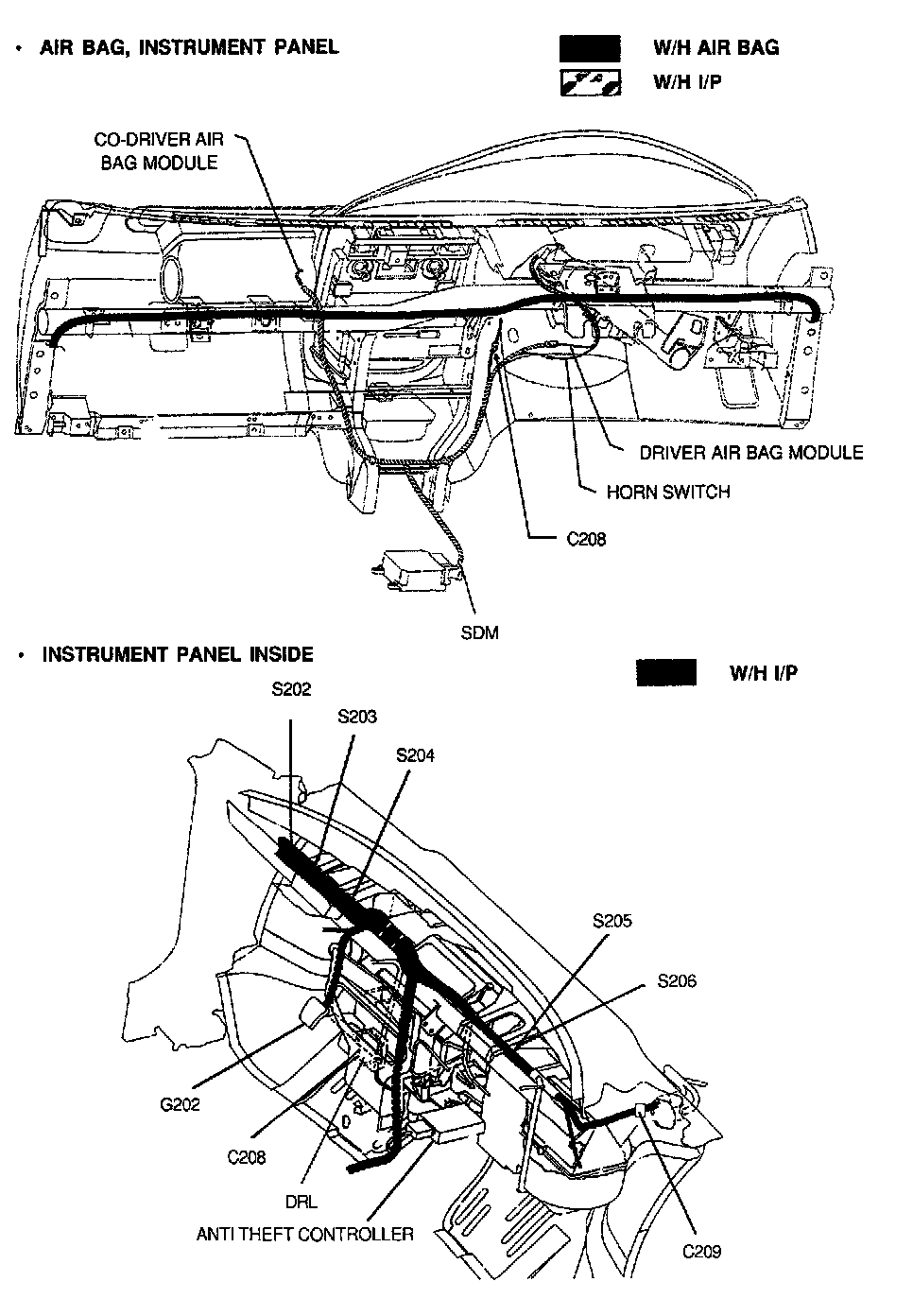

Position of Connectors and Grounds
