Control Assembly, HVAC

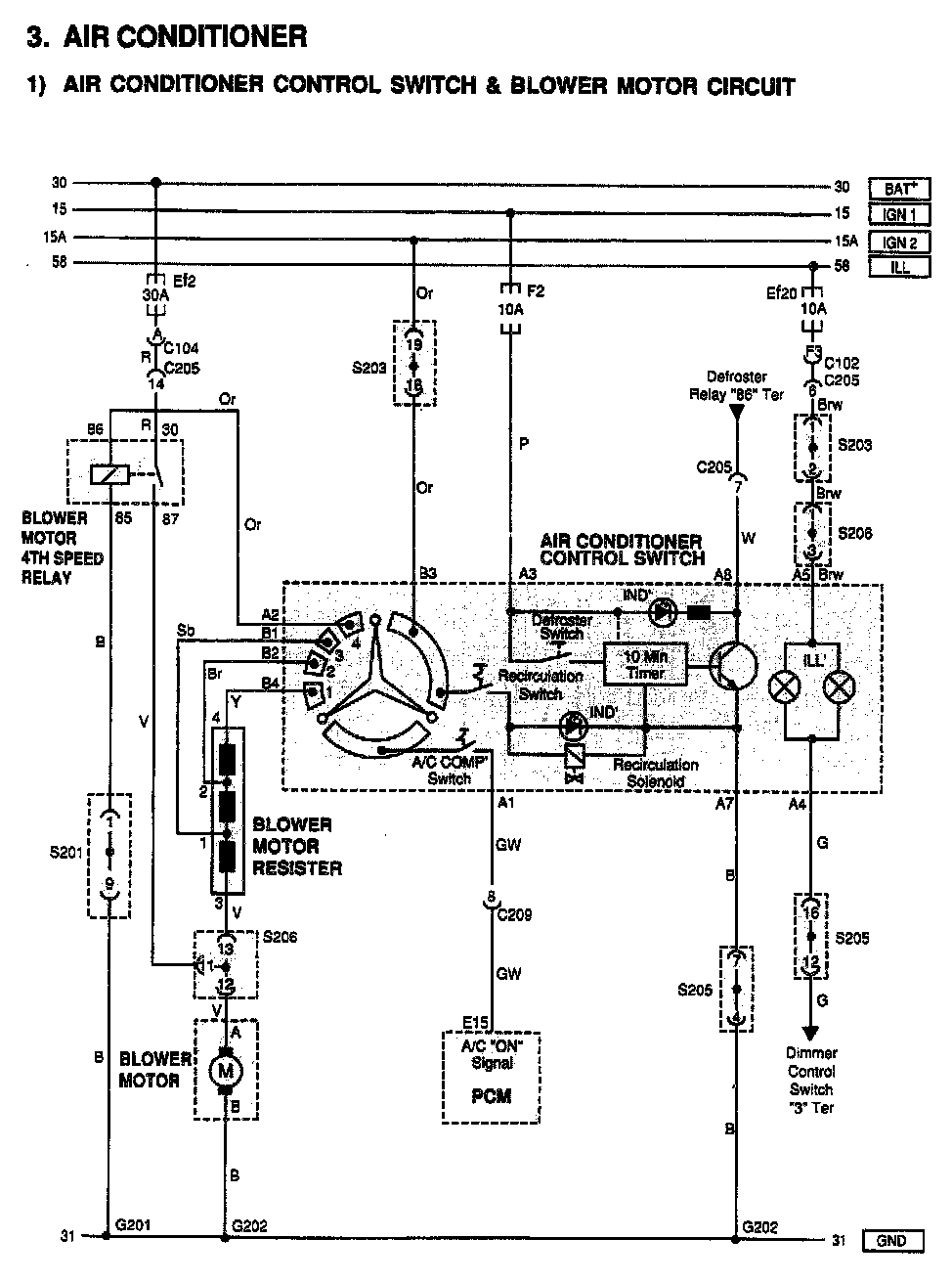

PCM/ECM Wiring Diagram A/C Control Switch and Blower Circuit:

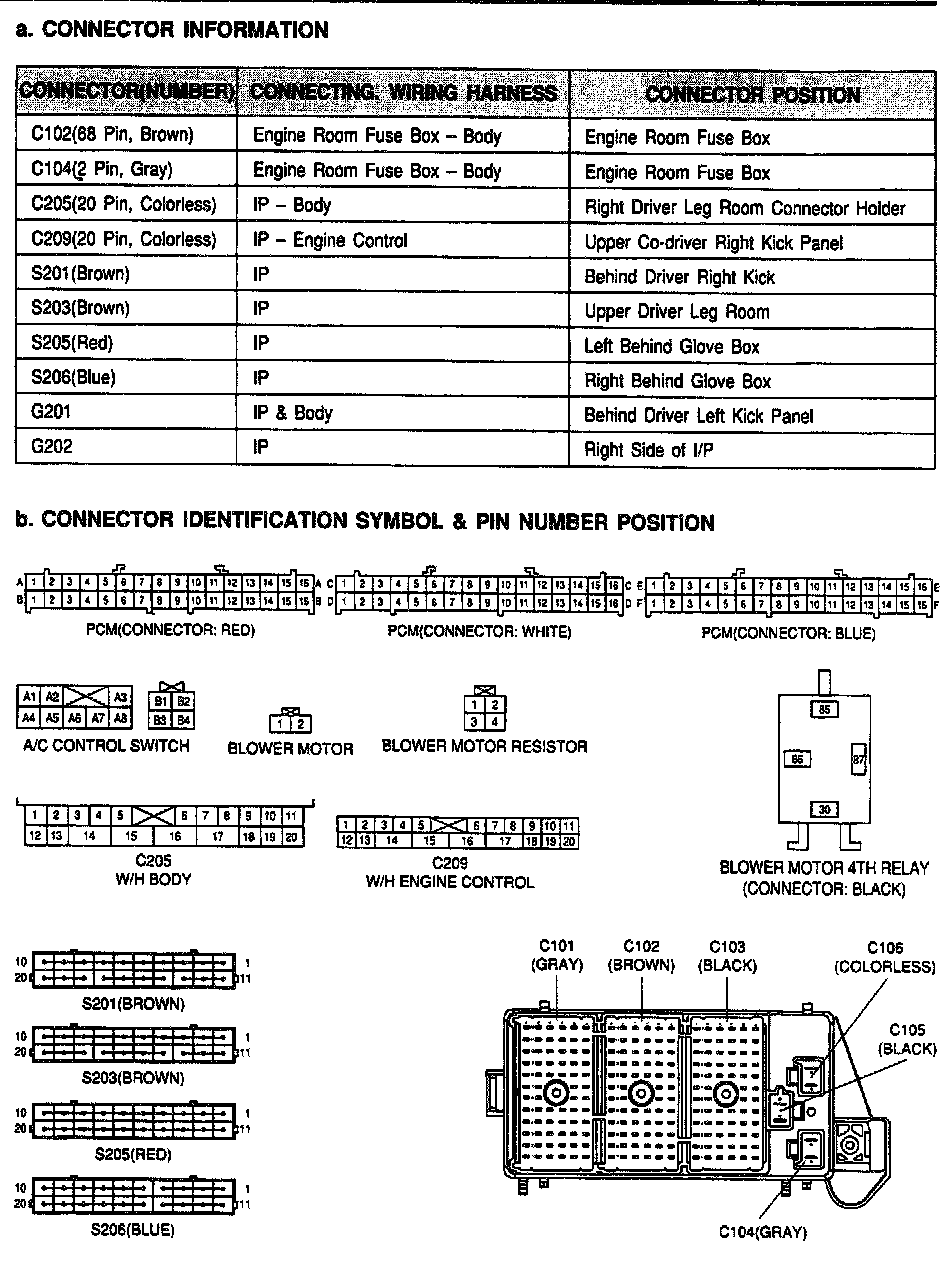

Connector Information:
