Home >> Daewoo >> 1999 >> Nubira CDX Hatchback L4-2.0L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body Wiring Schematics and Routing Diagrams >> Power Distribution Schematic

Power Distribution Schematic

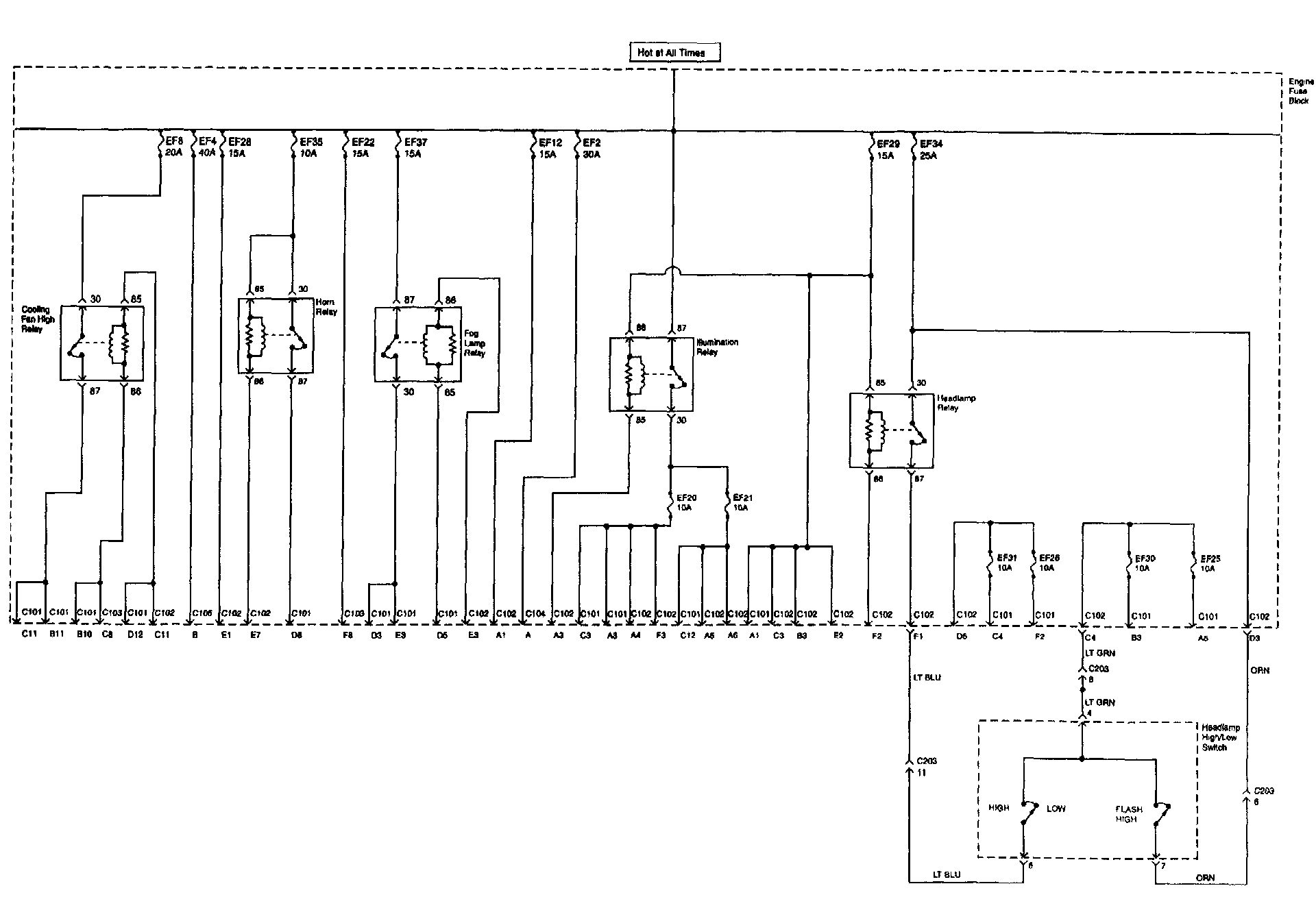

Part 1 Of 2:

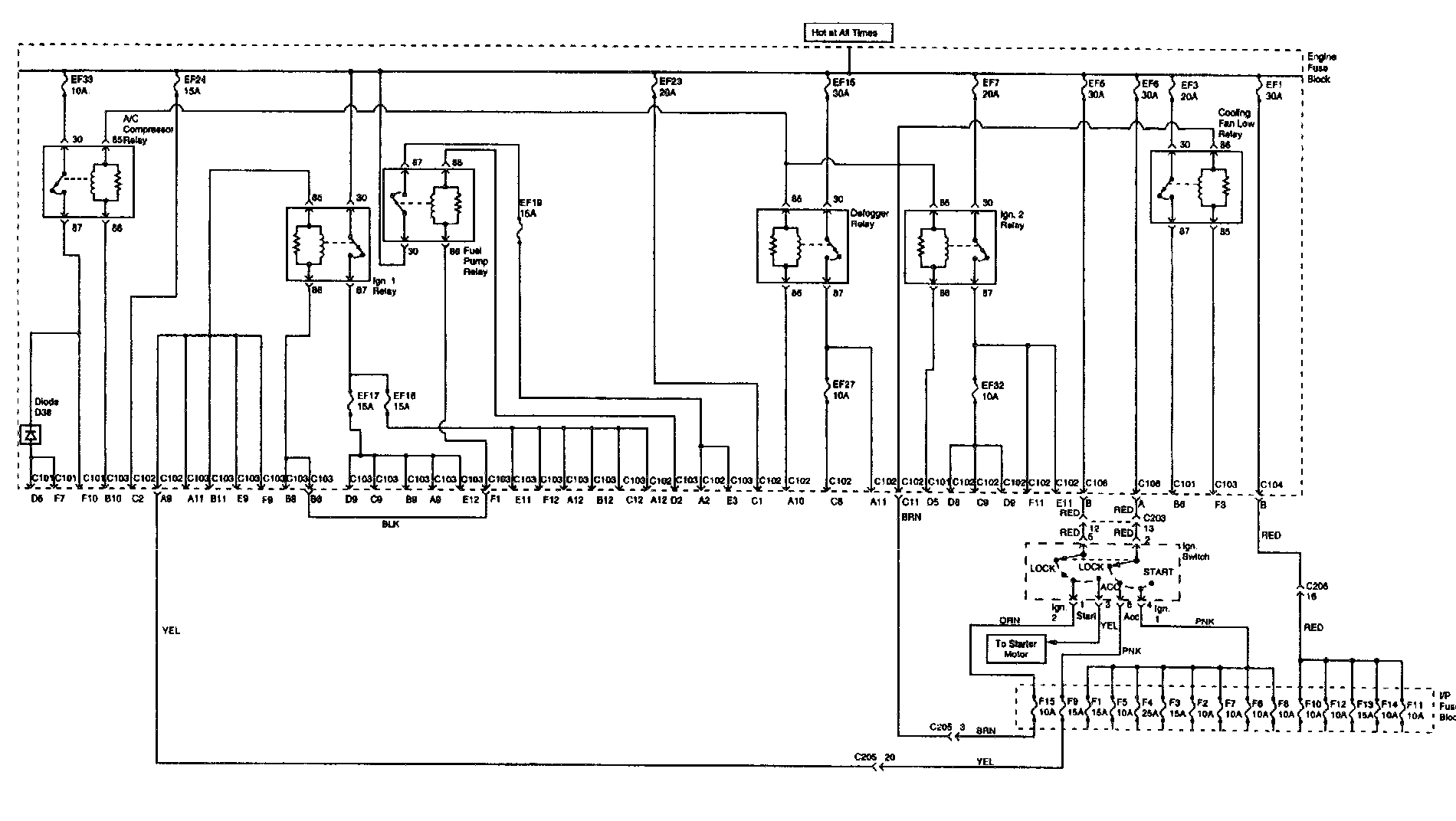

Part 2 Of 2:
