Cruise Control: Testing and Inspection

Test Description
The numbers below refer to steps on the diagnostic table.
5. This test is performed because the electromagnetic clutch in the cruise control actuator is grounded through the brake lamps.

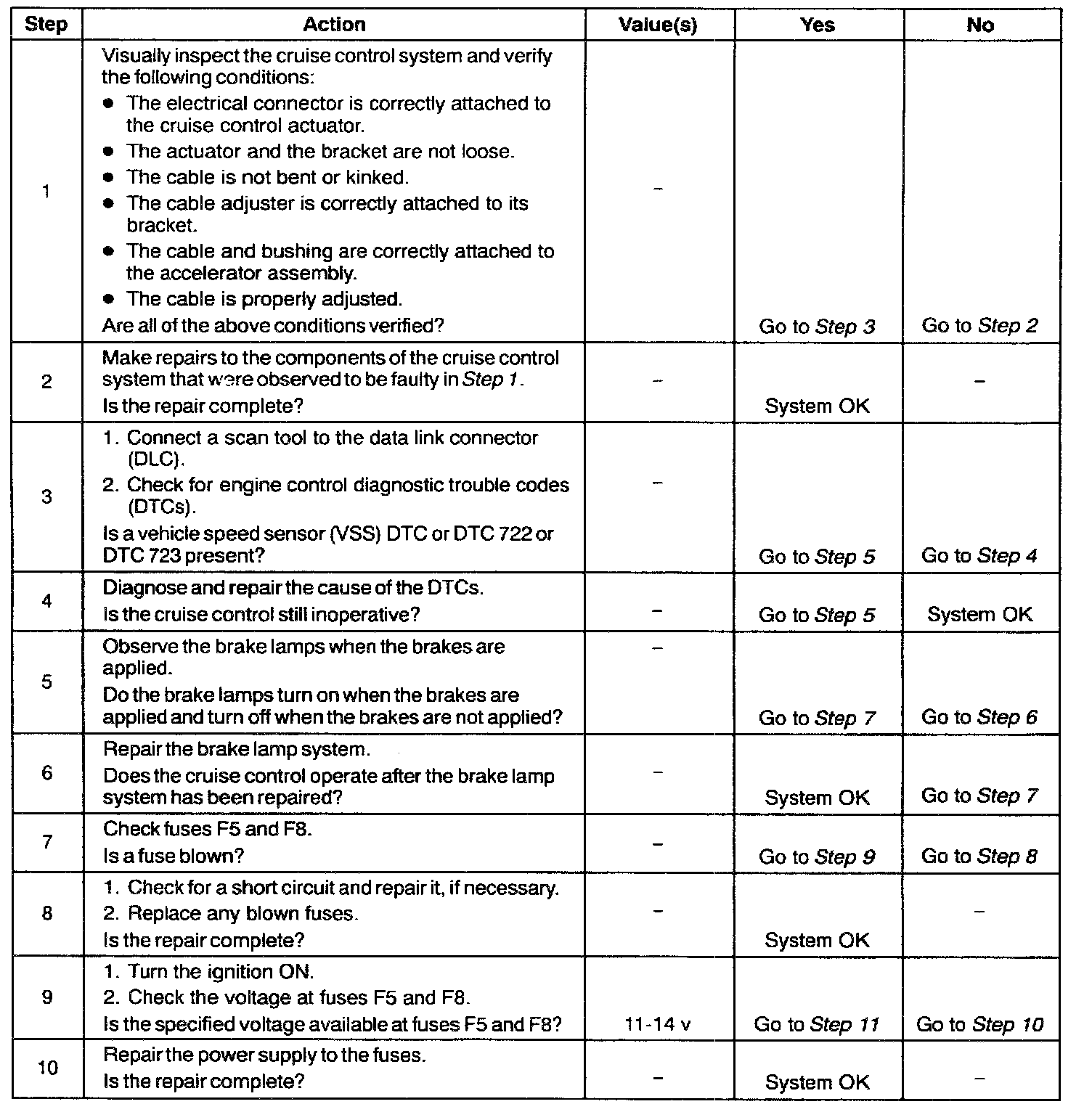

Steps 1 Thru 10:

Steps 13 Thru 21:

Steps 22 Thru 31:

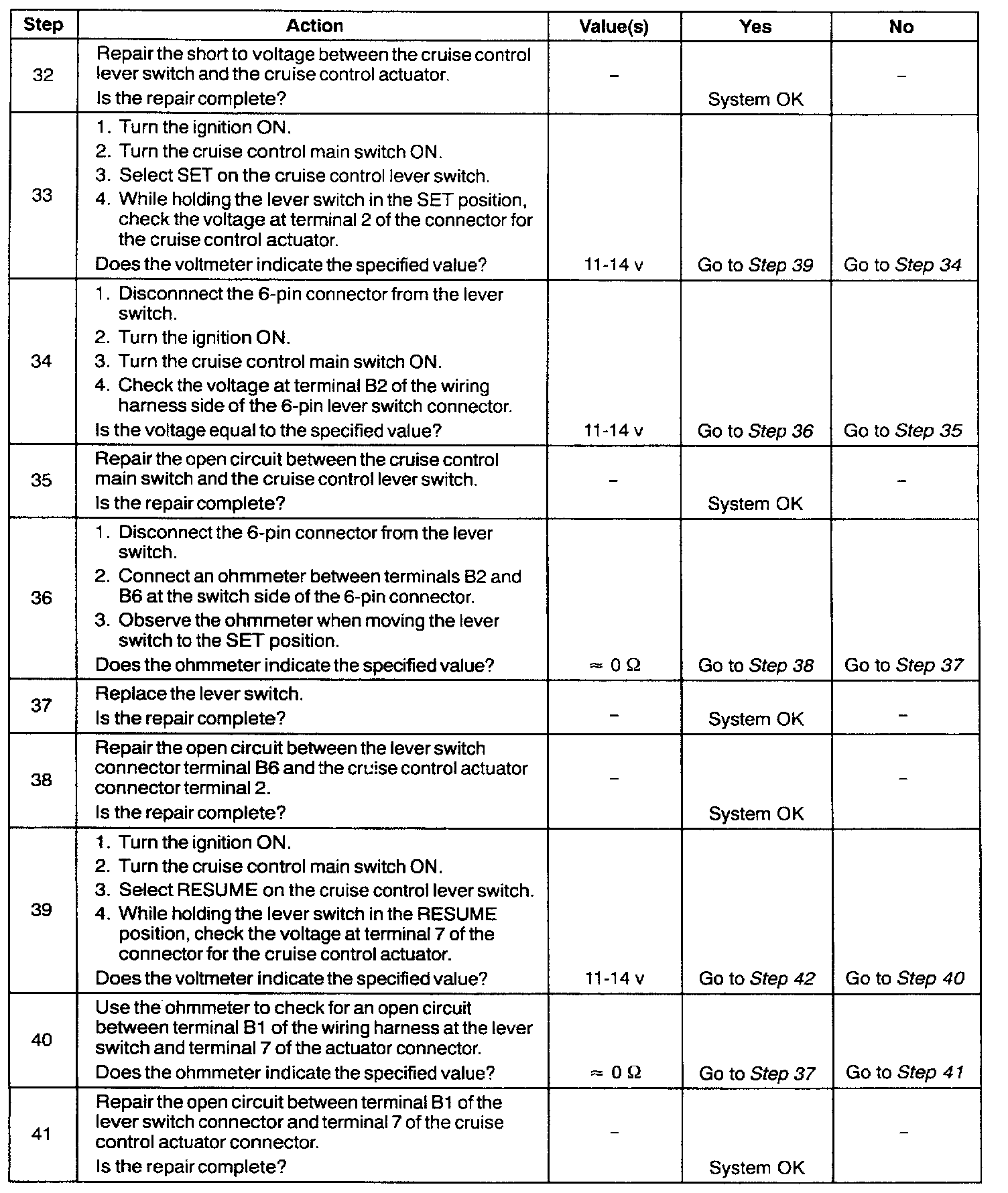

Steps 32 Thru 41:

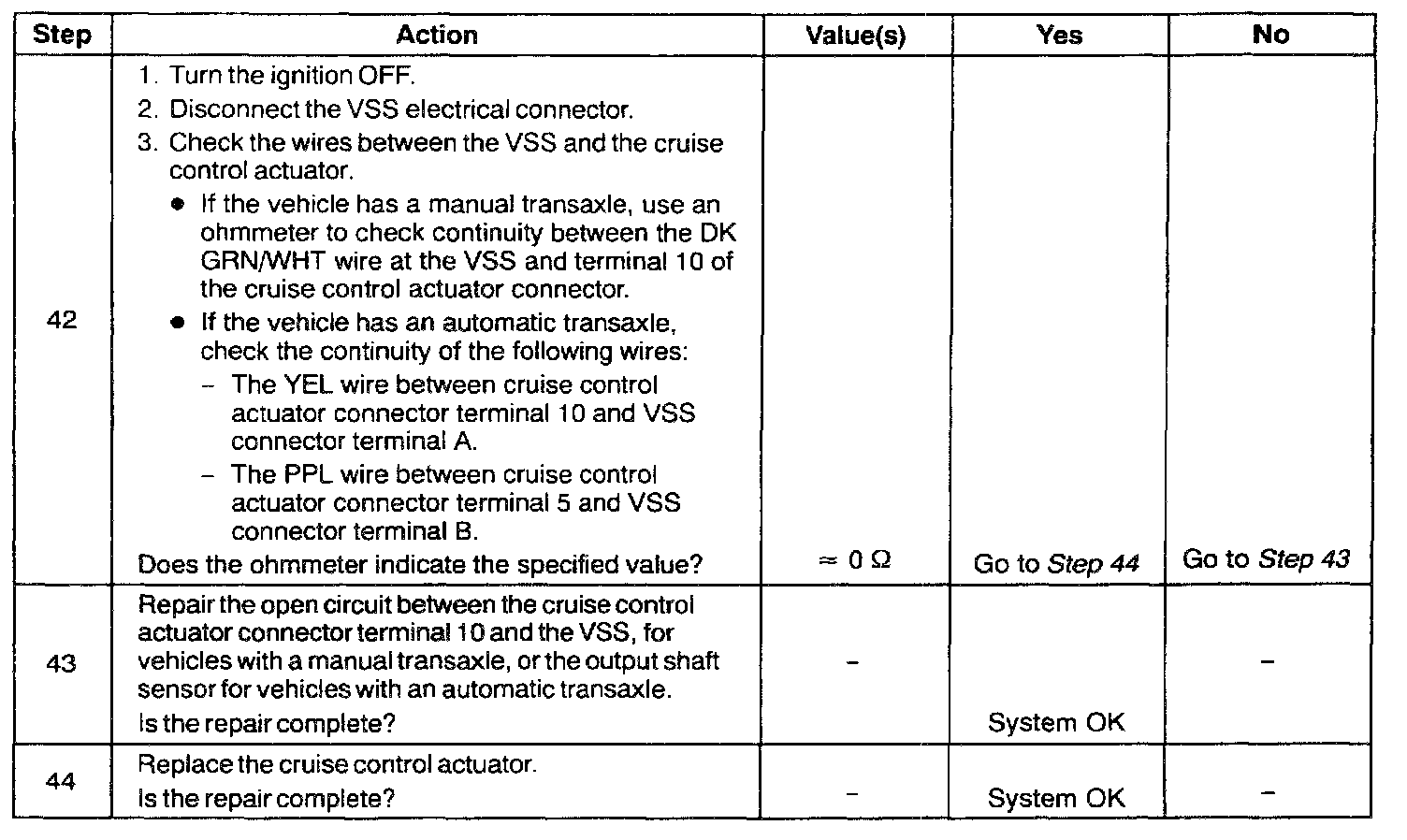

Steps 42 Thru 44:

Cruise Control Does Not Operate
