Parking Brake Handle

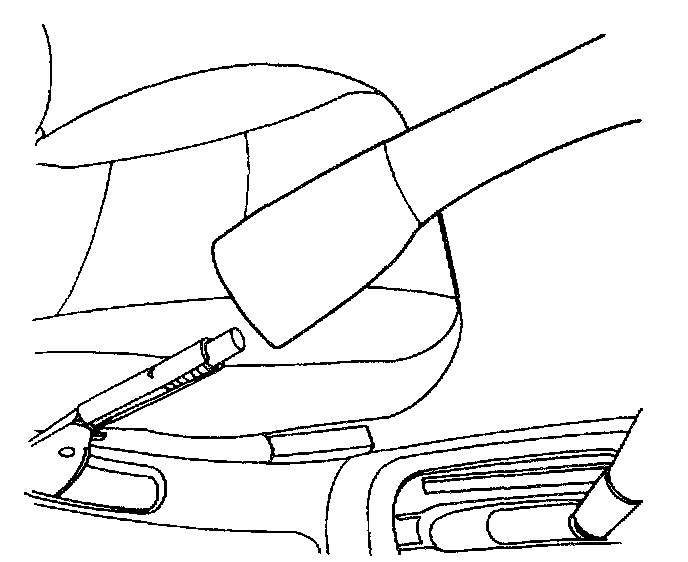

Removal Procedure
1. Remove the center console and detach the parking brake lever boot.





2. Slip the parking brake handle off the parking brake lever.

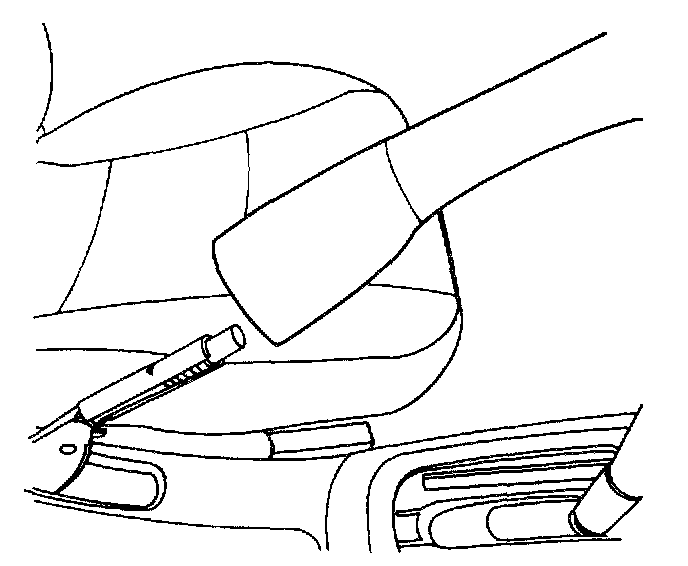

Installation Procedure





1. Push the parking brake handle as far as it will go on the parking brake lever.
2. Install the center console and the parking brake lever boot.
