Disassembly and Reassembly

Disassembly Procedure

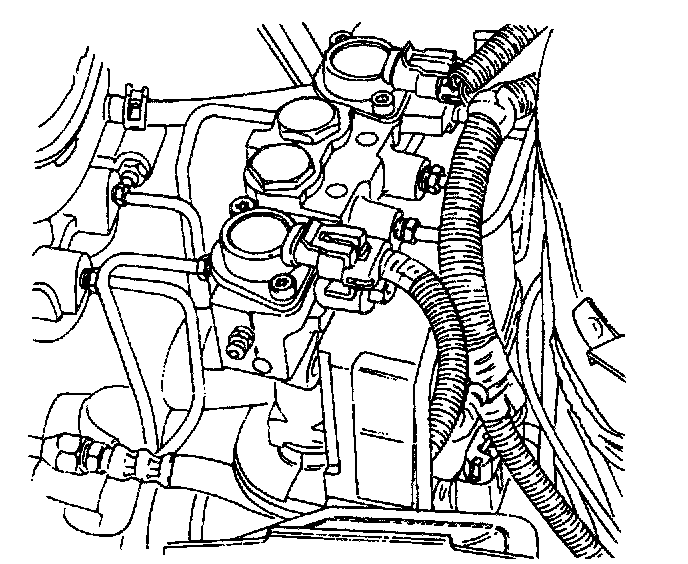

1. Remove the hydraulic modulator/motor pack assembly from the vehicle.
2. Remove the two solenoids from the hydraulic modulator/motor pack assembly.
3. Remove the gear cover from the hydraulic modulator/ motor pack assembly.

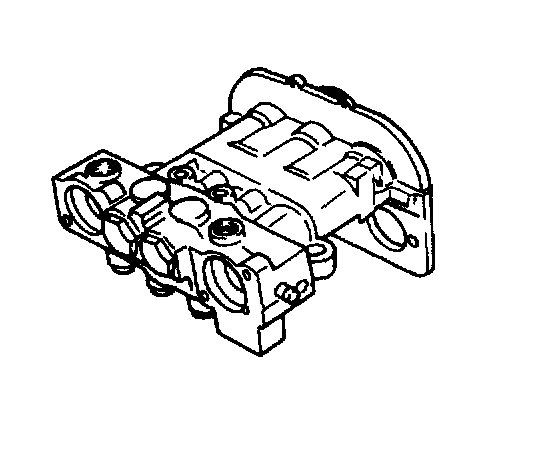

4. Remove the motor pack from the hydraulic modulator.

Important: No repair of the hydraulic modulator is authorized. Replace the modulator as an assembly.

Assembly Procedure
1. Install the motor pack onto the hydraulic modulator aligning the motor pack gears with the modulator gears.
2. Install the gear cover to the hydraulic modulator/motor pack assembly.
3. Install the solenoids onto the hydraulic modulator/motor pack assembly.





4. Install the hydraulic modulator/motor pack assembly into the vehicle.
