Disassembly and Reassembly

Disassembly Procedure:
1. Remove the master cylinder.
2. Remove the Brake Fluid Reservoir.





3. Remove the seal ring from the cylinder bore.

NOTICE: When removing the retaining ring, avoid damaging the piston or the cylinder wall.

Important: A welding rod or its equivalent can be used in a compensating port to keep the piston pressed.

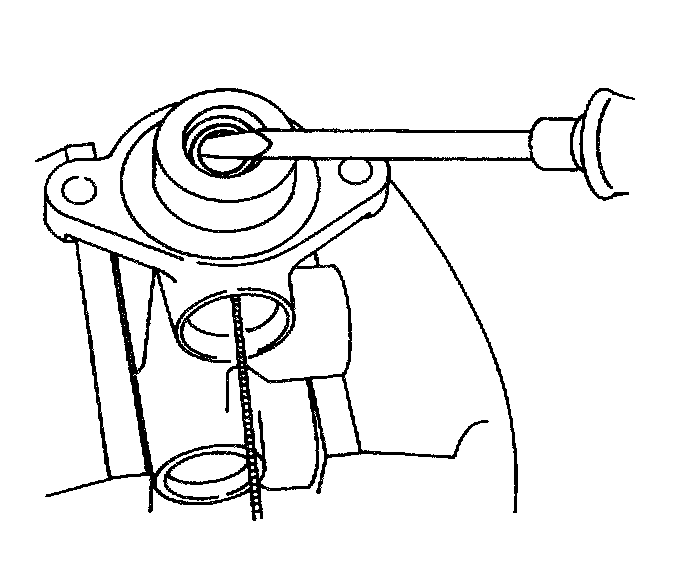

4. Remove and discard the retaining ring from the cylinder body (the non-ABS master cylinder body is shown) using a suitable screwdriver.

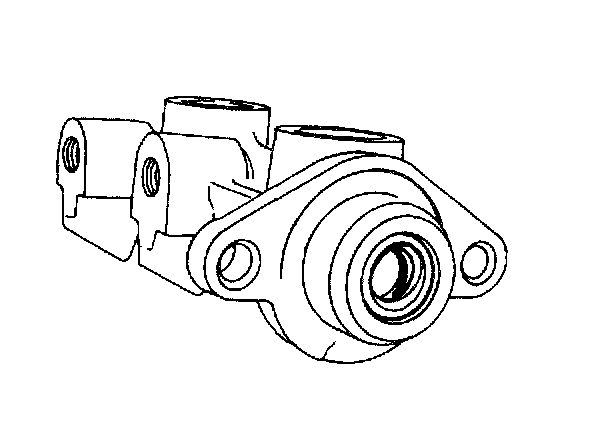

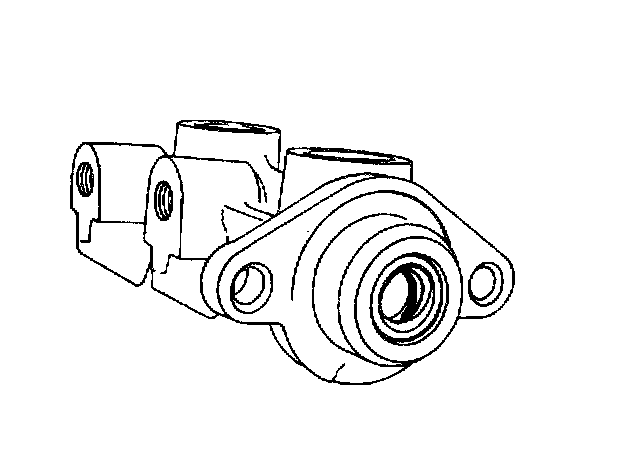

5. Remove the primary piston (the ABS master cylinder body is shown).
6. Carefully remove the secondary piston assembly, including the springs, from the master cylinder bore.

Assembly Procedure

NOTICE: Do not use abrasives in the master cylinder bore. Abrasives can damage the bore.

Important: Rubber parts and retaining rings must be discarded and replaced with new parts.
1. Clean all parts with denatured alcohol or clean brake fluid. Dry the parts with compressed air. Do not use lubricated shop air on brake parts, as this may damage rubber components.
2. Inspect the master cylinder bore for scoring or corrosion. If scoring or corrosion is evident, replace the master cylinder body.

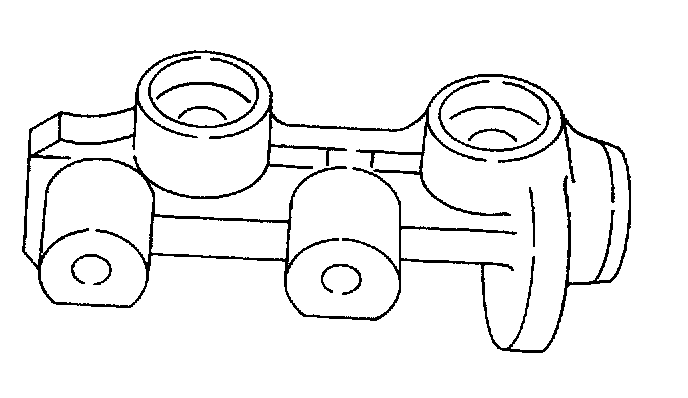

3. Lubricate the master cylinder bore (the non-ABS master cylinder is shown) with clean brake fluid.





4. Carefully insert the secondary piston assembly bore until the secondary piston contacts the base of the cylinder body. Use a wood or a plastic drift, if necessary.
5. Insert the primary piston.

6. Press the pistons into the cylinder bore using a wooden or a plastic drift.

NOTICE: When installing the new retaining ring, take care not to damage the cylinder bore.

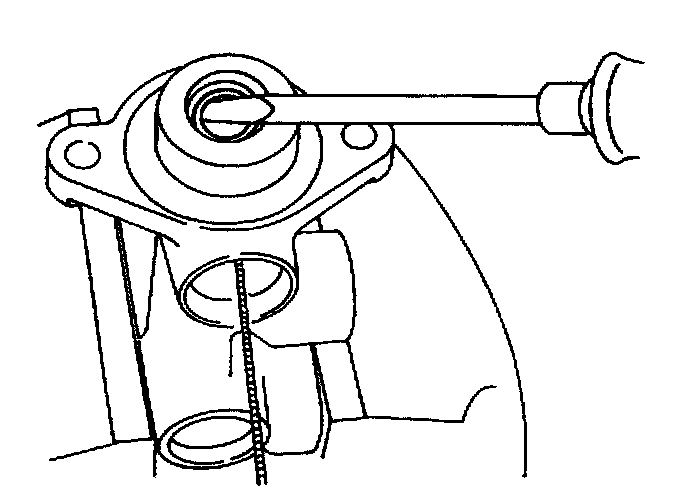

7. Insert the new retaining ring into the groove in the cylinder bore (the non-ABS cylinder body is shown). Remove the welding rod.
8. Move the pistons backward and forward after installation to check for free movement.

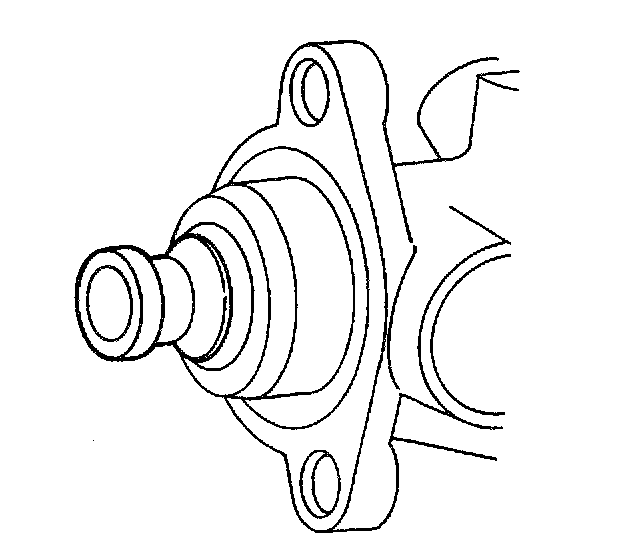

9. Lubricate the seal ring and insert the seal into the cylinder bore. The open side must face outward until the seal rests on the piston.
10. Install the brake fluid reservoir to the master cylinder.
11. Install the master cylinder assembly.
12. Raise and suitably support the vehicle.
13. Bleed the braking system. Brake Bleeding
14. Lower the vehicle.
