Rear

Removal Procedure
1. Raise and suitably support the vehicle.

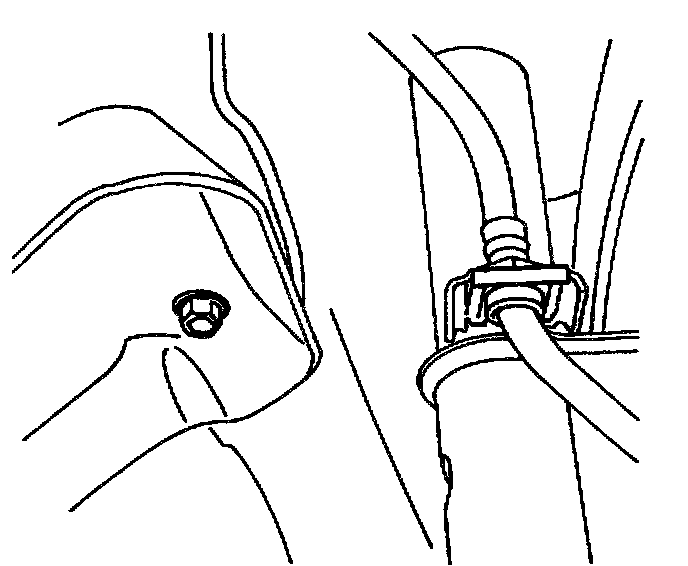

2. Disconnect the brake line from the disc brake hose at the wheel housing bracket on each side of the vehicle.
3. Remove the brake hose retainer.





4. Remove the rear disc brake hose retainer and the brake hose from the bracket on the steering knuckle shaft.

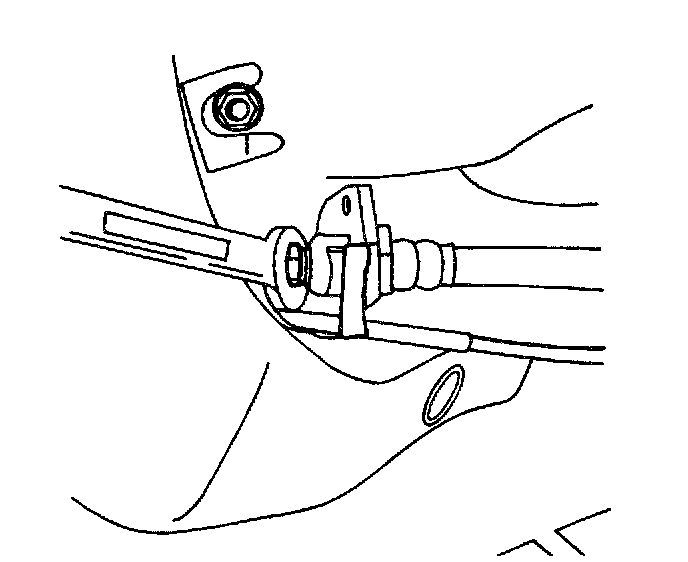

5. Remove the rear disc brake hose from the caliper.

Installation Procedure
1. Install the rear disc brake hose to the caliper.
Tighten
Tighten the rear disc brake hose-to-caliper bolt to 32 Nm (24 ft. lbs.).
2. Install the rear disc brake hose and the retainer on the bracket on the steering knuckle shaft





3. Install the rear disc brake line to the brake hose on the wheel housing bracket.
Tighten
Tighten the brake line to 16 Nm (112 ft. lbs.).
4. Lower the vehicle.
5. Bleed the brake system. Brake Bleeding
6. Check the brake system for leaks.
