Front

Removal Procedure
1. Raise and suitably support the vehicle.





2. Disconnect the brake line from the brake hose support bracket on the wheel housing on each side of the vehicle.
3. Remove the retainer.

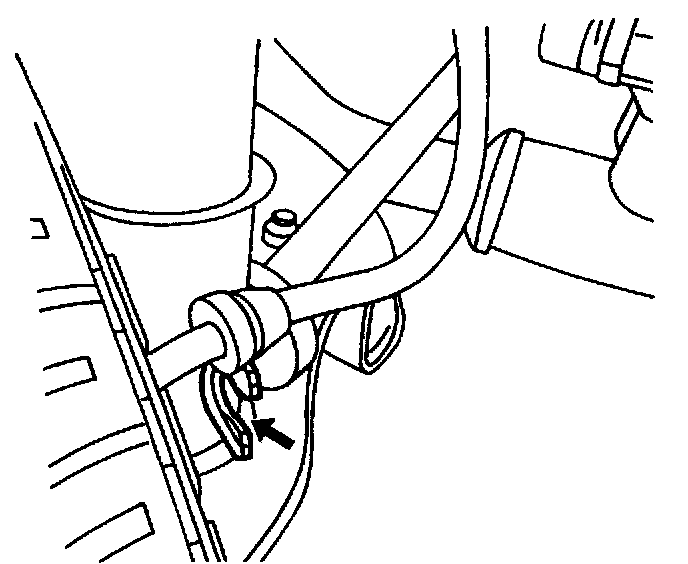

4. Disconnect the brake hose from the "C" bracket on the steering knuckle shaft.

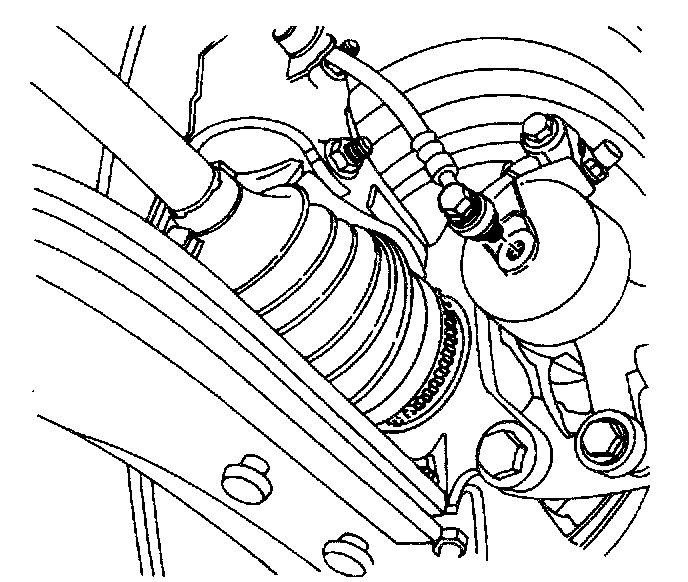

5. Remove the bolt from the brake caliper.
6. Remove the seal rings and the disc brake hose.

Installation Procedure





1. Install the new disc brake hose to the caliper with the new seal rings and the bolt.
Tighten
Tighten the front disc brake hose-to-caliper bolt to 40 Nm (30 ft. lbs.).





2. Slide the brake hose on the steering knuckle shaft "C" bracket.





3. Connect the brake line to the brake hose on the wheel housing bracket on each side of the vehicle.
Tighten
Tighten the brake line to 16 Nm (12 ft. lbs.). Lower the vehicle.
5. Bleed the brake system. Brake Bleeding
6. Check the brake system for leaks.
