Rear Rotor

Removal Procedure
1. Raise and suitably support the vehicle.
2. To preserve wheel balance, mark the position of the rear wheels relative to the wheel hubs and remove the wheels.

NOTICE: To prevent damage to the brake hose, do not hang the caliper from the brake hose.





3. Remove the caliper.

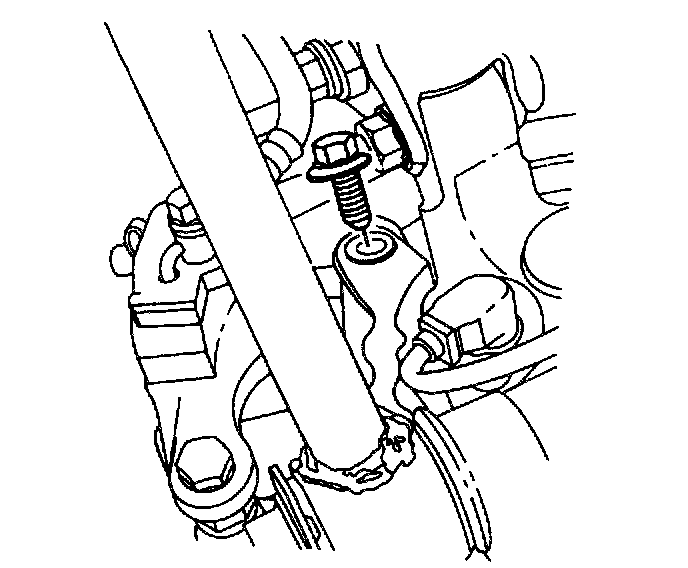

4. Remove the caliper bracket.

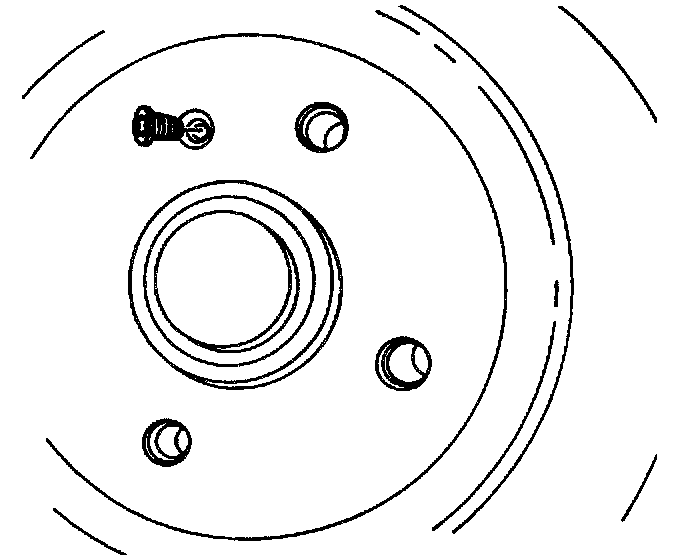

5. Remove the rotor detent screw.
6. Remove the rotor.

Installation Procedure
1. Inspect the rotor.





2. Install the rotor with the detent screw.
Tighten
Tighten the rotor detent screw to 4 Nm (35 inch lbs.).





3. Install the caliper bracket.
Tighten
Tighten the caliper bracket mounting bolts to 56 Nm (41 ft. lbs.).
3. Install the caliper.
4. Align the match marks that were made before removal, and install the rear wheels.
5. Lower the vehicle.
