Rear

Removal Procedure
1. Raise and suitably support the vehicle.
2. To preserve wheel balance, mark the position of the rear wheels relative to the wheel hubs and remove the wheels.





3. Remove the lower caliper mounting bolt.

Important: It is not necessary to remove the caliper to service the brake shoes.





4. Pivot the caliper upward.

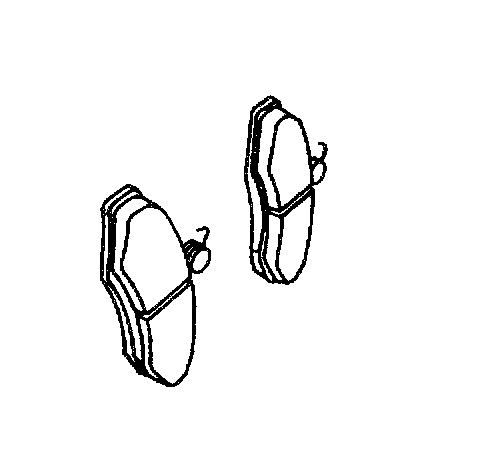

5. Remove the brake shoes.

Installation Procedure
1. Measure the minimum shoe lining thickness.

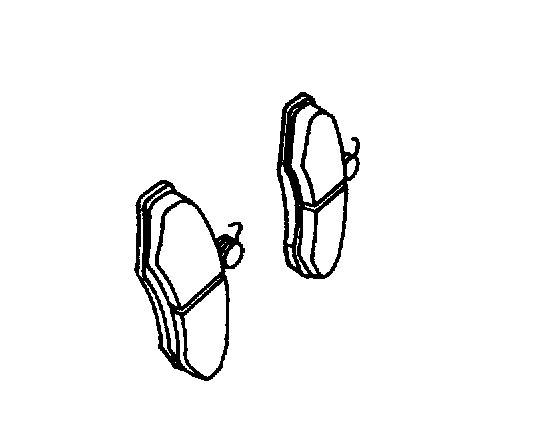

2. Install the brake shoes.
3. Push the piston inward, if needed.

NOTICE: Do not damage the piston seal when the caliper is pivoted downward.





4. Pivot the caliper downward and install the lower bolt.
Tighten
Tighten the lower caliper mounting bolt to 31 Nm (23 ft. lbs.).
5. Align the match marks that were made before removal and install the rear wheels.
6. Lower the vehicle.
