Hydraulic Modulator Bleeder Valve

Removal Procedure
1. Place a shop cloth or suitable container below the bleeder valve to catch escaping brake fluid.

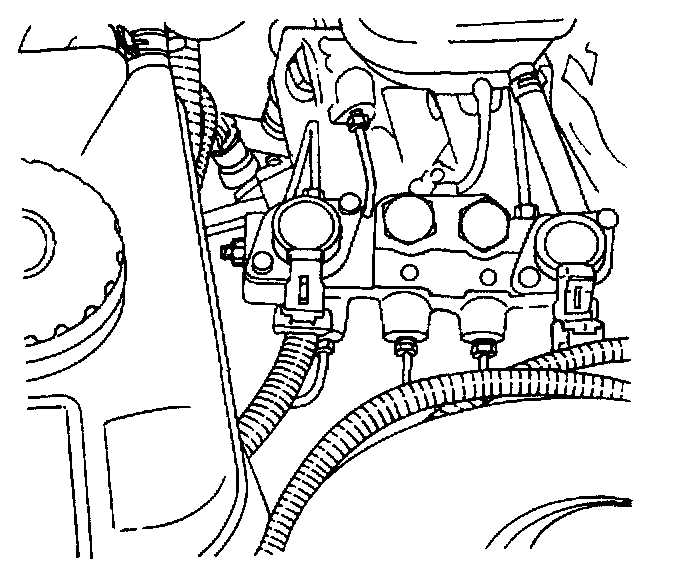

2. Unscrew and remove the bleeder valve from the hydraulic modulator. This illustration shows the left-side bleeder valve. There is another bleeder valve on the right side.

Installation Procedure





1. Install the bleeder valve into the hydraulic modulator. Do not tighten fully.
2. Bleed the brake system. Brake Bleeding
