Rear Door Secondary Weatherstrip

Removal Procedure




1. Remove the interior garnish molding.
2. Remove the screws and the exterior garnish molding.

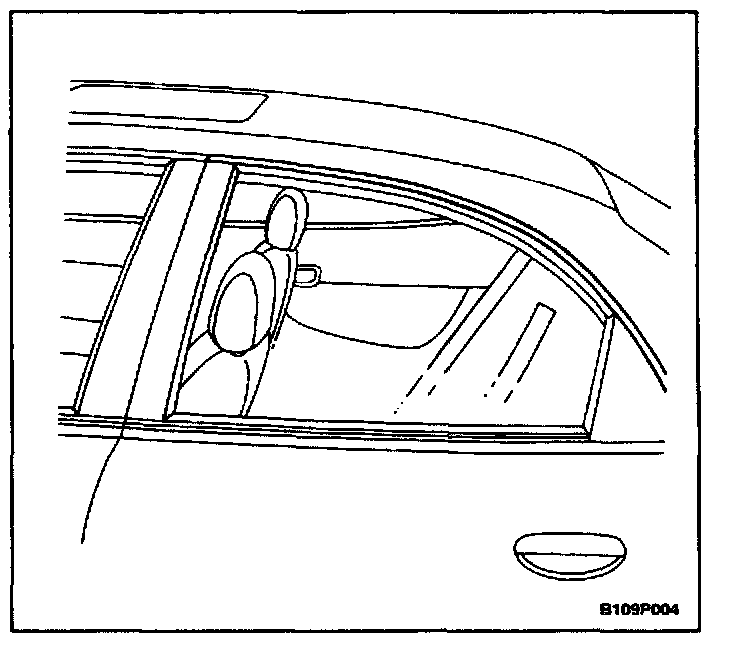

3. Remove the rear door secondary weatherstrip.




Installation Procedure

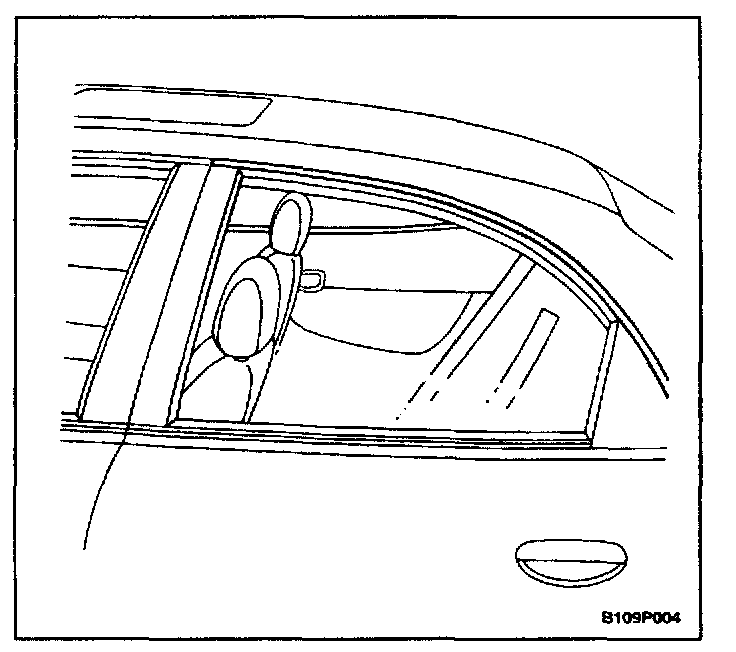

1. Install the rear door secondary weatherstrip.

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

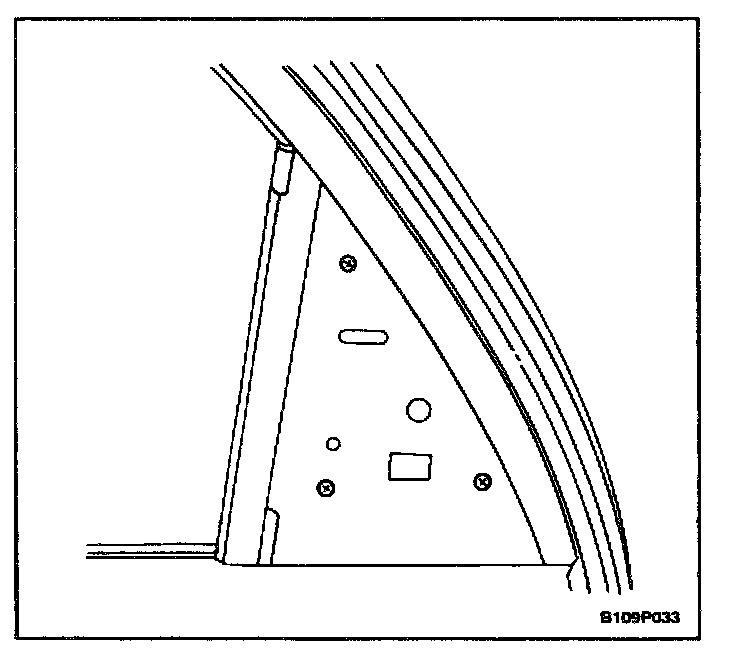

2. Install the exterior garnish molding with the screws.

Tighten
Tighten the rear door exterior garnish molding screws to 1.5 Nm (13 lb.in).

3. Install the interior garnish molding.
