Door Lock Cylinder: Service and Repair

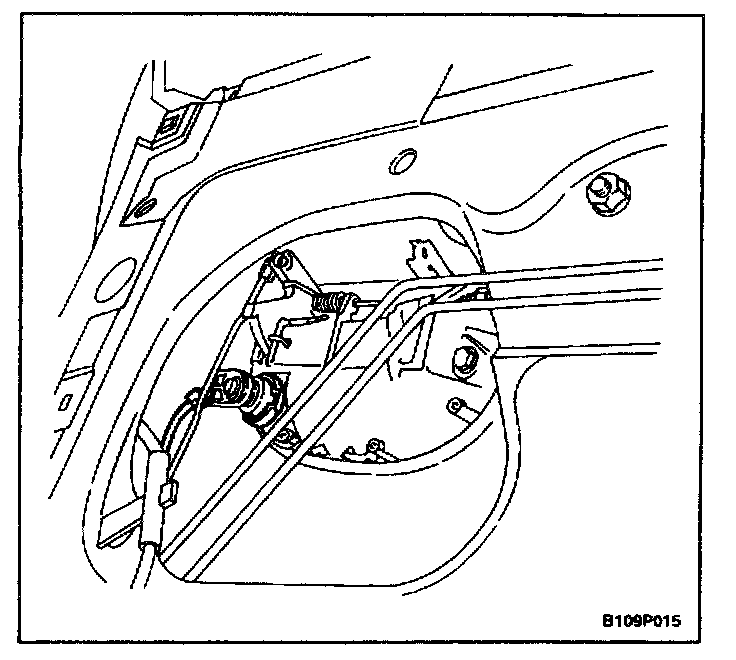

Removal Procedure
1. Remove the door seal trim.
2. Disconnect the outside door handle lock rod.
3. Remove the retaining clip and the lock cylinder.

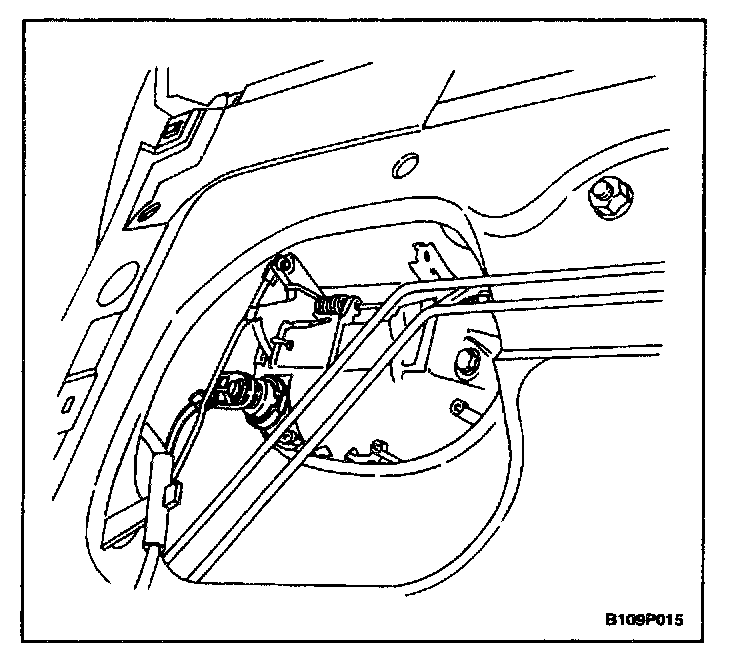

Installation Procedure
1. Install the lock cylinder with the retaining clip.
2. Connect the outside door handle lock rod.
3. Install the door seal trim.
