Drink Holders: Service and Repair

Removal Procedure




1. Remove the screws and the glove box.

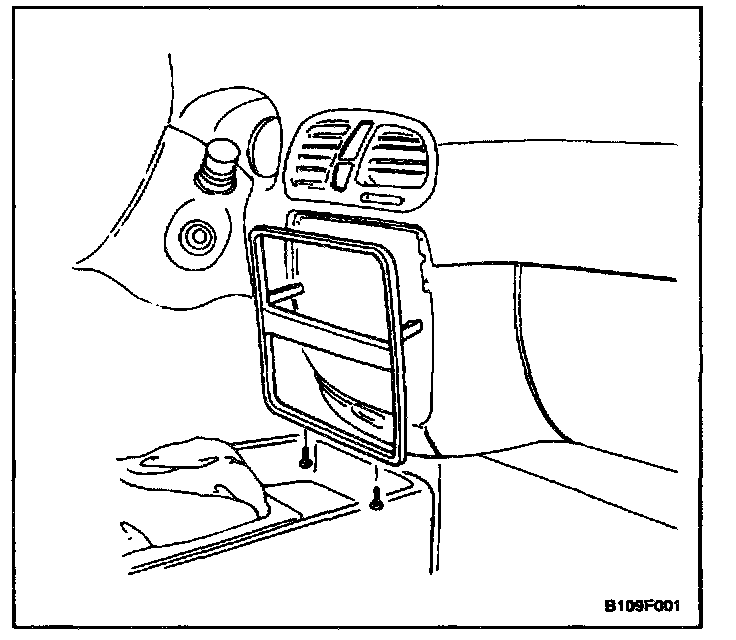

2. Remove the screw and driver/passenger knee bolster.




3. Remove the screws and the cup holder from the audio system trim plate.

Installation Procedure




1. Install the cup holder to the audio system trim plate with the screws.

Tighten
Tighten the cup holder screws to 2.5 Nm (22 lb.in).




2. Install the audio system trim plate with the screws.
3. Install glove box, driver/passenger knee bolster with the screws.
