Ash Tray: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the screws and the glove box.




3. Remove the screw and driver/passenger knee bolster.

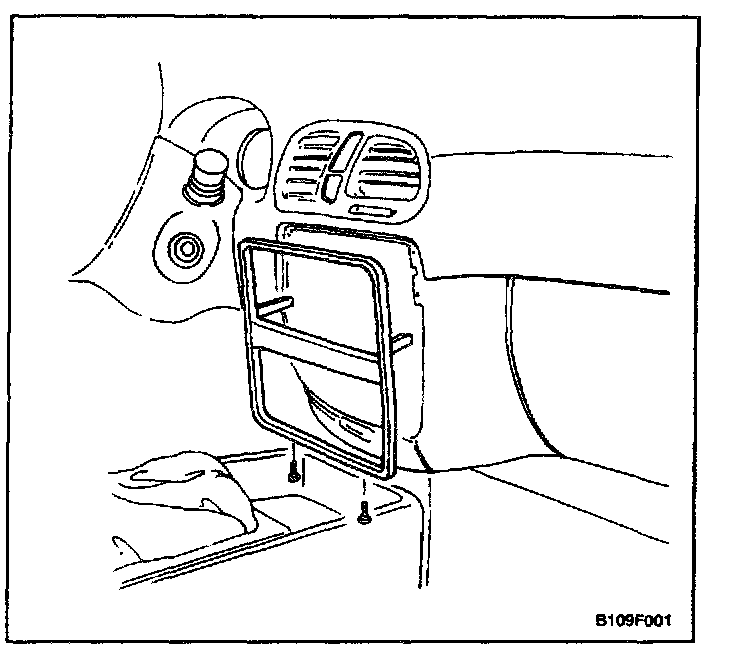

4. Remove the screws and the audio system trim plate.
5. Disconnect the ashtray electrical connector.

Installation Procedure




1. Connect the ashtray electrical connector.
2. Install the screw and the ashtray housing.

Tighten
Tighten the ashtray housing screw to 2.5 Nm (22 lb.in).

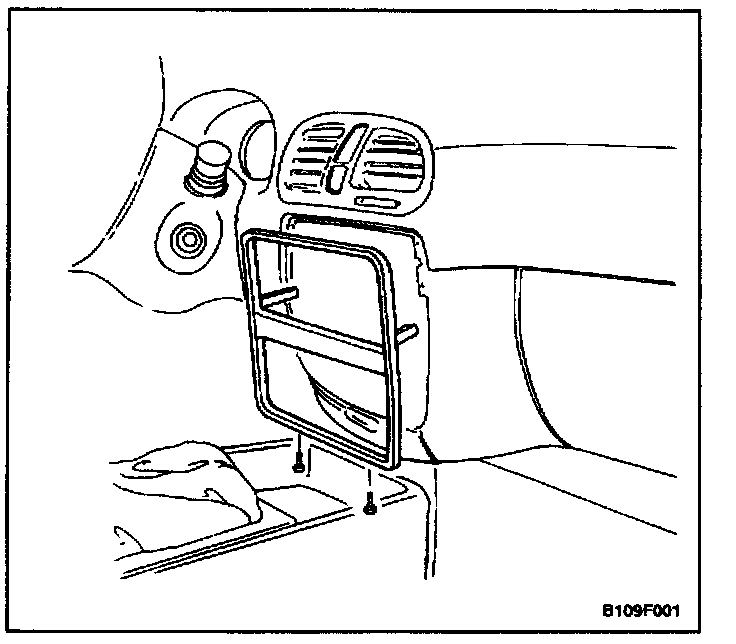

3. Install the audio system trim plate with the screws
4. Install glove box, driver/passenger knee bolster with the screws.
5. Connect the negative battery cable.
