Front Door Limiter: Service and Repair

Removal Procedure
1. Remove the door trim panel.
2. Reposition the door seal trim.

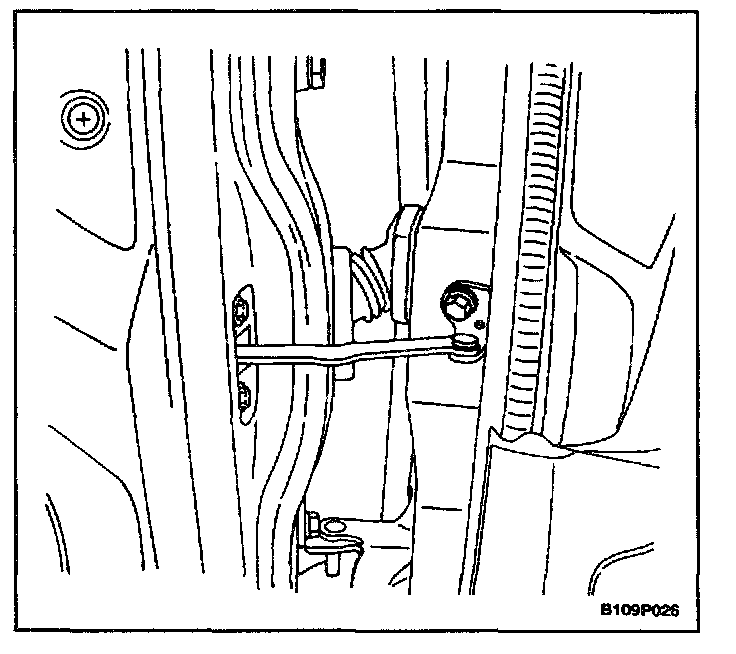

3. Remove the bolts on the door and on the body.
4. Remove the door hold open link.




Installation Procedure

NOTE: Dissimilar metals in direct contact with each 0ther may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

1. Install the door hold open link to the door and the body with the bolts.

Tighten
Tighten the door hold open link-to-body bolt to 27 Nm (20 lb.ft).
Tighten the door hold open link-to-door bolts to 6 Nm (53 lb.in).

2. Reposition the door seal trim.
3. Install the door trim panel.
