Tweeter Speakers




Removal Procedure
1. Disconnect the negative battery cable.

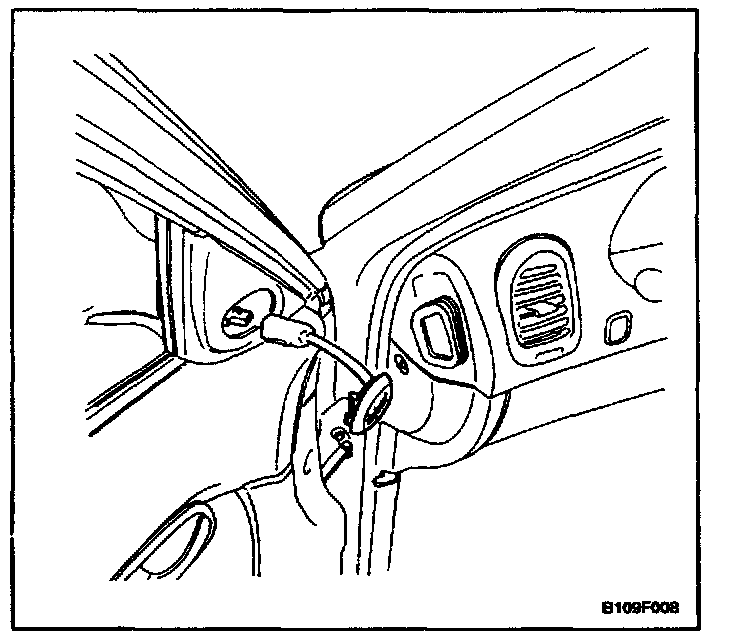

2. Remove the tweeter speaker by prying the tweeter speaker off of the front door eschutcheon.
3. Disconnect the electrical connector.




Installation Procedure
1. Connect the electrical connector.
2. Install the tweeter speaker by snapping the tweeter speaker onto the front door eschutcheon.
3. Connect the negative battery cable.
