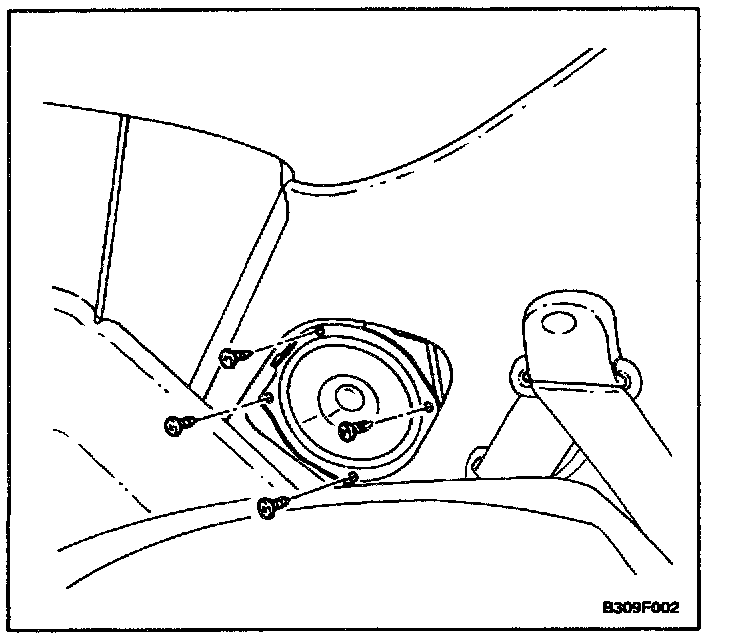

Rear Speakers (Hatchback)

(Hatchback Shown, Wagon Similar)




Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the rear speaker access cover.
3. Remove the screws and the rear speaker.
4. Disconnect the electrical connector.




Installation Procedure
1. Connect the electrical connector.

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

2. Install the rear speaker with the screws.

Tighten
Tighten the rear speaker screws to 4 Nm (35 lb.in).

3. Install the rear speaker access cover.
4. Connect the negative battery cable.
