Radio/Stereo: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable

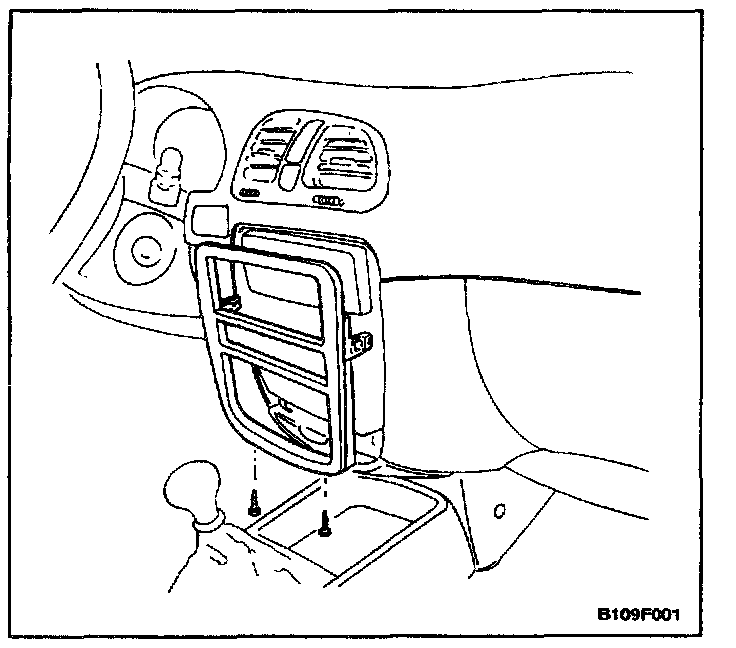

2. Remove the audio system trim plate screws and the audio system trim plate.




3. Remove the audio system bolts and the audio system.

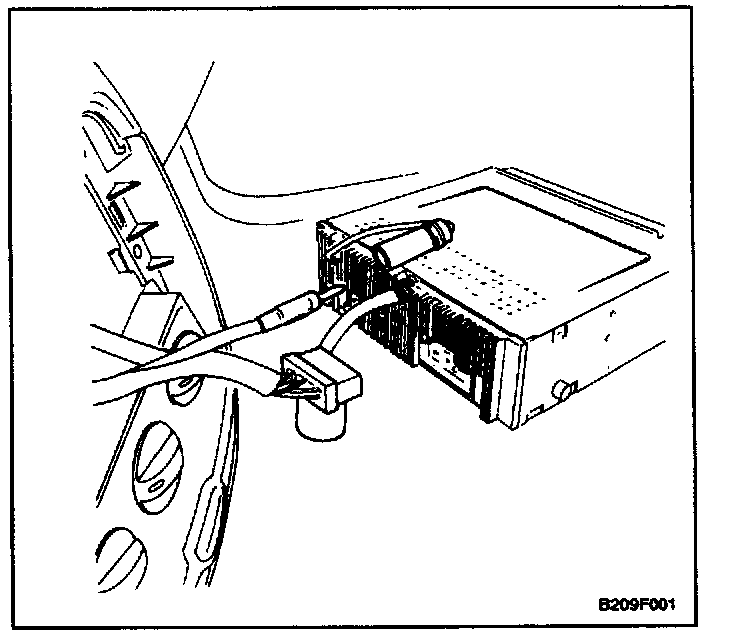

4. Disconnect the audio system electrical connector and the antenna cable.

Installation Procedure

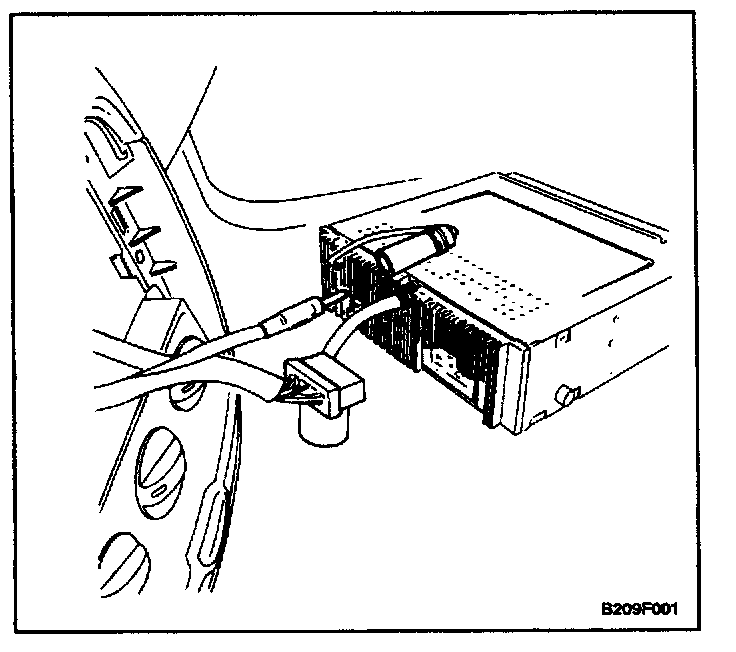

1. Connect the audio system electrical connector and the antenna cable.




2. Install the audio system with the bolts.

Tighten
Tighten the audio system bolts to 4 Nm (35 lb.in).

3. Install the audio system trim plate with the screws.
4. Connect the negative battery cable.
5. Enter the security code.
