Detection Coil

Removal Procedure

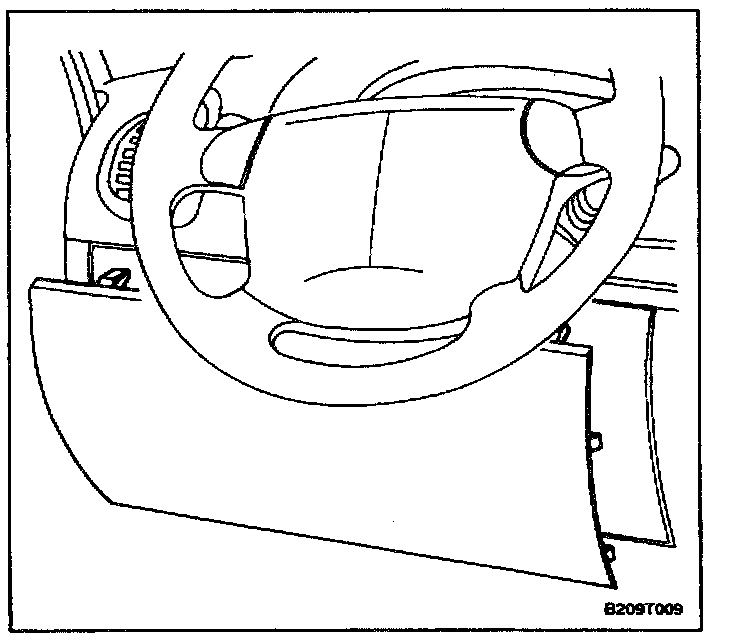

1. Carefully pull the knee bolster trim panel until it is loose from its retaining clips.




2. Slide the knee bolster trim panel upward and pull it outward to remove it.

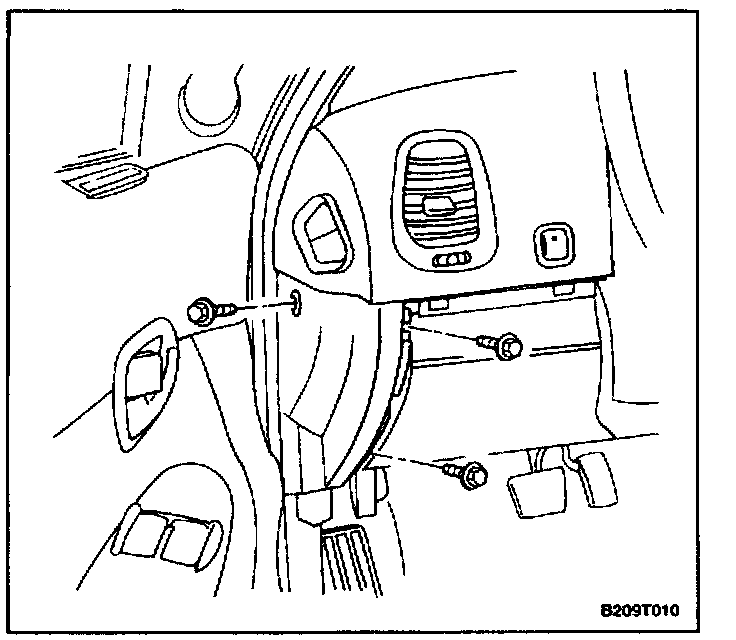

3. Remove the instrument panel side cover.

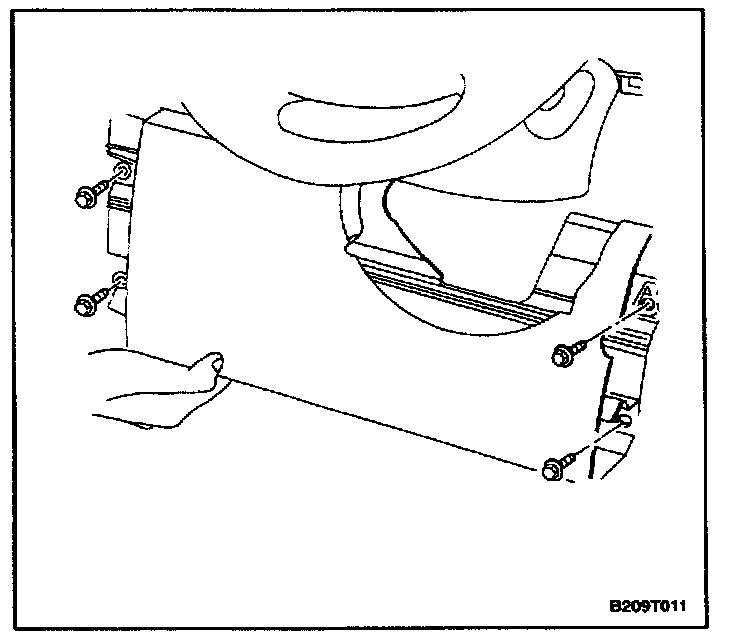

4. Remove the bolts and the knee bolster.




5. Remove the steering column lower cover.
6. Disconnect the two-pin connector from the immobilizer.

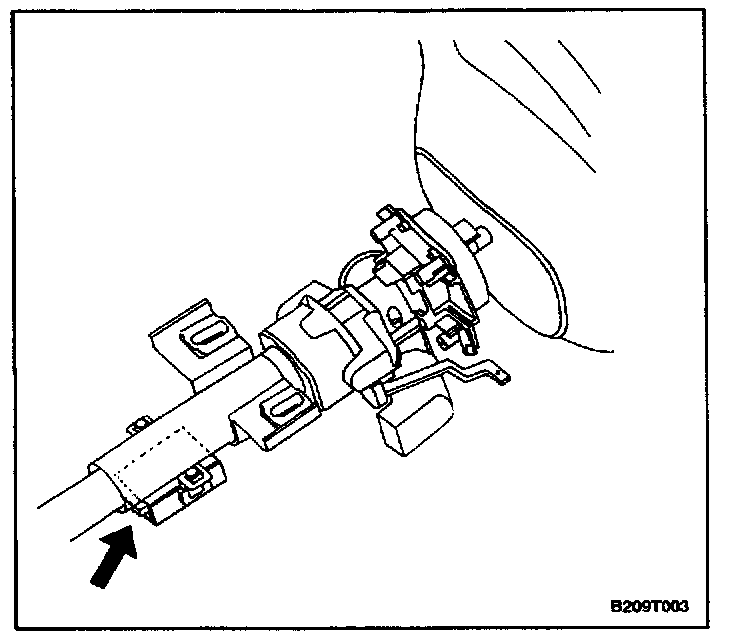

7. Pry the detection coil away from the lock cylinder. If the detection coil will be replaced with a new one, it does not matter if the key position trim ring is damaged during removal. A new trim ring is part of the new detection coil.

Installation Procedure




1. Install the detection coil by pressing it onto the lock cylinder until it snaps in place.
2. Connect the two-pin connector to the immobilizer.
3. Install the steering column lower cover.

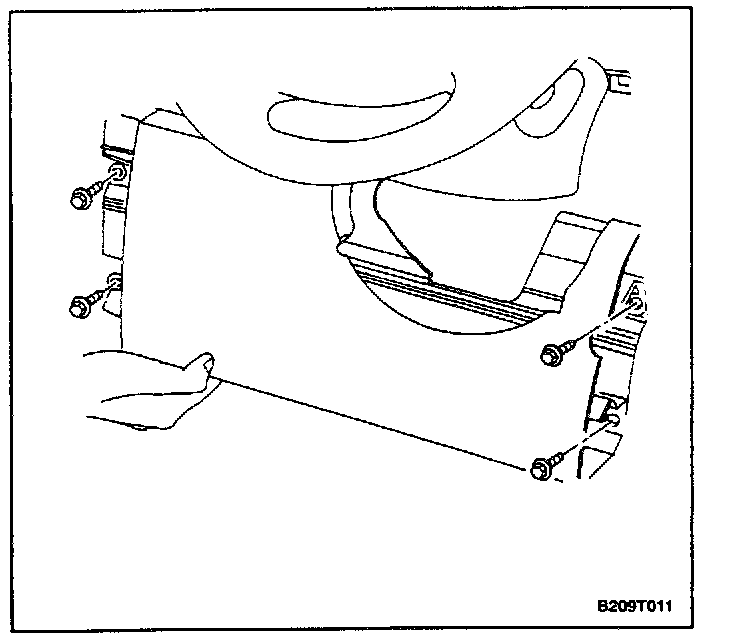

4. Install the knee bolster with the bolts.

Tighten
Tighten the knee bolster mounting bolts to 22 Nm (16 lb.ft).




5. Install the instrument panel side cover.

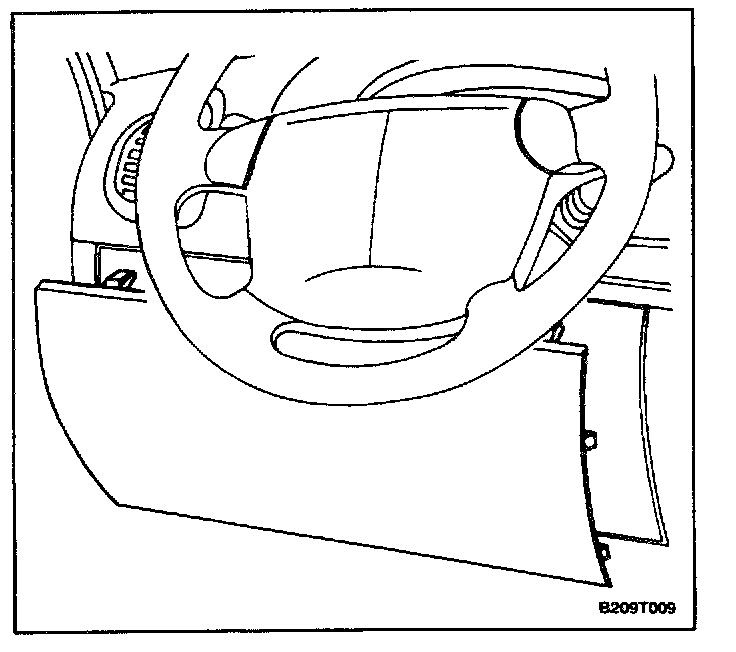

6. Install the knee bolster trim panel.
