Siren

Removal Procedure

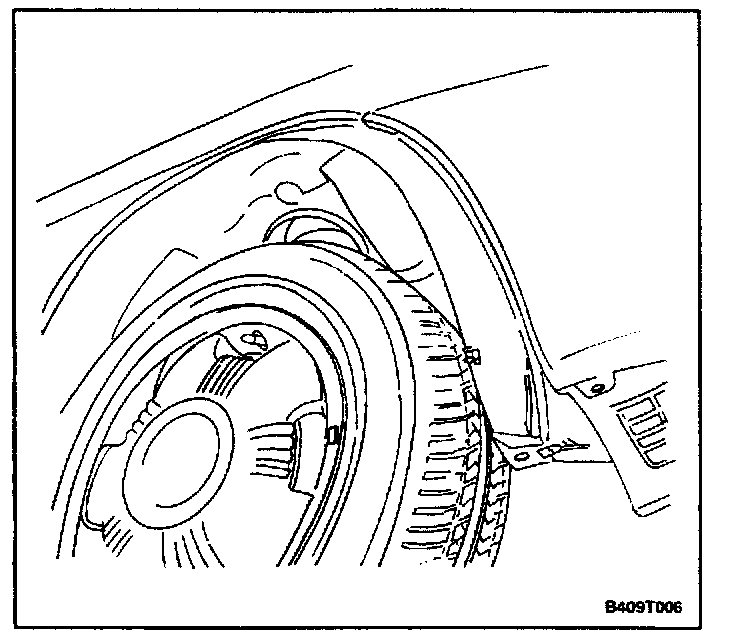

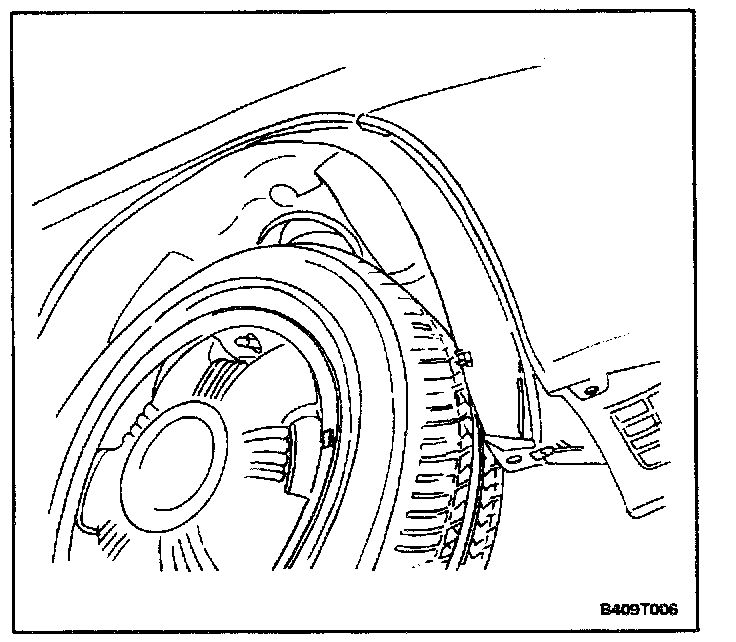

1. Remove several screws to boosen the forward half of the right front wheel well splash shield.




2. Remove the siren electrical connector.

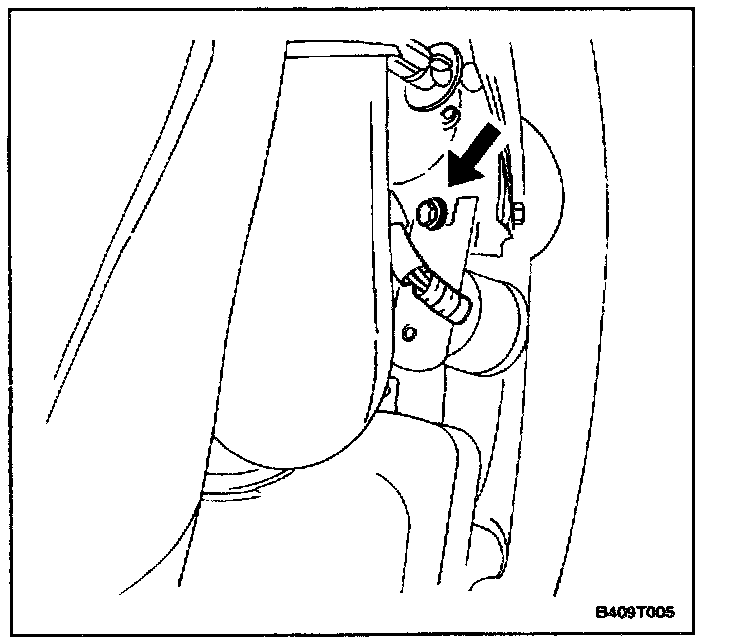

3. Remove the siren bracket mounting bolt.
4. Remove the siren.

Installation Procedure

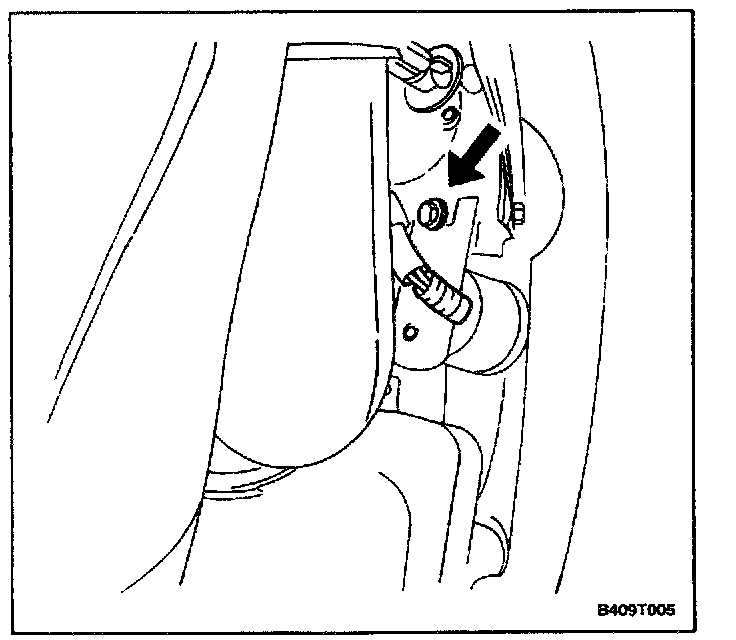

1. Install the siren on the siren bracket with the mounting screws.

Tighten
Tighten the siren bracket mounting bolts to 22 Nm (16 lb.in).




2. Connect the siren electrical connector.
