Hood Open Switch

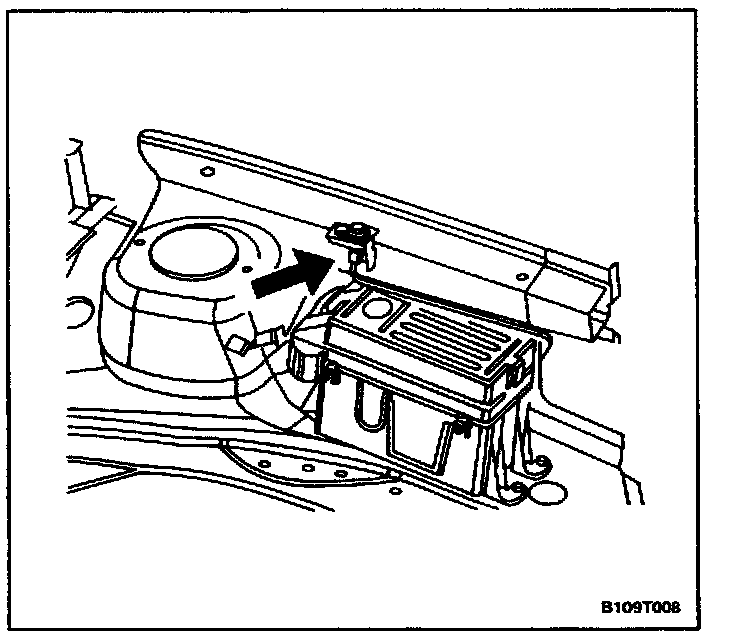

Removal Procedure




1. Disconnect the negative battery cable.
2. Disconnect the electrical connector from the hood open switch.

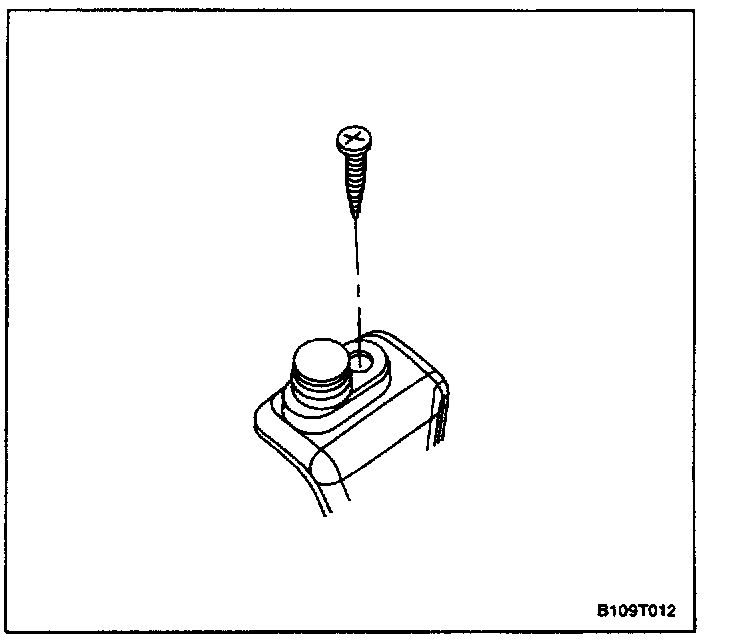

3. Remove the mounting screw from the hood open switch.
4. Remove the hood open switch.

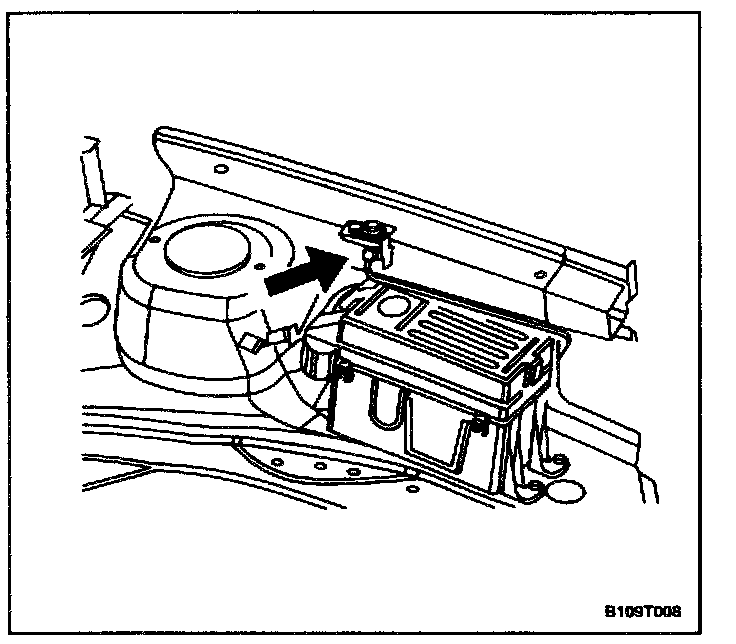

Installation Procedure

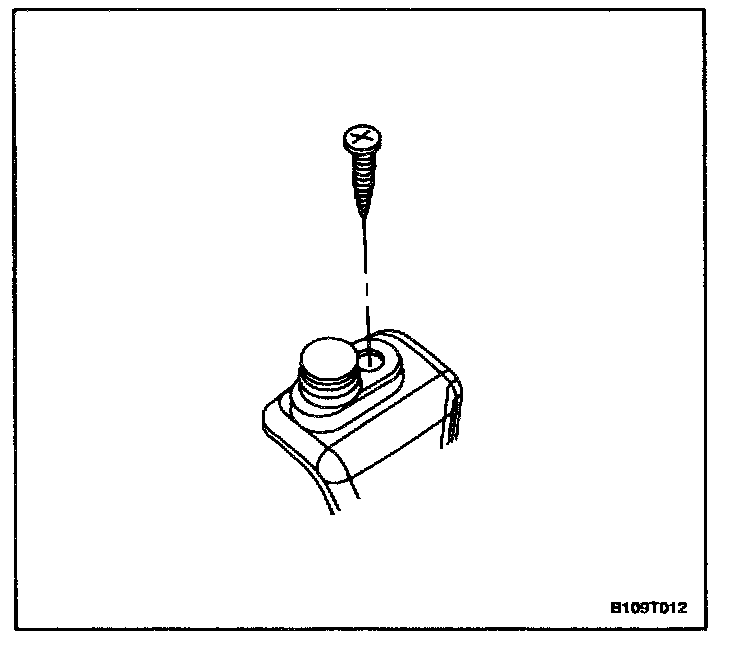

1. Install the hood open switch with the mounting screw.

Tighten
Tighten the hood open switch mounting screw to 4 Nm (35 lb.in).




2. Connect the electrical connector to the hood open switch.
3. Connect the negative battery cable.
