Power Antenna Motor (Notchback)

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the luggage compartment rear quarter trim panel.

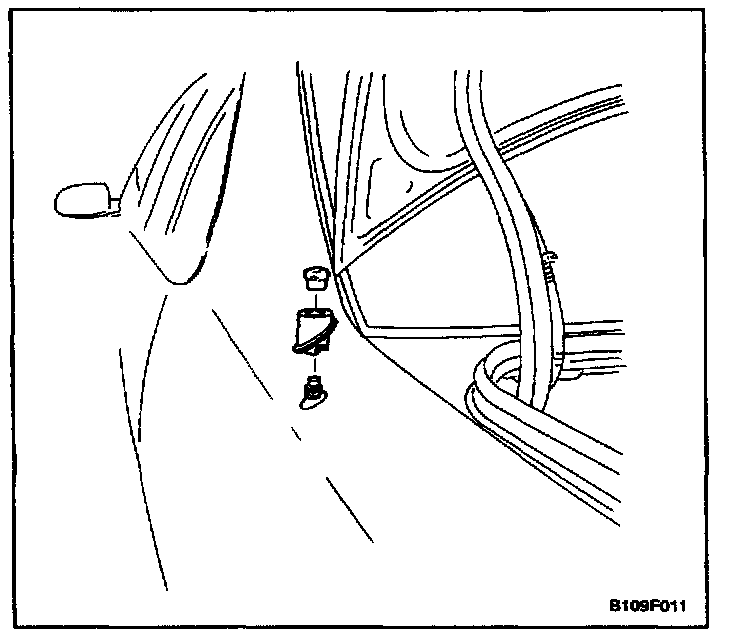

3. Remove the antenna cap nut and the rubber grommet.

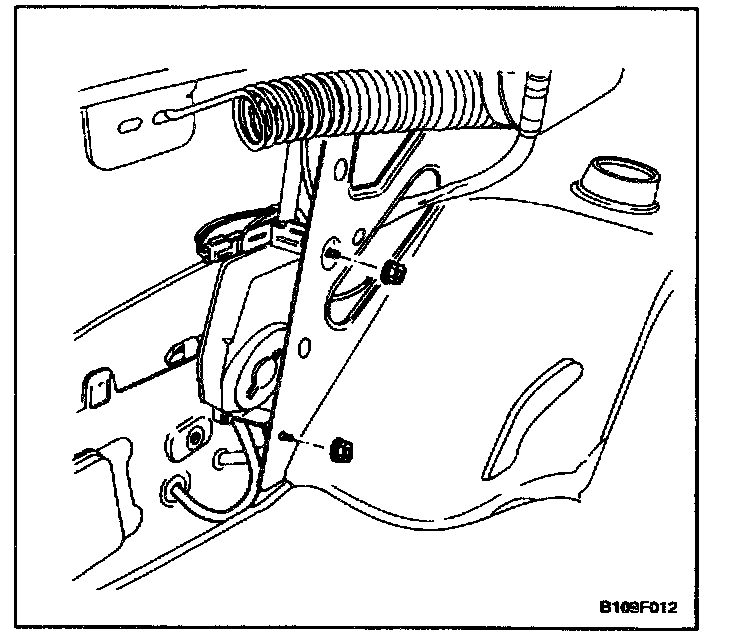

4. Loosen the nuts securing the antenna motor to the vehicle.
5. Remove the antenna motor.
6. Disconnect the electrical connector and the drain hose from the antenna motor.

Installation Procedure




1. Connect the electrical connector and the drain hose to the antenna motor.

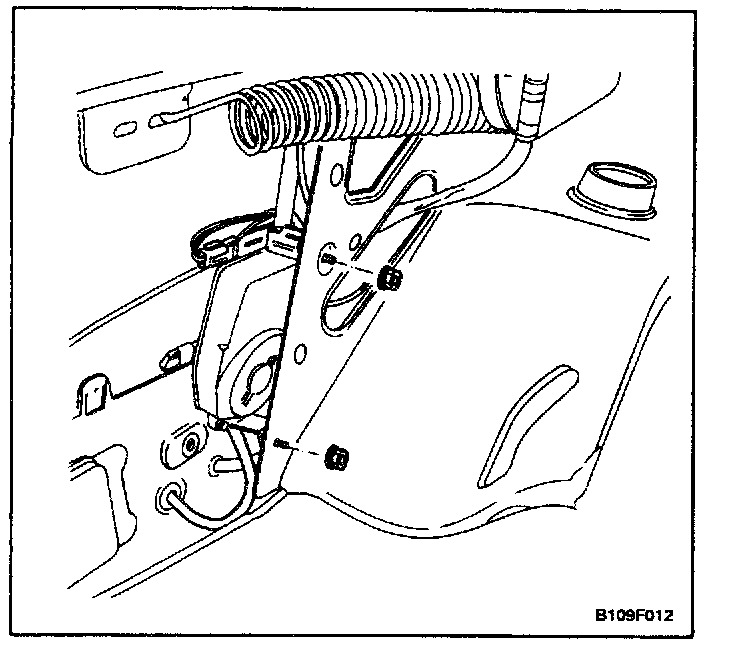

2. Install the antenna motor with the nuts.

Tighten
Tighten the antenna motor nuts to 7 Nm (62 lb.in).




3. Install the antenna cap nut.
4. Install the luggage compartment rear quarter trim panel.

Tighten
Tighten the antenna cap nut to 7 Nm (62 lb.in).

5. Connect the negative battery cable.
