Wheel Alignment




Wheel Alignment

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set at curb height. Refer to Ride Height

All Wheel Drive

AWD:

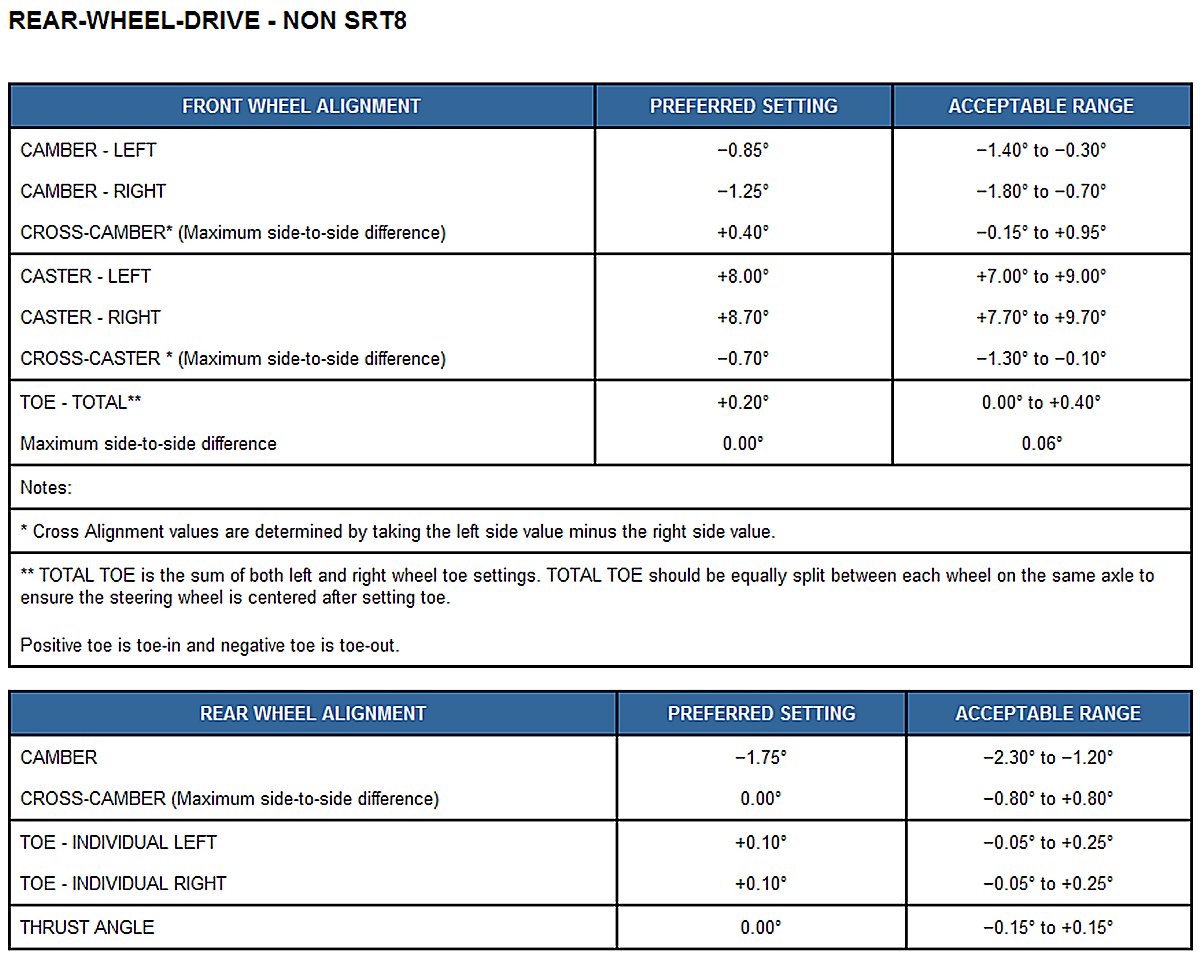

Rear Wheel Drive (NON-SRT8)

RWD Non-SRT8:

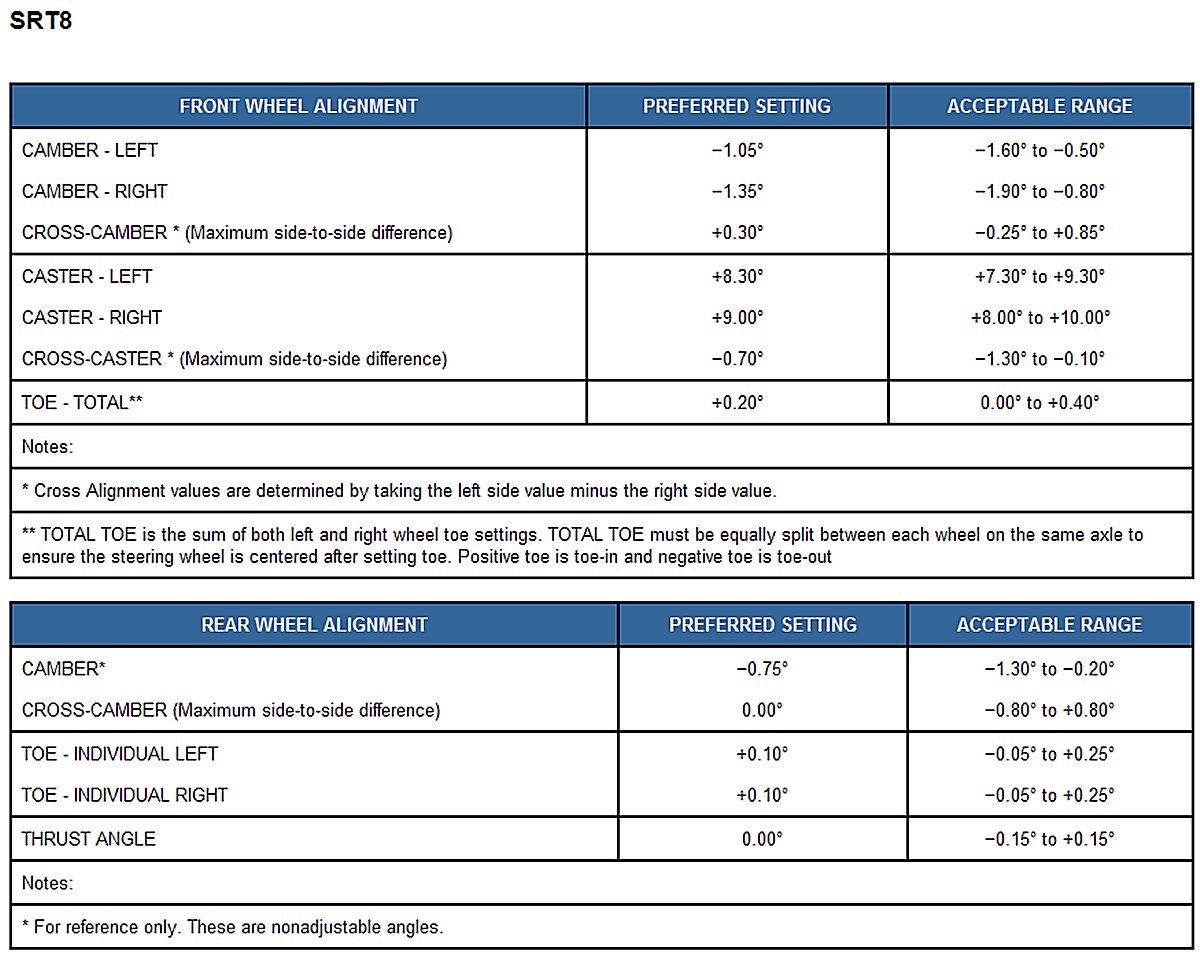

Rear Wheel Drive (SRT8)

SRT8:
