Engine Cooling Radiator - Installation

3.6L







1. Position the radiator into engine compartment. Seat the radiator assembly lower rubber isolators into the mounting holes in radiator lower support.

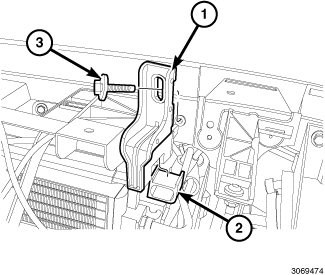

2. Install the radiator mounting bracket (1) and bolts (2). Tighten to 12 N.m (106 in. lbs.).







3. Position the condenser on radiator and loosely install the support bolt.
4. Install upper and lower mounting bolt. Tighten bolts to 10 N.m (88 in. lbs.).
5. Tighten the support bolt to 10 N.m (88 in. lbs.).

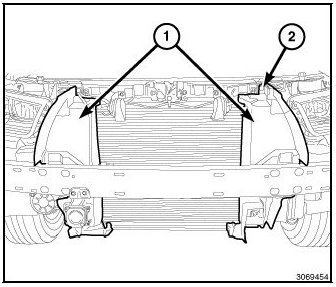

6. Install the air deflectors (1).
7. Position the hood latch release cable (2) through the notch in deflector.







8. Install the front bumper fascia.
9. Raise the vehicle.

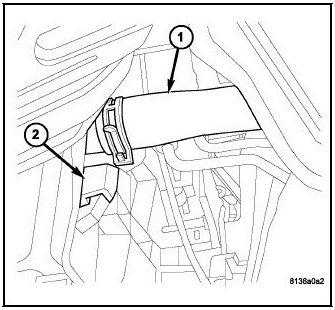

10. Install the lower radiator hose (1) and clamp.

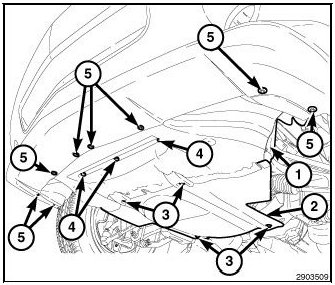

11. Install the lower engine cover.
12. Lower vehicle.







13. Install the radiator fan.

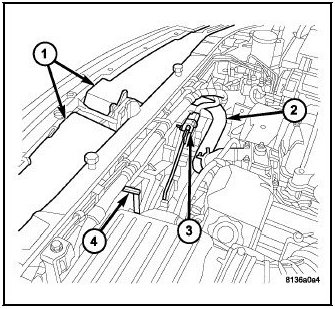

14. Install the upper radiator upper hose (2). Align hose so it does not interfere with the accessory drive belt or engine. Position hose clamp so it will not interfere with the hood.
15. Connect the negative cable.
16. Fill the cooling system with coolant.
17. Operate the engine until it reaches normal operating temperature. Check the cooling system and automatic transmission for the correct fluid levels.
