Windshield Washer Reservoir - Installation

INSTALLATION

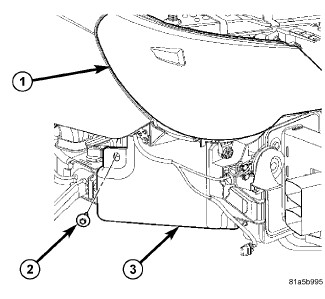

1. Install reservoir and mounting bolts (2).

2. Connect wire connector to washer pump and harness mounting tab.

3. Connect washer fluid hose at in-line connector on top of the right shock tower.

4. If fascia was partially removed, reinstall bumper fascia as needed Front Bumper Fascia - Installation.

5. Fill washer fluid.

6. Connect the battery negative remote cable.
