Wiper and Washer Systems: Testing and Inspection

DIAGNOSIS AND TESTING - WIPER AND WASHER SYSTEM

WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

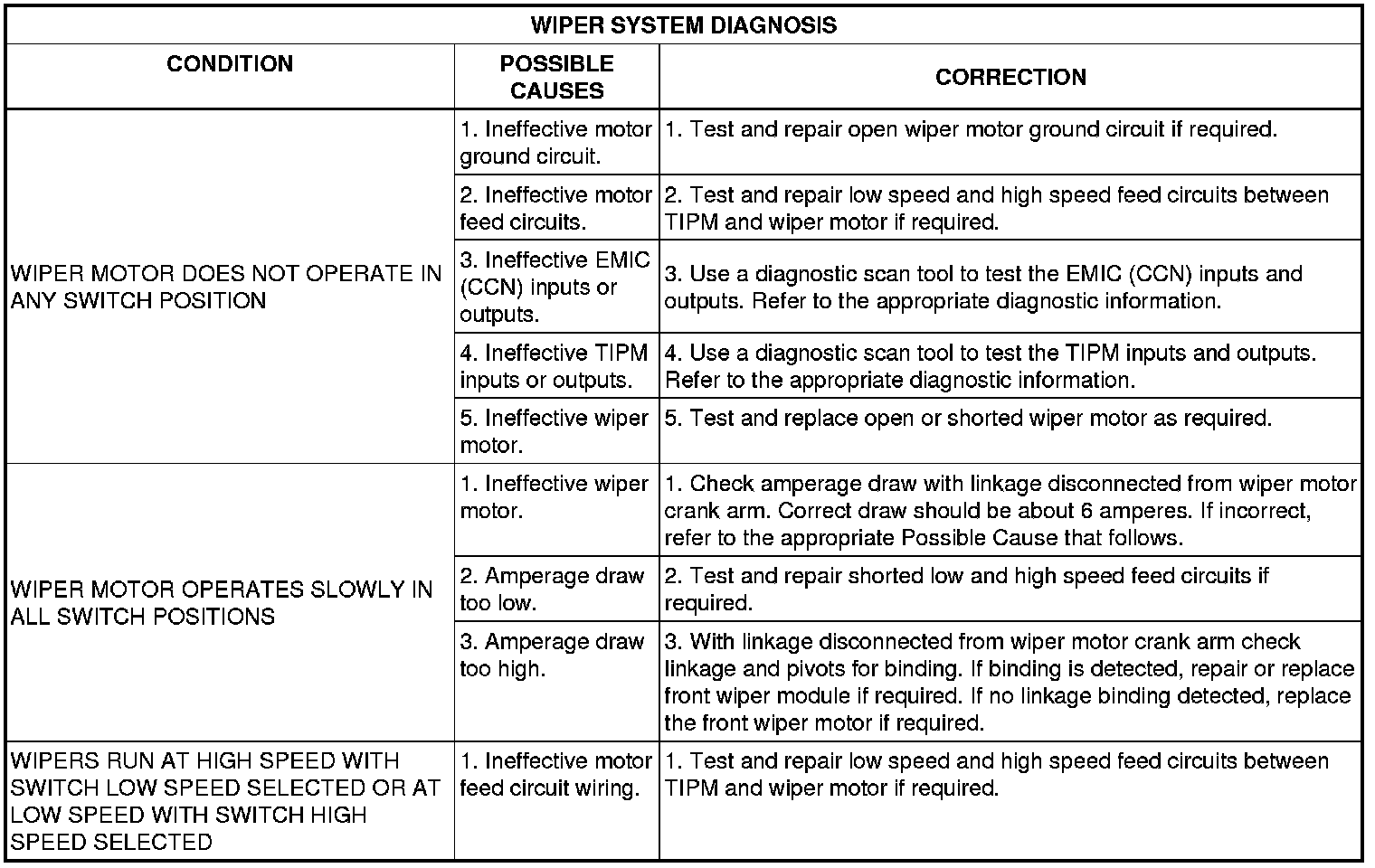

If the wiper motor operates, but the wipers do not move on the windshield, replace the ineffective wiper module. If the washer pump/motor operates, but no washer fluid is dispensed on the glass; or, if the wipers operate, but chatter, lift, or do not clear the glass, clean and inspect the wiper and washer system components as required.

The hard wired wiper and washer system circuits and components may be diagnosed using conventional diagnostic tools and procedures. Refer to the appropriate wiring information. The wiring information includes wiring diagrams, proper wire and connector repair procedures, details of wire harness routing and retention, connector pin out information and location views for the various wire harness connectors, splices and grounds.

However, conventional diagnostic methods will not prove conclusive in the diagnosis of the wiper and washer system or the electronic controls and communication between other modules and devices that provide some features of the wiper and washer system. The most reliable, efficient and accurate means to diagnose the wiper and washer system or the electronic controls and communication related to wiper and washer system operation requires the use of a diagnostic scan tool. Refer to the appropriate diagnostic information.

NOTE:
The wiper and washer switches are integral to the right multi-function switch. The right multi-function switch is hard wired to the left multi-function switch/Steering Control Module (SCM), which communicates with the ElectroMechanical Instrument Cluster (EMIC) (also known as the Cab Compartment Node/CCN) over the Local Interface Network (LIN) data bus. Before performing any of the following tests, determine whether the other functions of the right and left multi-function switch/SCM are operational. If only the right multi-function switch functions are inoperative, test and repair the right multi-function switch or the jumper harness between the right and left multi-function switches before attempting to repair the Wiper and Washer System. If both the right and left multi-function switch/SCM functions are ineffective, diagnose and repair that problem before attempting to repair the Wiper and Washer System.
