Headlamp Washer Nozzle - Installation

INSTALLATION

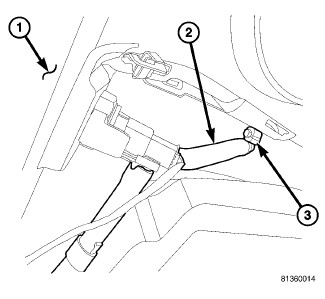

1. Install headlamp washer to front fascia (1).

2. Attach washer hose (2) to headlamp washer fitting (3).

3. Install front fascia (1). Front Bumper Fascia - Installation.

4. Connect battery negative cable.
