Oil Pump Seal - Removal

REMOVAL

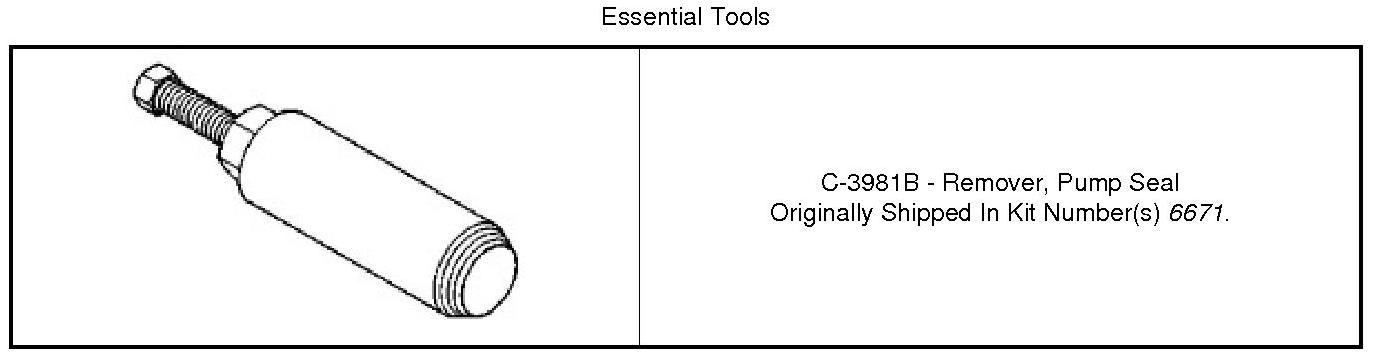

Special Tools:

1. Remove transaxle from vehicle Removal.

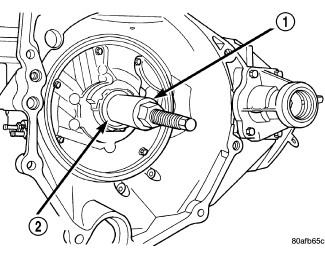

2. Using Seal Puller (C-3981B) (1) , remove oil pump seal (2).
