Oil Pump Seal - Installation







INSTALLATION

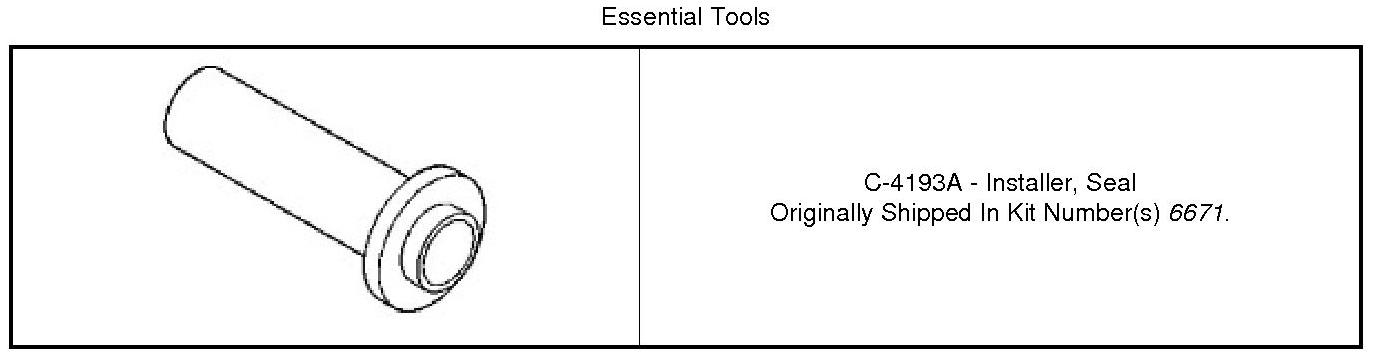

Special Tools:

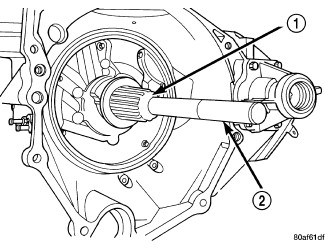

1. Using Seal Installer (C-4193A) (1) , install oil pump seal.

2. Install transaxle to vehicle Installation.
