Left

LEFT

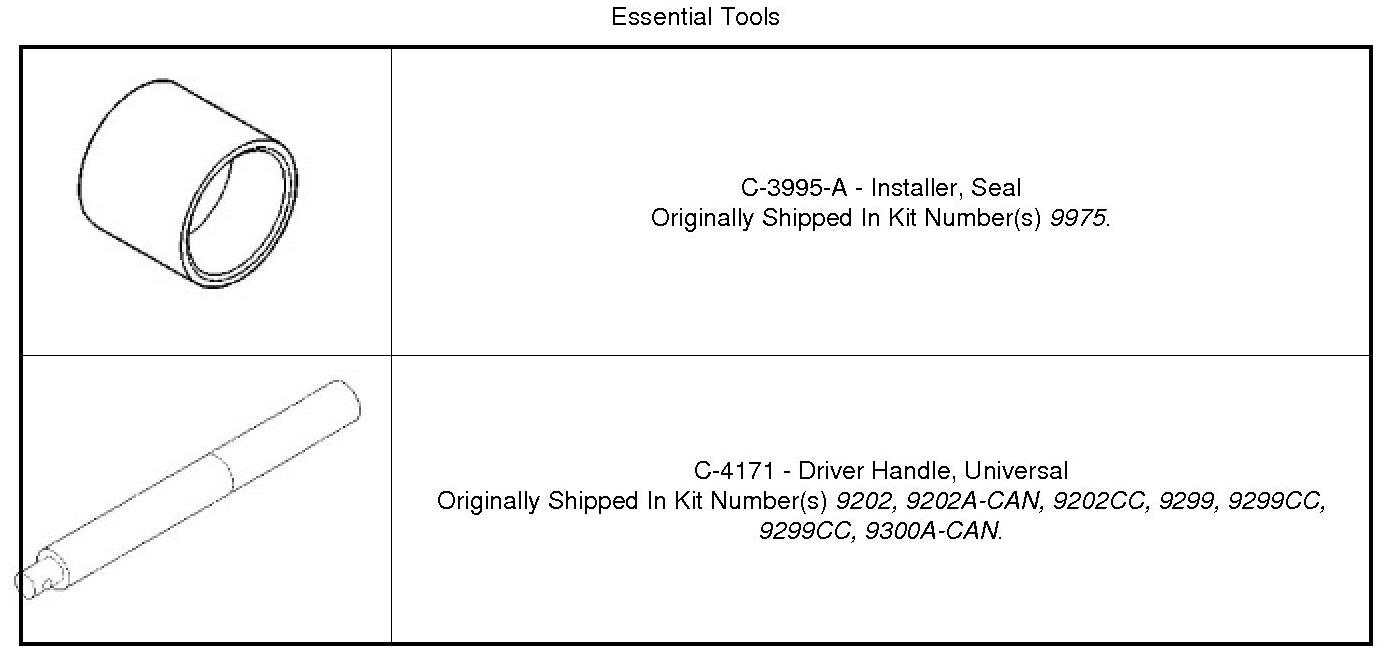

Special Tools:











1. Clean the axle shaft seal bores.

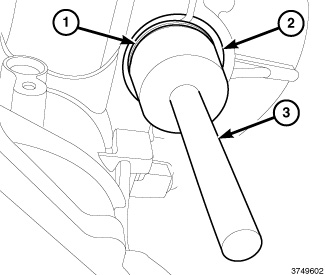

2. Install the seal (1) using (C-3995-A) (2), and (C-4171) (3).

3. Tap the seal into position until firmly seated against the transaxle case.

4. Install the axle shaft Half Shaft - Installation.

5. Check transaxle fluid level and adjust as necessary.
