Transmission Oil Pump - Description

DESCRIPTION

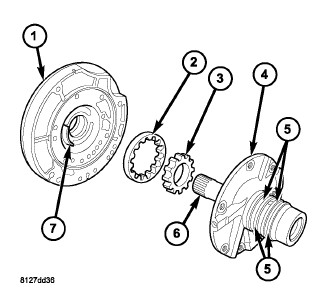

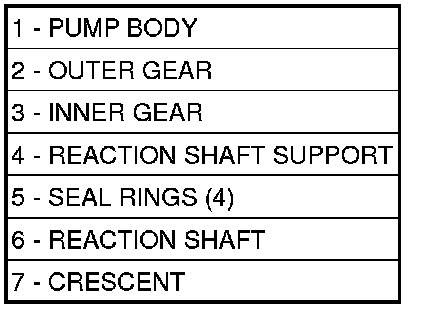

The oil pump is located in the pump housing inside the bell housing of the transaxle case INTXREF. The oil pump consists of an inner and outer gear, a housing, and a cover that also serves as the reaction shaft support.
