Planetary Geartrain - Description







DESCRIPTION

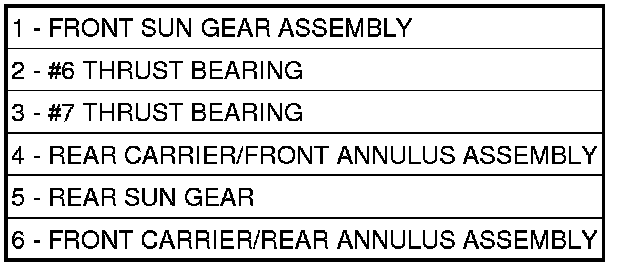

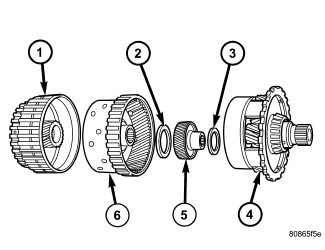

The planetary geartrain is located between the input clutch assembly and the rear of the transaxle case. The planetary geartrain consists of two sun gears (1,5) , two planetary carriers, two annulus (ring) gears (4,6), and one output shaft.
