Supply Hose

3.6L ENGINE

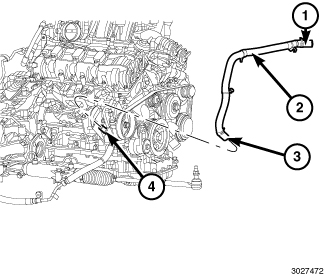

1. Place the pump end of the supply hose onto the pump (4) supply fitting. Expand the hose clamp (3) and slide it over the hose and pump supply fitting. Secure the clamp once it is past the bead formed into the fluid supply fitting.

2. Lower the vehicle.

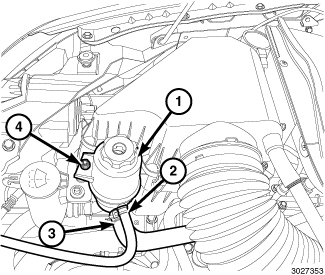

3. Place the reservoir end of the supply hose onto the reservoir (1) supply fitting. Expand the hose clamp (3) and slide it over the hose and supply fitting. Secure the clamp once it is past the bead formed into the fitting.

4. Fill and bleed the power steering system .

5. Check for leaks.
