Power Window Switch - Removal

REMOVAL

FRONT DOOR

1. Disconnect and isolate the negative battery cable.

2. Remove door trim panel Front Door Trim Panel - Removal.

3. Disconnect switch wire connector.

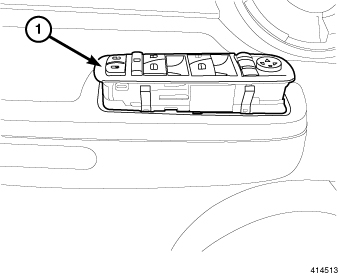

4. Remove switch assembly (1).





REAR DOOR

1. Disconnect and isolate the negative battery cable.

2. Remove the interior handle Rear Exterior Door Handle - Removal.

3. Disconnect the electrical connector.

4. Remove the switch from the handle.
