Chime/Buzzer - Brake/Park Brake Indicator

BRAKE/PARK BRAKE INDICATOR

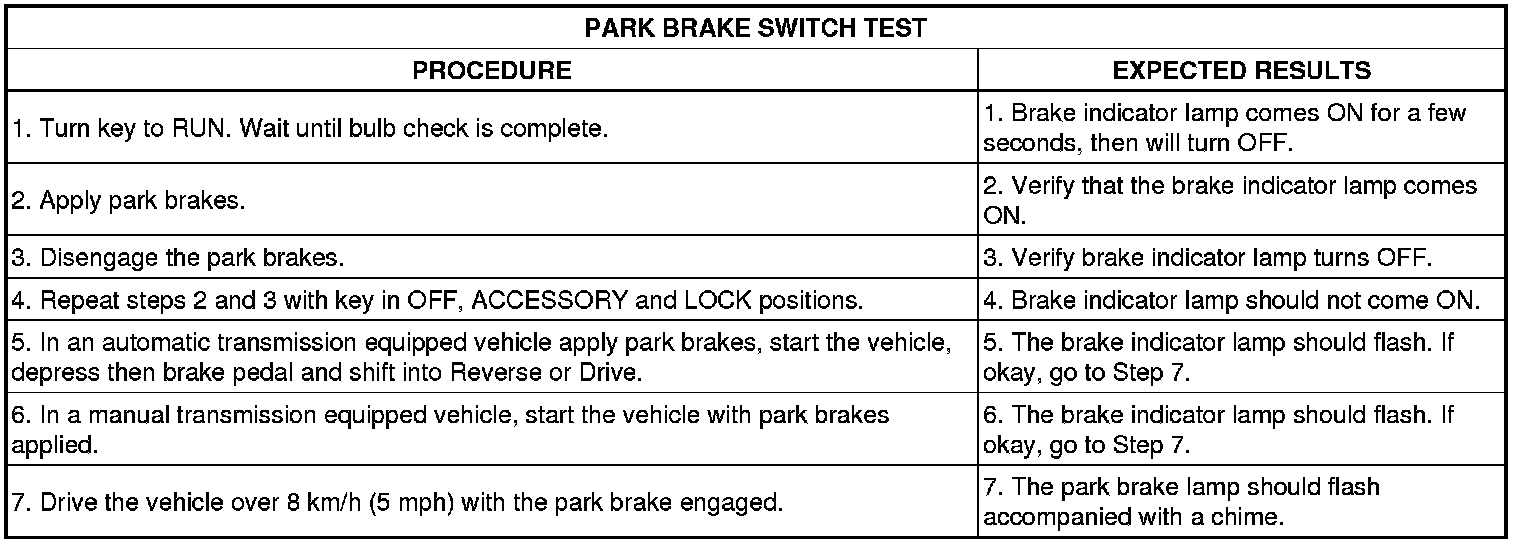

The brake/park brake indicator illuminates when the parking brake is applied with the ignition switch turned to the ON position. Refer to the Park Brake Switch Test table. The same lamp will also illuminate if one of the two (hydraulic or ABS) service brake systems fail when the brake pedal is applied.
